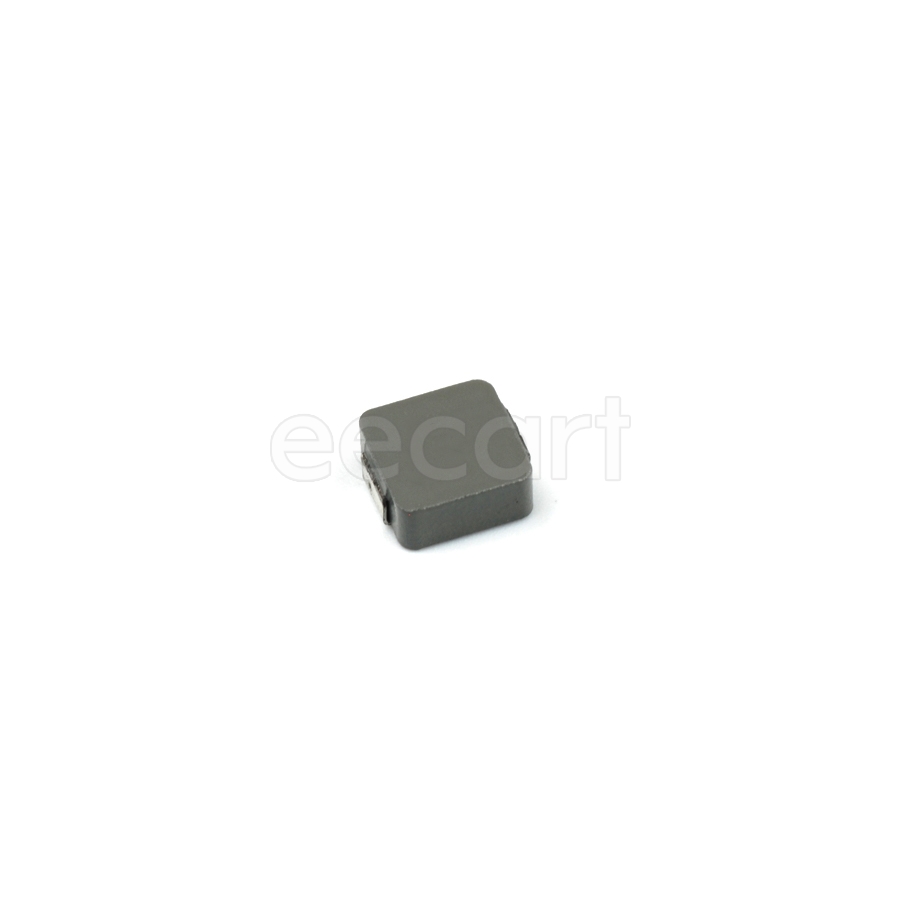

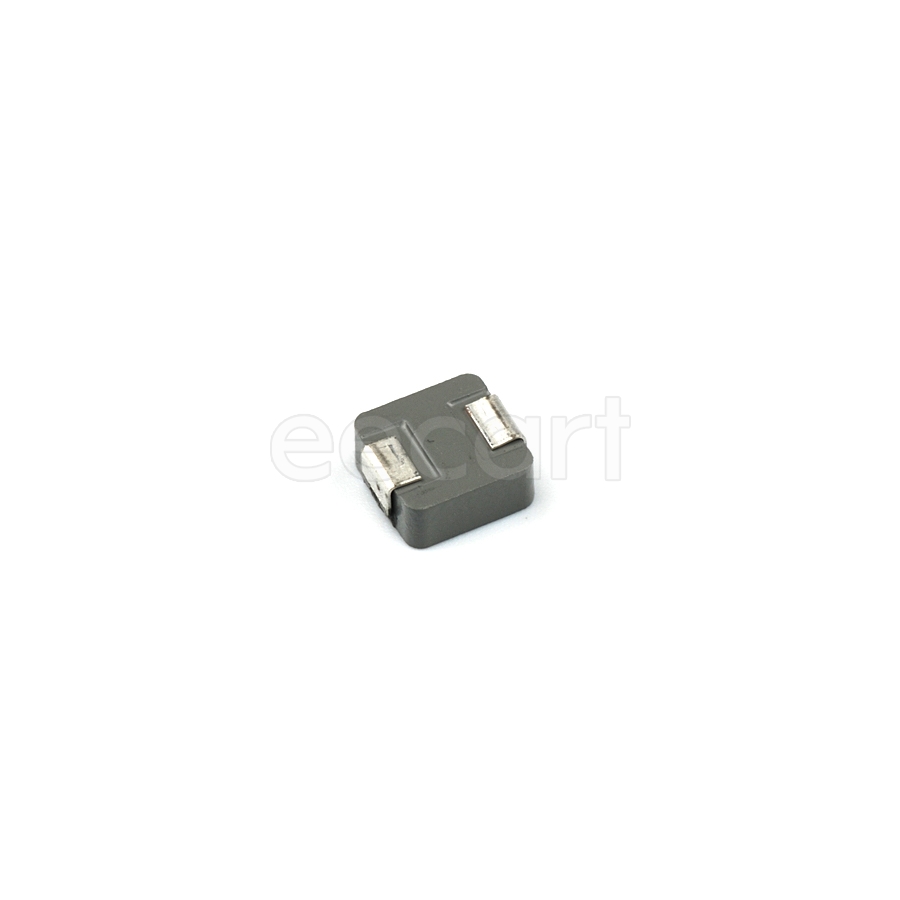

SRP7028A-2R2M
Manufacturer:
Bourns
Mfr.Part #:
SRP7028A-2R2M
Datasheet:
Description:
Fixed Inductors 7.30mmL×6.60mmW×3.00mmH SMD/SMT 2.2 µH 20 % 8 A 20 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 3 mm |
| Length | 7.3 mm |
| Width | 6.604 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Height | 2.8 mm |
| Packaging | Reel |
| Depth | 6.6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Ratings | AEC-Q200 |
| Contact Plating | Tin |
| Self Resonant Frequency | 32 MHz |
| Q Factor | 20 |
| Current Rating | 8 A |
| DC Resistance (DCR) | 20 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 2.2 µH |
| Core Material | Carbonyl Powder, Ferrite |
| RMS Current (Irms) | 8 A |
| inductance tolerance | 20 % |
| Max DC Current | 8 A |
| DC Current | 8 A |
| Saturation Current | 14 A |
| Schedule B | 8504500000 |
| Composition(Kit Type) | Wirewound |
| Type | Wirewound |
Stock: 495
Distributors
pcbx
pcbxUnit Price$0.47798
Ext.Price$0.47798
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.47798 | $0.47798 |
| 10 | $0.37498 | $3.74980 |
| 25 | $0.33989 | $8.49725 |
| 50 | $0.30809 | $15.40450 |
| 100 | $0.27926 | $27.92600 |
| 300 | $0.26691 | $80.07300 |
| 500 | $0.25511 | $127.55500 |
| 1000 | $0.23998 | $239.98000 |
