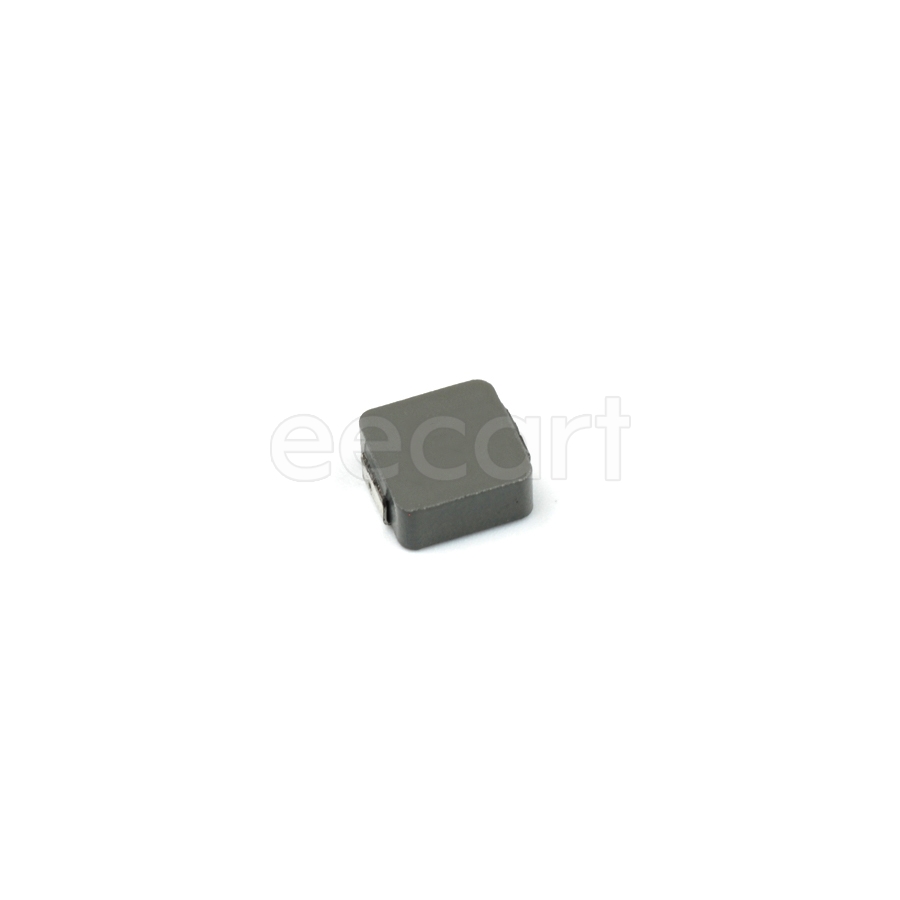

SRP7028A-2R5M
Manufacturer:
Bourns
Mfr.Part #:
SRP7028A-2R5M
Datasheet:
Description:
Fixed Inductors 4.50mmL×4.50mmW×2.50mmH SMD/SMT 2.5 µH 20 % 7 A 22 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 3 mm |
| Length | 7.3 mm |
| Width | 6.6 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Height | 2.8 mm |
| Packaging | Reel |
| Depth | 6.6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Ratings | AEC-Q200 |
| Self Resonant Frequency | 30 MHz |
| Q Factor | 20 |
| Current Rating | 7 A |
| DC Resistance (DCR) | 22 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Inductance | 2.5 µH |
| Core Material | Carbonyl Powder, Ferrite |
| RMS Current (Irms) | 7 A |
| inductance tolerance | 20 % |
| Max DC Current | 7 A |
| Saturation Current | 13 A |
| Composition(Kit Type) | Wirewound |
| Type | Wirewound |
Stock: 61
Distributors
pcbx
pcbxUnit Price$1.24068
Ext.Price$1.24068
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.24068 | $1.24068 |
| 10 | $1.03783 | $10.37830 |
| 25 | $0.92658 | $23.16450 |
