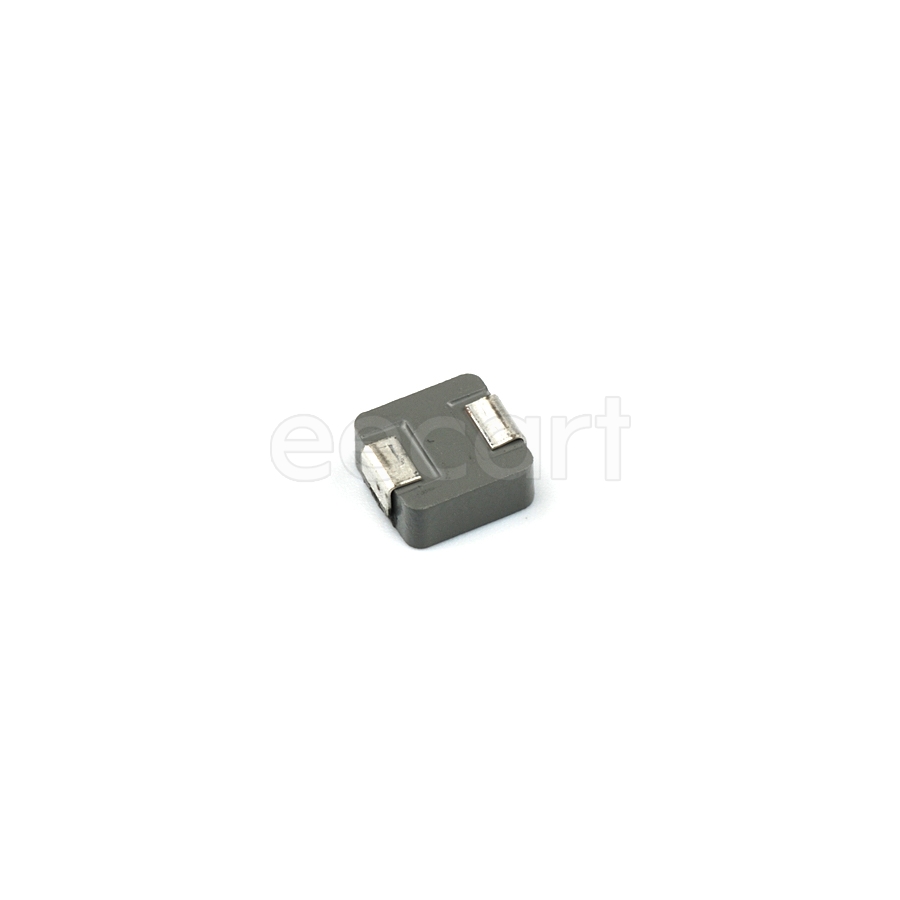

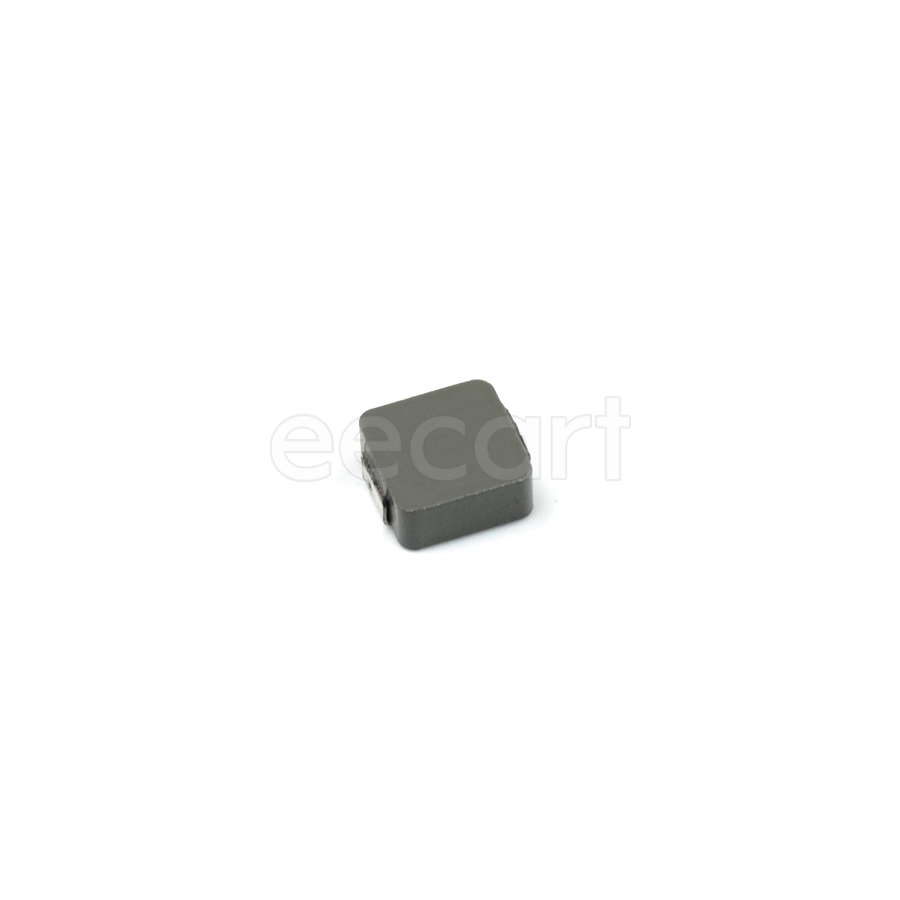

SRP7030-100FM
Manufacturer:
Bourns
Mfr.Part #:
SRP7030-100FM
Datasheet:
Description:
Fixed Inductors 7.60mmL×6.50mmW×3.20mmH SMD/SMT 10 µH 20 % 3.5 A 60 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 3.2 mm |
| Length | 7.6 mm |
| Width | 6.5024 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Height | 3.2 mm |
| Packaging | Reel |
| Depth | 6.7 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Current Rating | 3.5 A |
| DC Resistance (DCR) | 60 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 10 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 3.5 A |
| inductance tolerance | 20 % |
| Max DC Current | 3.5 A |
| DC Current | 3.5 A |
| Saturation Current | 5 A |
| Schedule B | 8504500000 |
| Composition(Kit Type) | Wirewound |
| Type | Molded |
