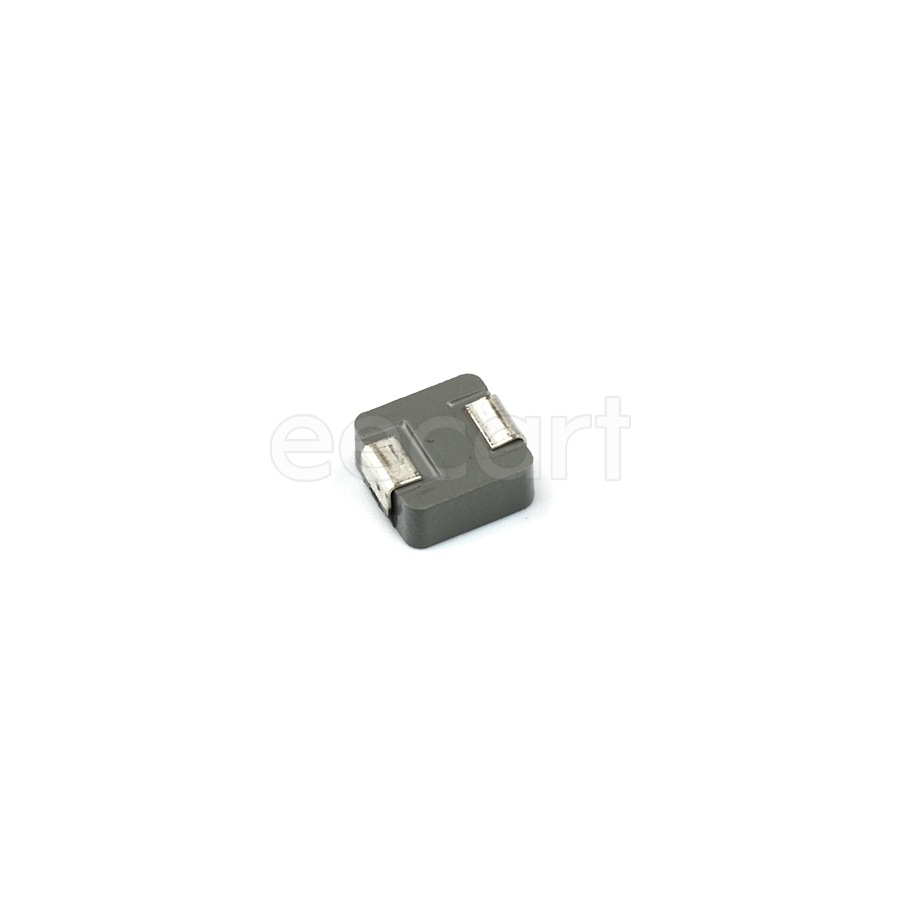

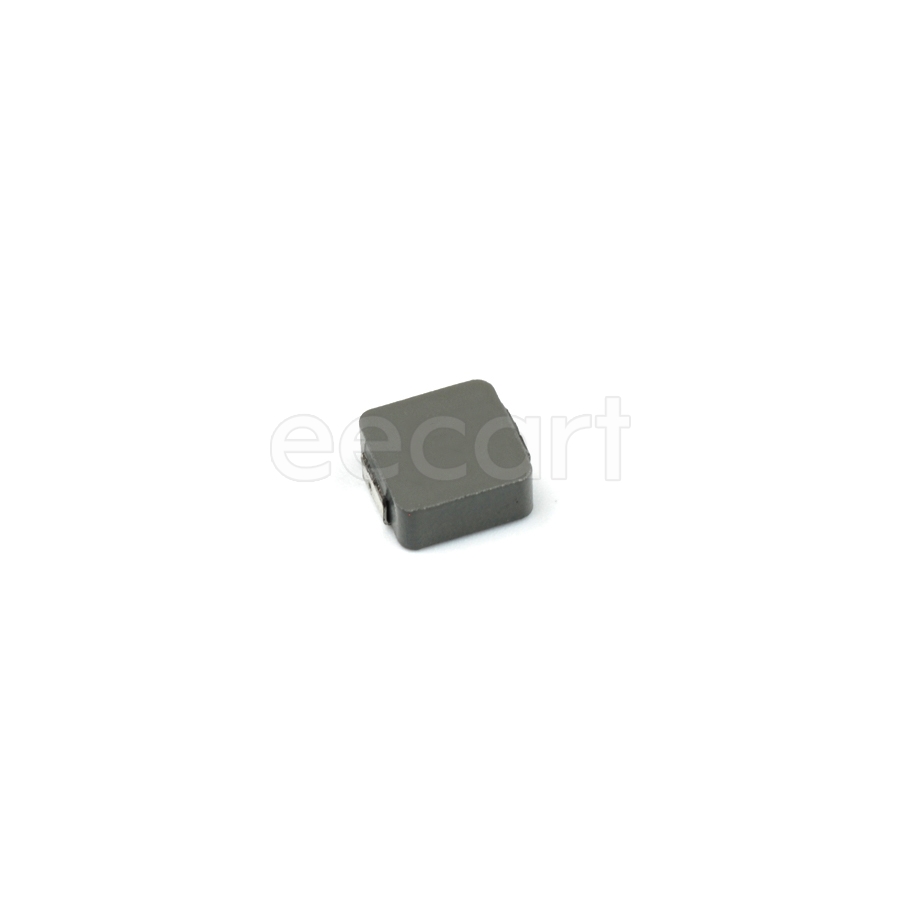

SRP7030-1R0M
Manufacturer:
Bourns
Mfr.Part #:
SRP7030-1R0M
Datasheet:
Description:
Fixed Inductors 7.80mmL×7.00mmW×3.20mmH SMD/SMT 1 µH 20 % 11 A 10 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 3.2 mm |
| Length | 7.8 mm |
| Width | 7 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Resistance | 10 MΩ |
| Height | 3.2 mm |
| Material | Ferrite |
| Packaging | Reel |
| Depth | 7 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Current Rating | 11 A |
| DC Resistance (DCR) | 10 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 1 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 11 A |
| inductance tolerance | 20 % |
| Max DC Current | 11 A |
| DC Current | 11 A |
| Saturation Current | 15 A |
| Schedule B | 8504500000 |
| Composition(Kit Type) | Wirewound |
| Type | Wirewound |
Stock: 49
Distributors
pcbx
pcbxUnit Price$0.76944
Ext.Price$0.76944
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.76944 | $0.76944 |
| 10 | $0.63180 | $6.31800 |
| 25 | $0.60529 | $15.13225 |
| 50 | $0.51070 | $25.53500 |
| 100 | $0.43089 | $43.08900 |
| 300 | $0.42138 | $126.41400 |
| 500 | $0.41207 | $206.03500 |
| 1000 | $0.34283 | $342.83000 |
