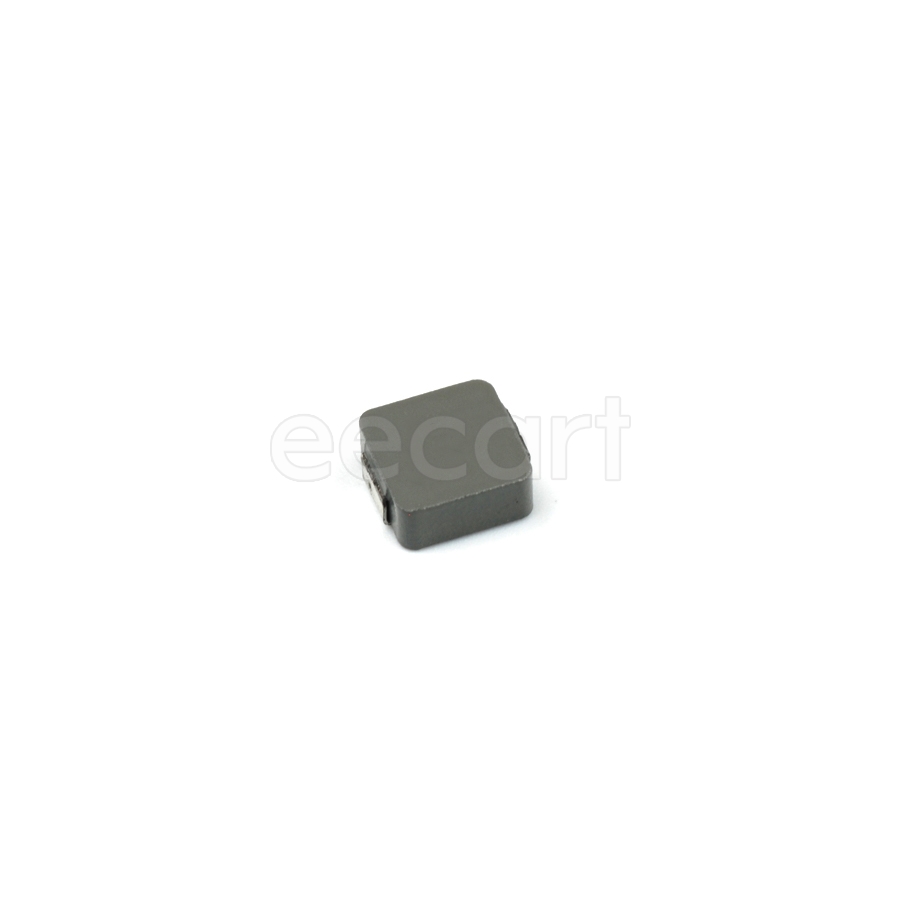

SRP7030-4R7FM
Manufacturer:
Bourns
Mfr.Part #:
SRP7030-4R7FM
Datasheet:
Description:
Fixed Inductors 7.60mmL×6.50mmW×3.00mmH SMD/SMT 4.7 µH 20 % 5 A 35 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 3 mm |
| Length | 7.6 mm |
| Width | 6.5024 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Height | 3 mm |
| Packaging | Reel |
| Depth | 6.7 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Current Rating | 5 A |
| DC Resistance (DCR) | 35 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 4.7 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 5 A |
| inductance tolerance | 20 % |
| Max DC Current | 5 A |
| DC Current | 5 A |
| Saturation Current | 7 A |
| Composition(Kit Type) | Wirewound |
| Type | Molded |
