SRR0603-102KL
Manufacturer:
Bourns
Mfr.Part #:
SRR0603-102KL
Datasheet:
Description:

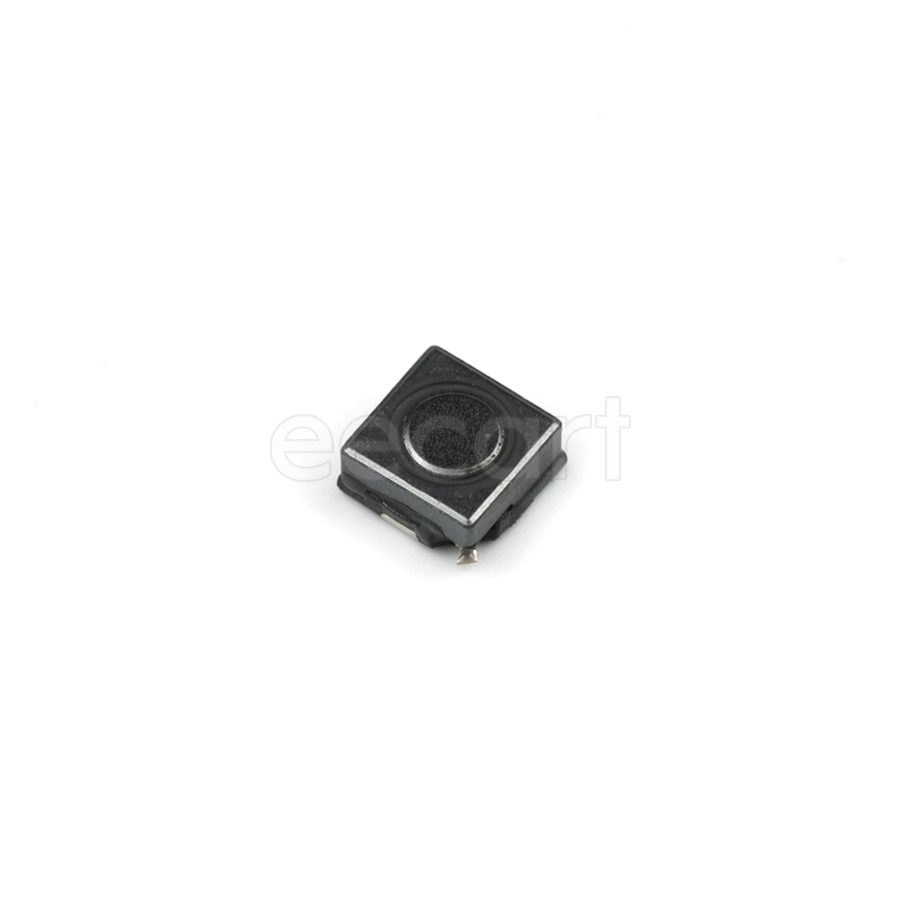

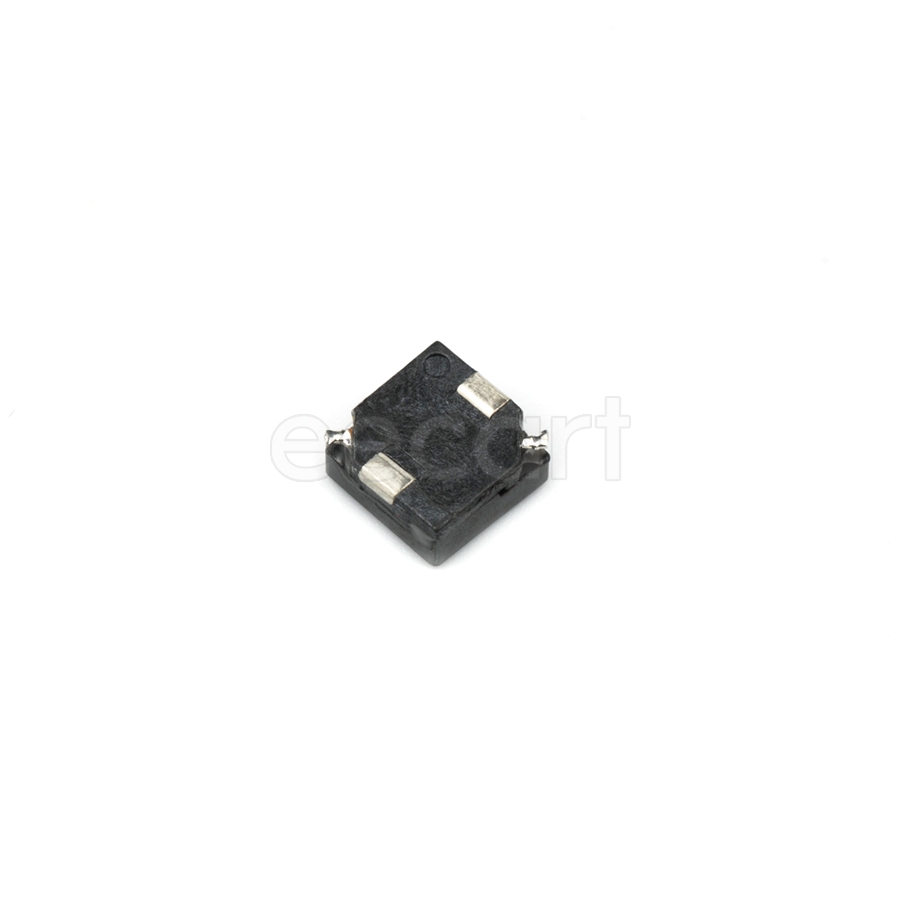

Fixed Inductors 6.50mmL×6.50mmW×3.30mmH SMD/SMT 1 mH 10 % 100 mA 14 Ω
| Parameter | Value |
|---|---|
| Tolerance | 10 % |
| Height - Seated (Max) | 3.3 mm |
| Length | 6.5024 mm |
| Width | 6.5024 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Number of Pins | 2 |
| Height | 3.3 mm |
| Packaging | Reel |
| Depth | 6.7 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 3 MHz |
| Q Factor | 20 |
| Current Rating | 100 mA |
| DC Resistance (DCR) | 14 Ω |
| Test Frequency | 1 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 1 mH |
| Core Material | Ferrite |
| RMS Current (Irms) | 100 mA |
| inductance tolerance | 10 % |
| Max DC Current | 100 mA |
| DC Current | 100 mA |
| Saturation Current | 130 mA |
| Schedule B | 8504500000 |
| Composition(Kit Type) | Wirewound |
| Type | Wirewound |
