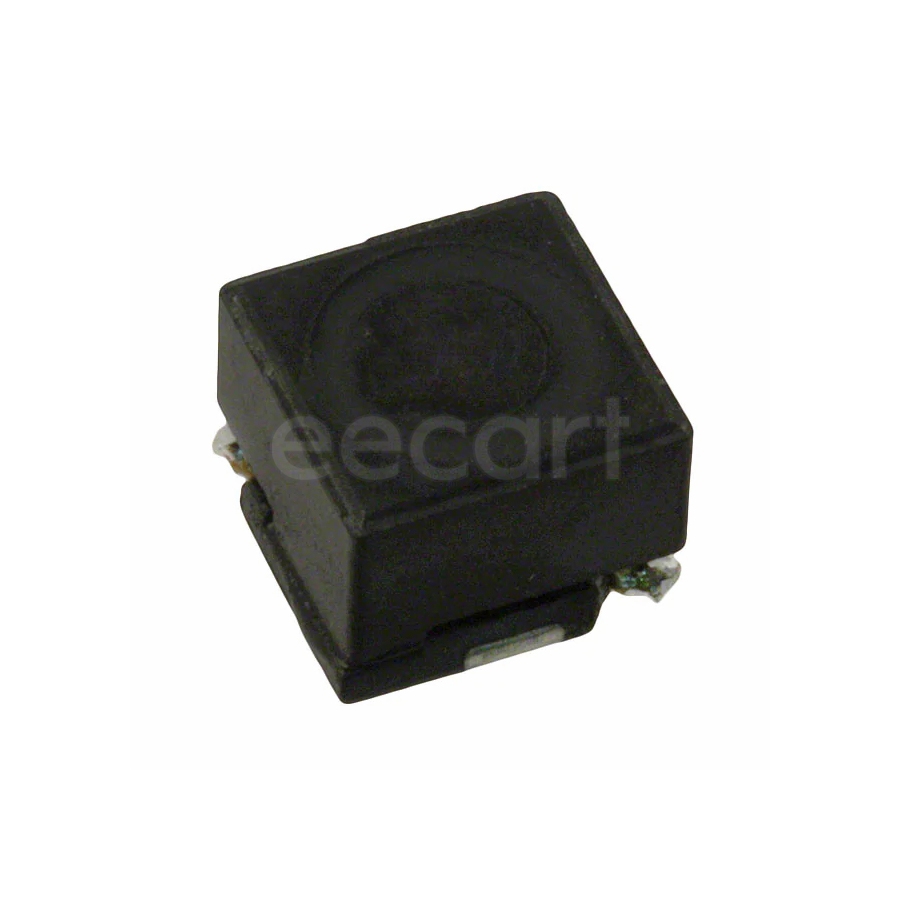

SRR0604-2R5ML
Manufacturer:
Bourns
Mfr.Part #:
SRR0604-2R5ML
Datasheet:
Description:
Fixed Inductors 6.50mmL×6.50mmW×4.80mmH SMD/SMT 2.5 µH 20 % 2.5 A 35 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 4.8 mm |
| Length | 6.5 mm |
| Width | 6.5 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Resistance | 35 MΩ |
| Height | 4.8 mm |
| Material | Steel |
| Packaging | Reel |
| Depth | 6.7 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Frequency | 100 MHz |
| Self Resonant Frequency | 100 MHz |
| Q Factor | 21 |
| Current Rating | 2.5 A |
| DC Resistance (DCR) | 35 mΩ |
| Test Frequency | 1 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 2.5 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 2.5 A |
| inductance tolerance | 20 % |
| Max DC Current | 2.5 A |
| DC Current | 2.5 A |
| Saturation Current | 3.5 A |
| Schedule B | 8504500000 |
| Composition(Kit Type) | Wirewound |
| Type | Wirewound |
Stock: 2306
Distributors
pcbx
pcbxUnit Price$0.44456
Ext.Price$0.44456
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.44456 | $0.44456 |
| 10 | $0.36762 | $3.67620 |
| 25 | $0.34454 | $8.61350 |
| 50 | $0.32291 | $16.14550 |
| 100 | $0.30264 | $30.26400 |
| 300 | $0.29790 | $89.37000 |
| 500 | $0.29324 | $146.62000 |
| 1000 | $0.23083 | $230.83000 |
