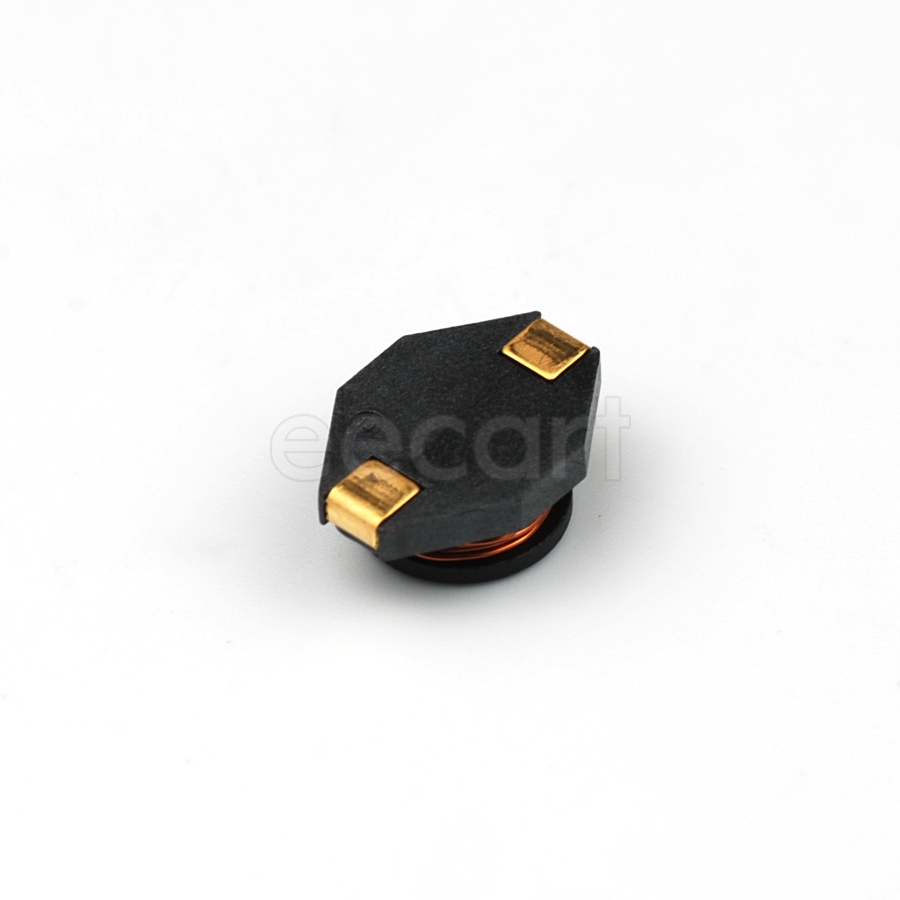

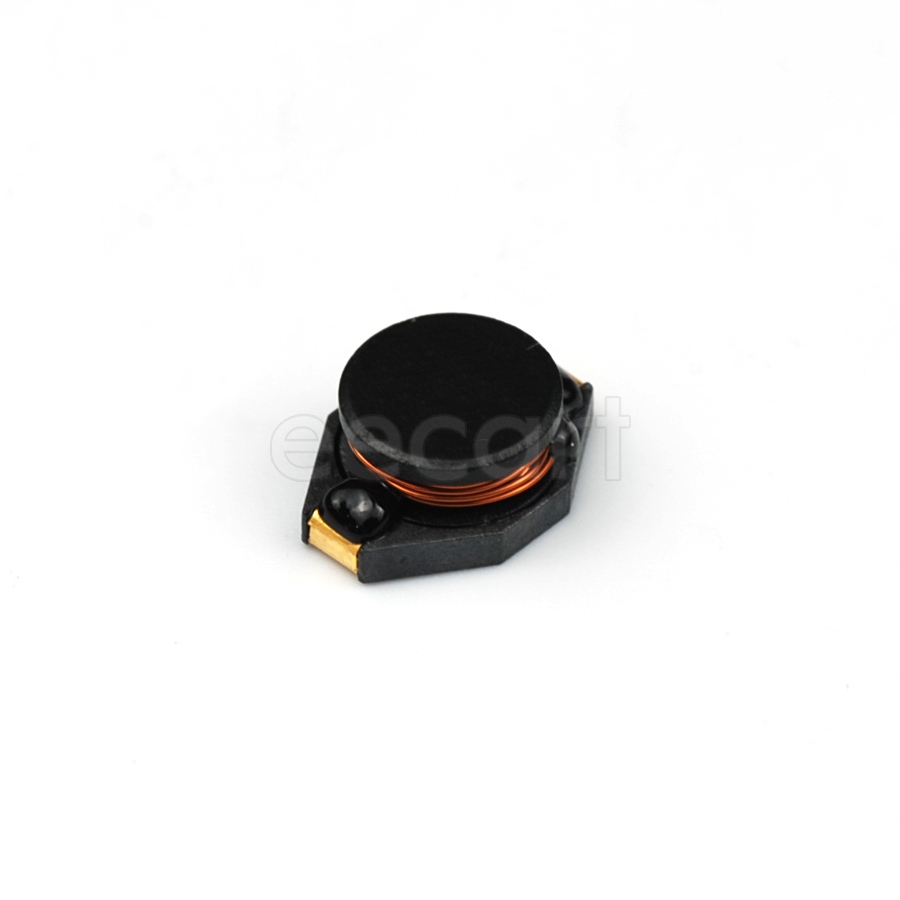

SRR1005-4R7M
Manufacturer:
Bourns
Mfr.Part #:
SRR1005-4R7M
Datasheet:
Description:
Fixed Inductors 12.70mmL×10.00mmW×5.21mmH SMD/SMT 4.7 µH 20 % 2.5 A 40 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 5.2 mm |
| Length | 12.7 mm |
| Width | 10 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Resistance | 40 mΩ |
| Composition(Kit Type) | Wirewound |
| Height | 5.2 mm |
| Material | Steel |
| Depth | 10.2 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Frequency | 50 MHz |
| Self Resonant Frequency | 50 MHz |
| Q Factor | 25 |
| Current Rating | 2.5 A |
| DC Resistance (DCR) | 40 mΩ |
| Test Frequency | 1 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 4.7 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 2.5 A |
| inductance tolerance | 20 % |
| Max DC Current | 2.5 A |
| DC Current | 2.5 A |
| Saturation Current | 3.8 A |
| Schedule B | 8504500000 |
| RoHS | Compliant |
| Packaging | Reel |
| Type | Wirewound |
Stock: 2
Distributors
pcbx
pcbxUnit Price$1.07491
Ext.Price$1.07491
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.07491 | $1.07491 |
| 10 | $0.89750 | $8.97500 |
| 25 | $0.82464 | $20.61600 |
| 50 | $0.75769 | $37.88450 |
| 100 | $0.69617 | $69.61700 |
| 300 | $0.63999 | $191.99700 |
| 500 | $0.58835 | $294.17500 |
| 1000 | $0.54087 | $540.87000 |
