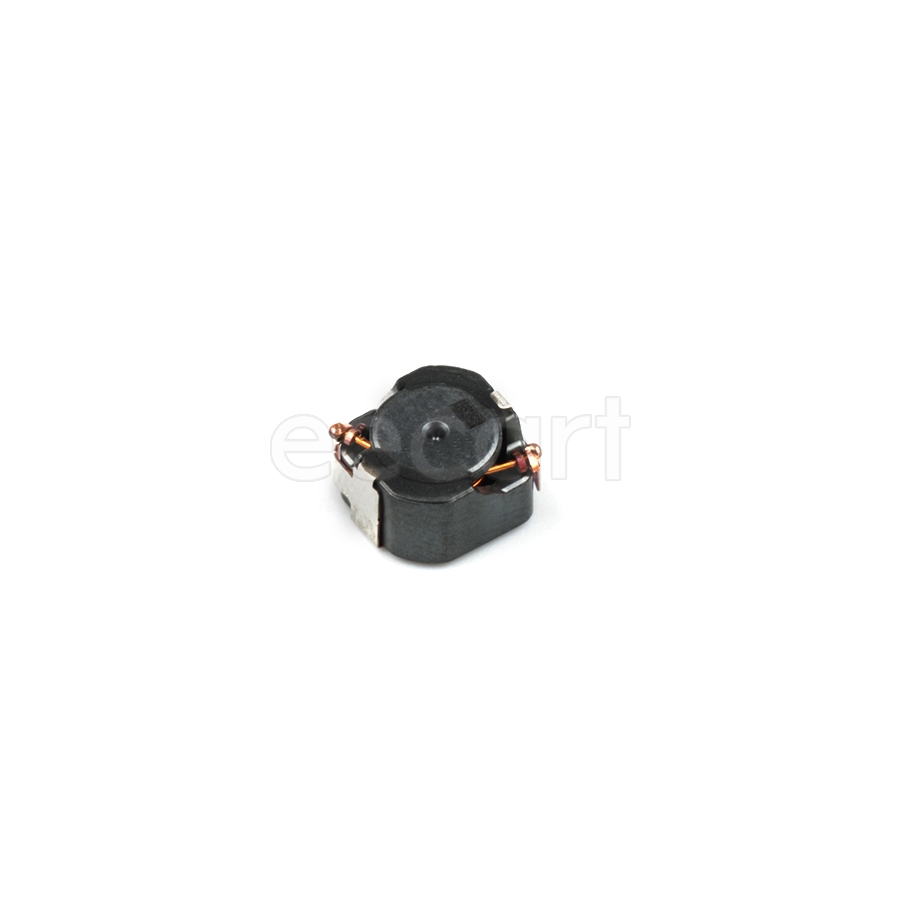

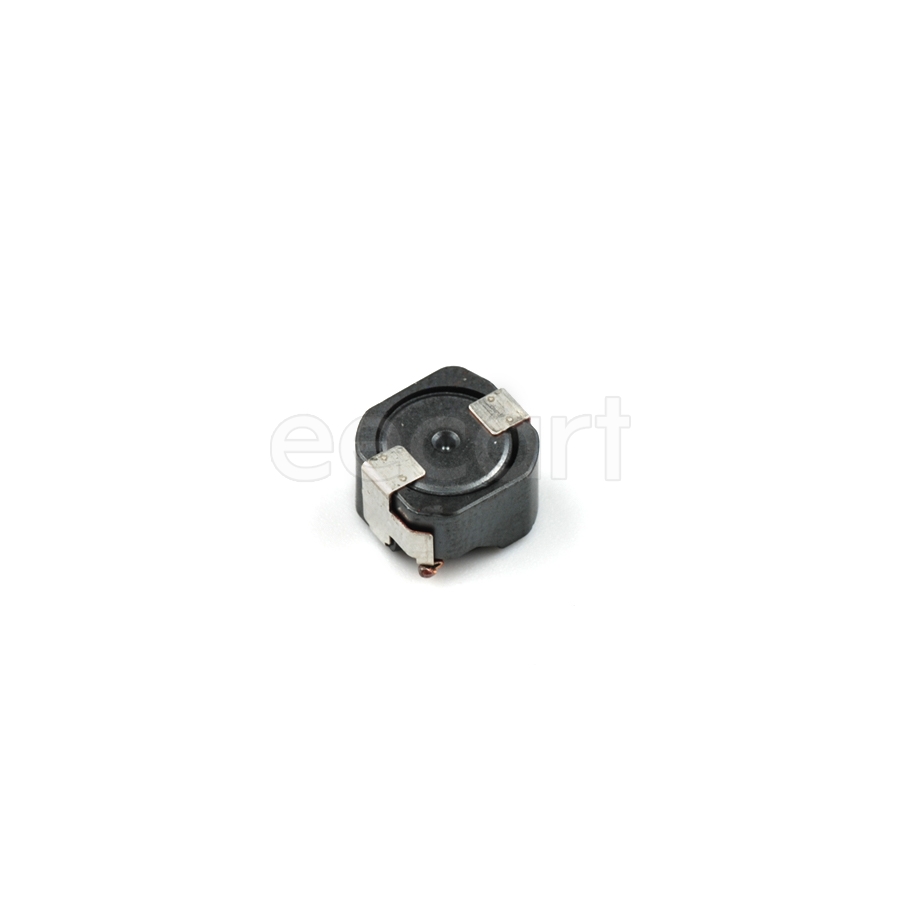

SRR1050A-2R2Y
Manufacturer:
Bourns
Mfr.Part #:
SRR1050A-2R2Y
Datasheet:
Description:
Fixed Inductors 10.20mmL×10.00mmW×5.10mmH SMD/SMT 2.2 µH 30 % 7.2 A 9 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 30 % |
| Height - Seated (Max) | 5.1 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| RoHS | Non-Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 53 MHz |
| Type | Wirewound |
| DC Resistance (DCR) | 9 mΩ |
| Shielding | Shielded |
| Inductance | 2.2 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 7.2 A |
| inductance tolerance | 30 % |
| Saturation Current | 8.2 A |
| Current Rating | 7.2 A |
Stock: 575
Distributors
pcbx
pcbxUnit Price$0.72583
Ext.Price$0.72583
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.72583 | $0.72583 |
| 10 | $0.59503 | $5.95030 |
| 25 | $0.56853 | $14.21325 |
| 50 | $0.48653 | $24.32650 |
| 100 | $0.41635 | $41.63500 |
| 300 | $0.38230 | $114.69000 |
| 500 | $0.35103 | $175.51500 |
| 1000 | $0.32231 | $322.31000 |
