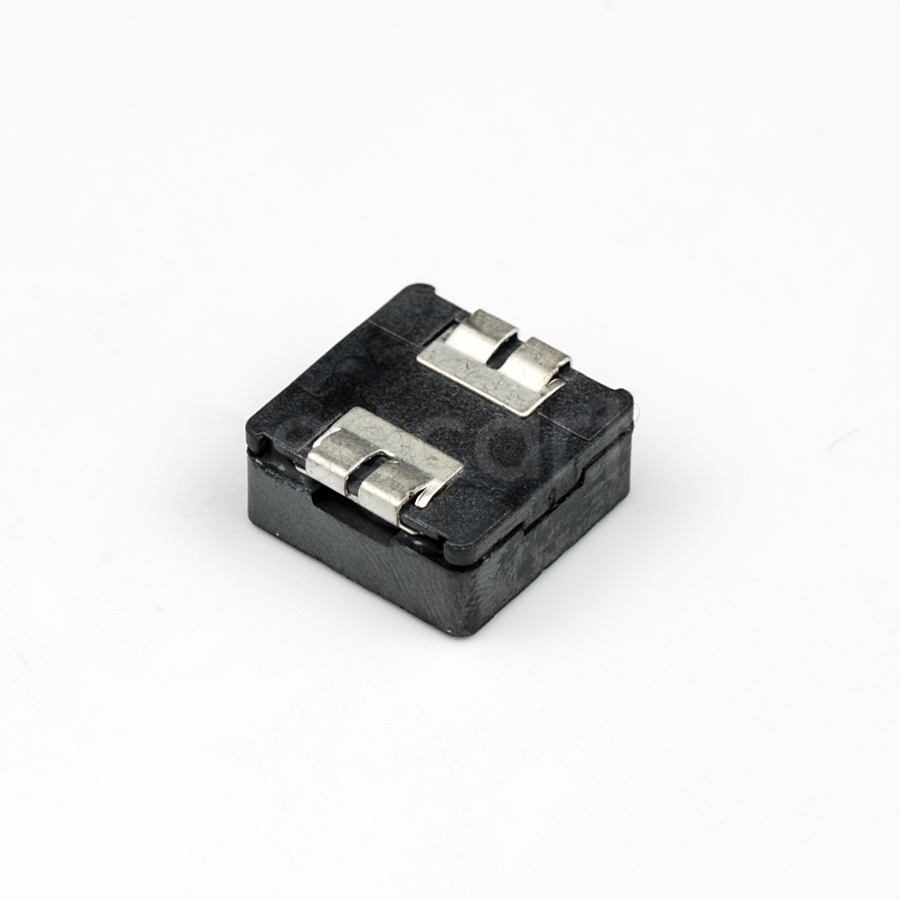

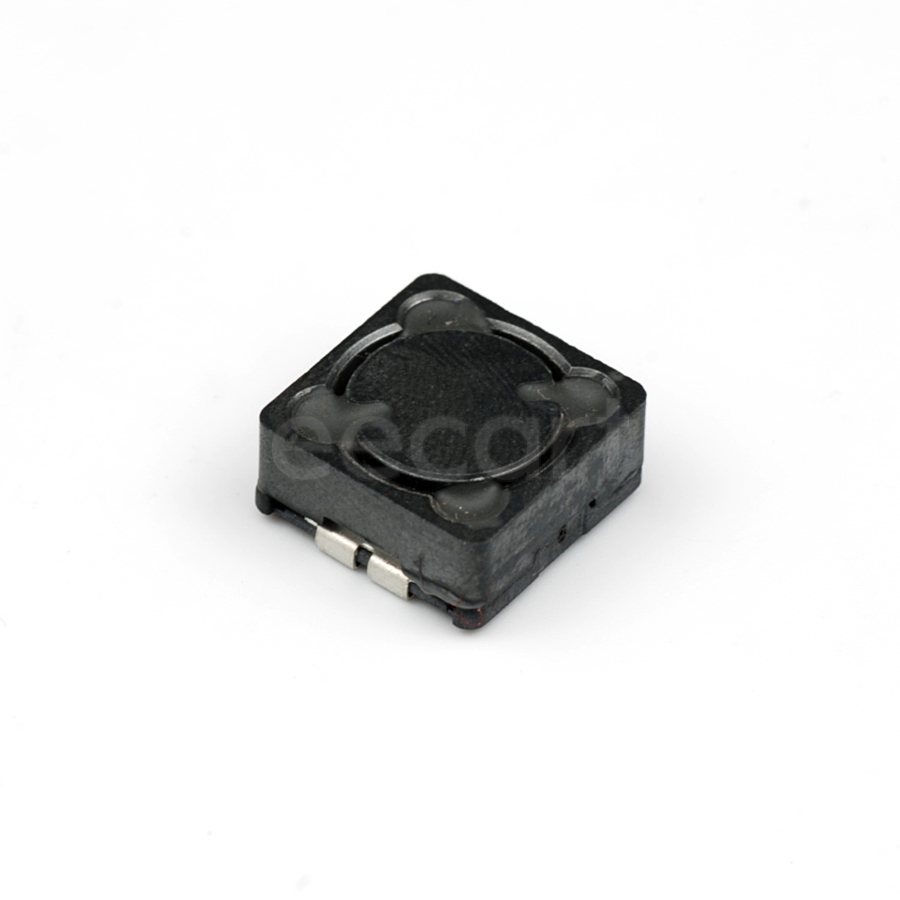

SRR1206-101YL
Manufacturer:
Bourns
Mfr.Part #:
SRR1206-101YL
Datasheet:
Description:
Fixed Inductors 12.70mmL×12.70mmW×6.50mmH SMD/SMT 100 µH 15 % 1.1 A 220 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 15 % |
| Height - Seated (Max) | 6.5 mm |
| Length | 12.7 mm |
| Width | 12.7 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Resistance | 220 mΩ |
| Height | 6.5 mm |
| Material | Steel |
| Packaging | Reel |
| Depth | 13 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Frequency | 6 MHz |
| Self Resonant Frequency | 6 MHz |
| Q Factor | 13 |
| Current Rating | 1.1 A |
| DC Resistance (DCR) | 220 mΩ |
| Test Frequency | 1 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 100 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1.1 A |
| inductance tolerance | 15 % |
| Max DC Current | 1.1 A |
| DC Current | 1.1 A |
| Saturation Current | 1.9 A |
| Schedule B | 8504500000 |
| Composition(Kit Type) | Wirewound |
| Type | Power Choke |
Stock: 236
Distributors
pcbx
pcbxUnit Price$0.55057
Ext.Price$0.55057
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.55057 | $0.55057 |
| 10 | $0.45226 | $4.52260 |
| 25 | $0.42403 | $10.60075 |
| 50 | $0.39756 | $19.87800 |
| 100 | $0.37275 | $37.27500 |
| 300 | $0.32965 | $98.89500 |
| 500 | $0.29153 | $145.76500 |
