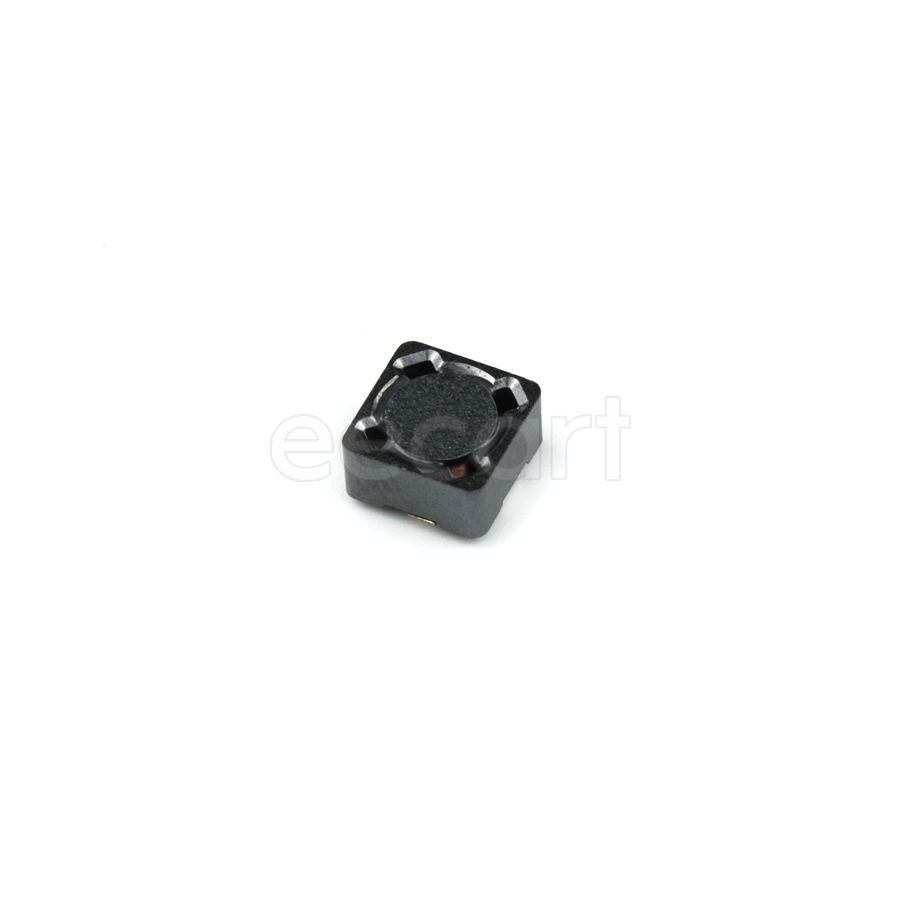

SRR1208-6R5ML
Manufacturer:
Bourns
Mfr.Part #:
SRR1208-6R5ML
Datasheet:
Description:
Fixed Inductors 12.70mmL×12.70mmW×8.50mmH SMD/SMT 6.5 µH 20 % 6 A 18 mΩ
| Parameter | Value |
|---|---|
| Capacitance | |
| Voltage Rating (DC) | |
| Tolerance | 20 % |
| Height - Seated (Max) | 8.5 mm |
| Length | 12.7 mm |
| Width | 12.7 mm |
| Termination | SMD/SMT |
| Diameter | |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | |
| Case Code (Metric) | |
| Number of Pins | |
| Resistance | 18 mΩ |
| Composition(Kit Type) | Wirewound |
| Height | 8.5 mm |
| Packaging | Reel |
| Depth | 13 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Ratings | |
| Features | |
| Self Resonant Frequency | 20 MHz |
| Type | Power Choke |
| Q Factor | 25 |
| Current Rating | 6 A |
| DC Resistance (DCR) | 18 mΩ |
| Test Frequency | 1 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 6.5 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 6 A |
| inductance tolerance | 20 % |
| Max DC Current | 6 A |
| Series Resistance | 18 mΩ |
| DC Current | 6 A |
| Saturation Current | 8.4 A |
| Schedule B | 8504500000 |
Stock: 1923
Distributors
pcbx
pcbxUnit Price$0.56340
Ext.Price$0.56340
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.56340 | $0.56340 |
| 10 | $0.46337 | $4.63370 |
| 25 | $0.43422 | $10.85550 |
| 50 | $0.40690 | $20.34500 |
| 100 | $0.38130 | $38.13000 |
| 300 | $0.33778 | $101.33400 |
| 500 | $0.29923 | $149.61500 |
