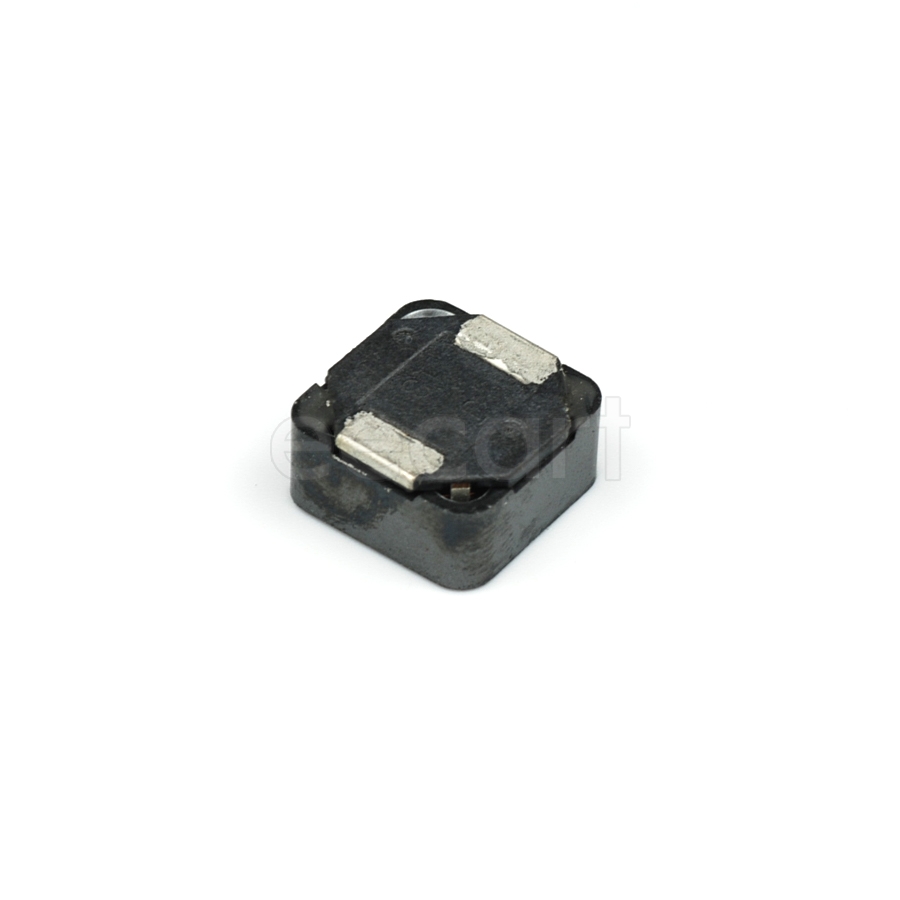

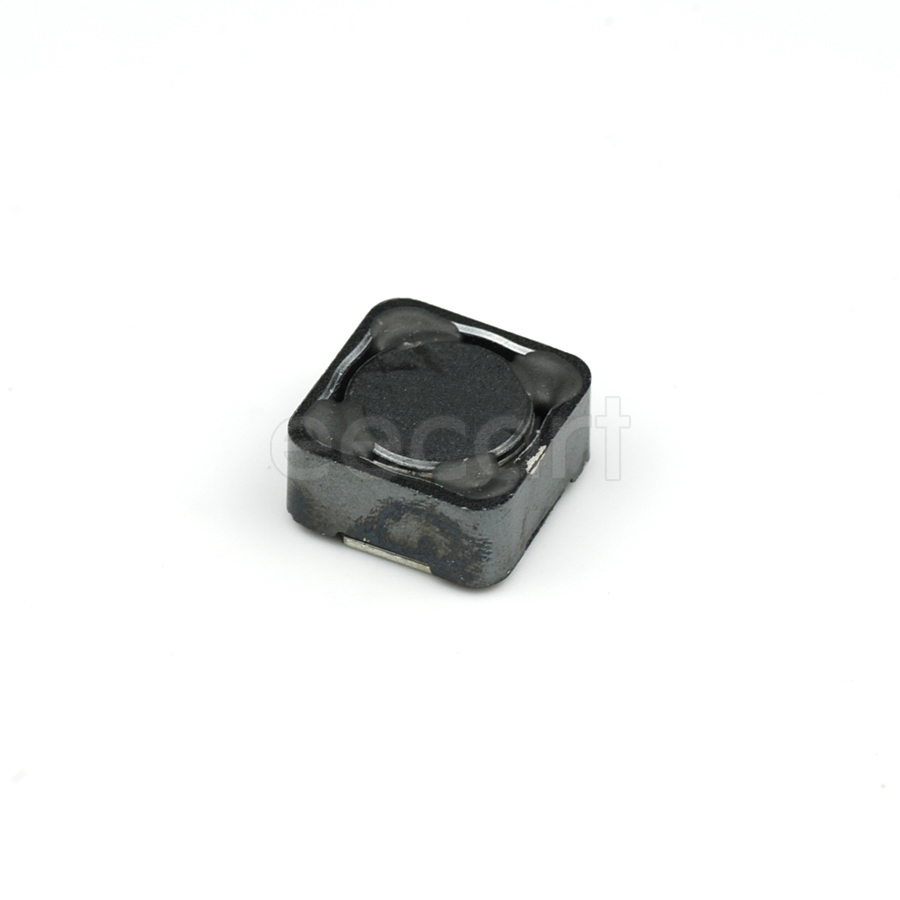

SRR1260-331K
Manufacturer:
Bourns
Mfr.Part #:
SRR1260-331K
Datasheet:
Description:
Fixed Inductors 12.50mmL×12.50mmW×6.50mmH SMD/SMT 330 µH 10 % 1.15 A 580 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 10 % |
| Height - Seated (Max) | 6.5 mm |
| Length | 12.5 mm |
| Width | 12.5 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Resistance | 580 MΩ |
| Height | 6 mm |
| Material | Steel |
| Packaging | Reel |
| Depth | 12.8 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Frequency | 3.2 MHz |
| Self Resonant Frequency | 3.2 MHz |
| Q Factor | 22 |
| Current Rating | 1.15 A |
| DC Resistance (DCR) | 580 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 330 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1.15 A |
| inductance tolerance | 10 % |
| Max DC Current | 1.15 A |
| DC Current | 1.15 A |
| Saturation Current | 1.1 A |
| Schedule B | 8504500000 |
| Composition(Kit Type) | Wirewound |
| Type | Wirewound |
Stock: 2
Distributors
pcbx
pcbxUnit Price$2.03290
Ext.Price$2.03290
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.03290 | $2.03290 |
| 10 | $1.76294 | $17.62940 |
| 25 | $1.64624 | $41.15600 |
| 50 | $1.53726 | $76.86300 |
| 100 | $1.43550 | $143.55000 |
| 300 | $1.39670 | $419.01000 |
| 500 | $1.35895 | $679.47500 |
| 1000 | $1.32221 | $1322.21000 |
