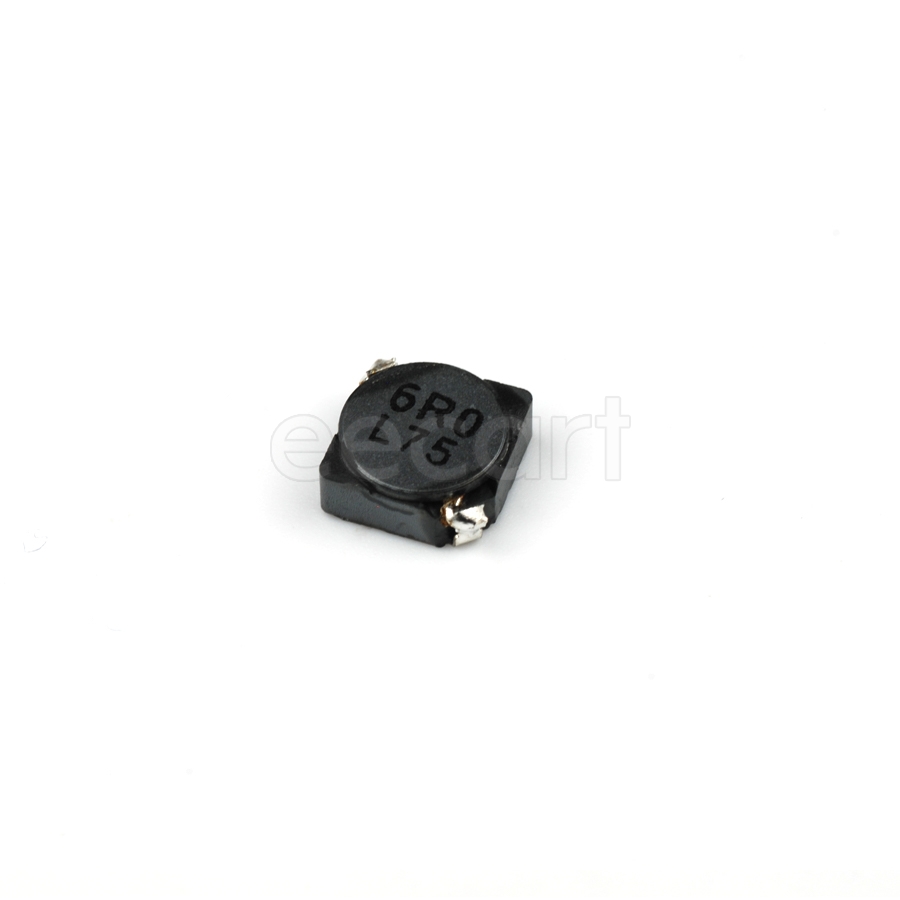

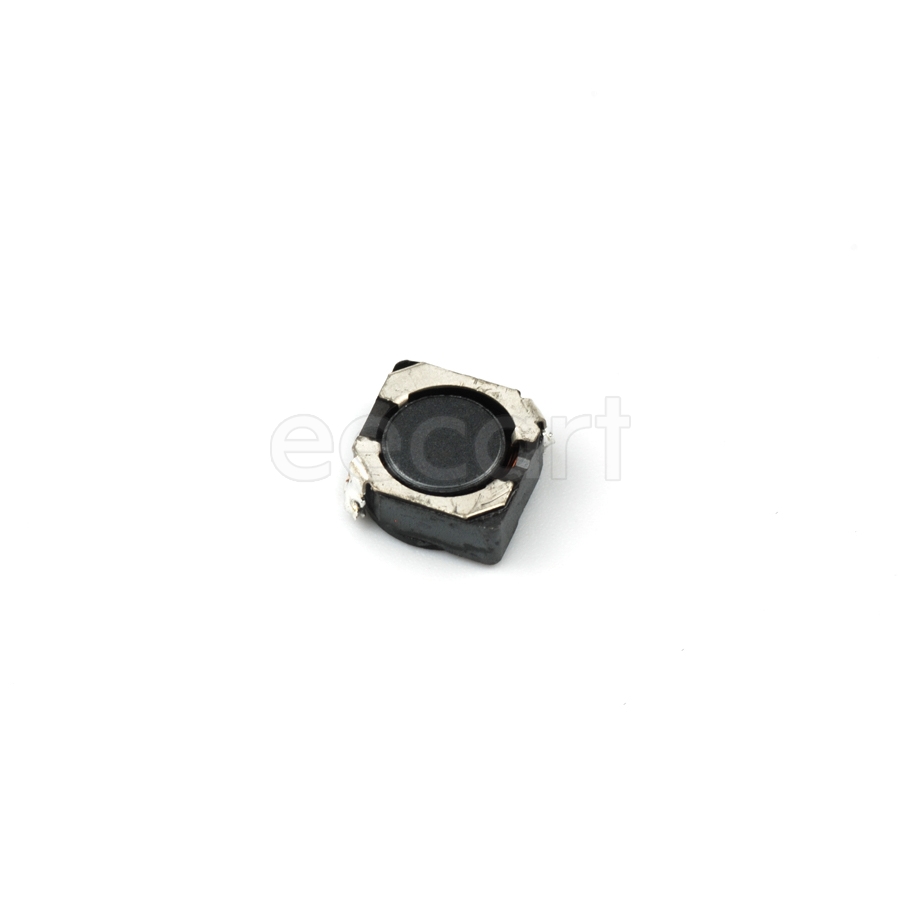

SRR4528A-151M
Manufacturer:
Bourns
Mfr.Part #:
SRR4528A-151M
Datasheet:
Description:
Fixed Inductors 5.00mmL×5.00mmW×2.80mmH SMD/SMT 150 µH 20 % 290 mA 724 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 2.8 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Self Resonant Frequency | 8.5 MHz |
| Type | Power Inductor |
| Current Rating | 290 mA |
| DC Resistance (DCR) | 724 mΩ |
| Shielding | Shielded |
| Inductance | 150 µH |
| Core Material | Ferrite |
| inductance tolerance | 20 % |
| Saturation Current | 290 mA |
| Schedule B | 8504500000 |
