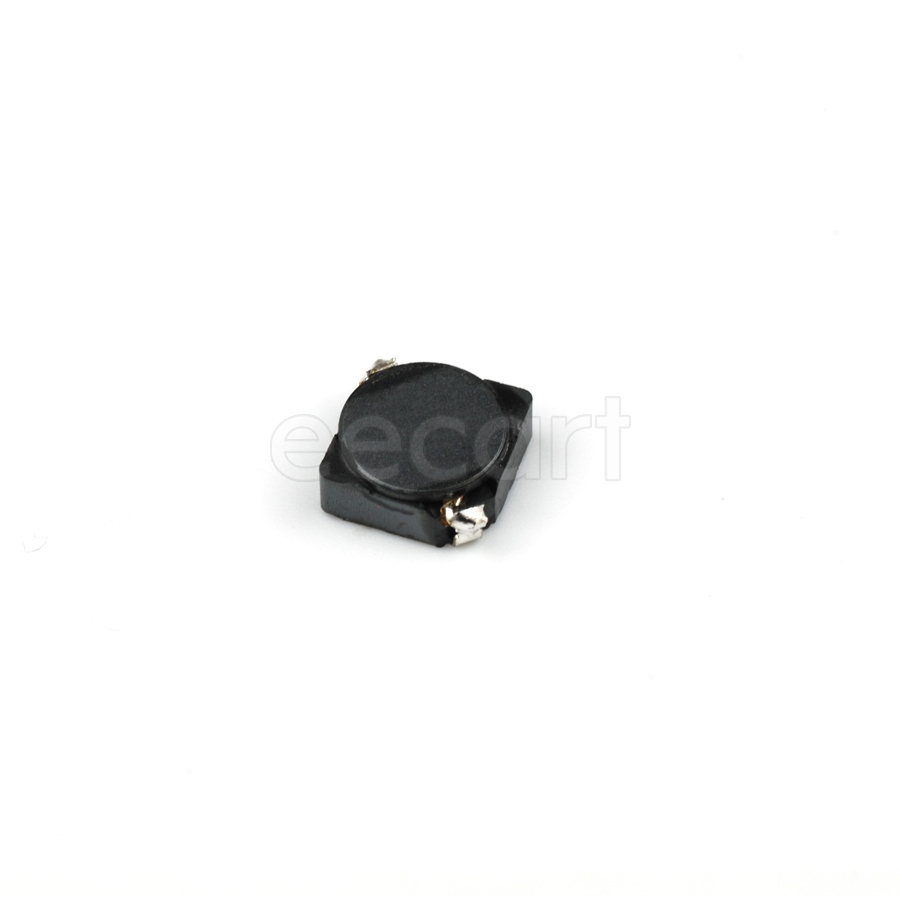

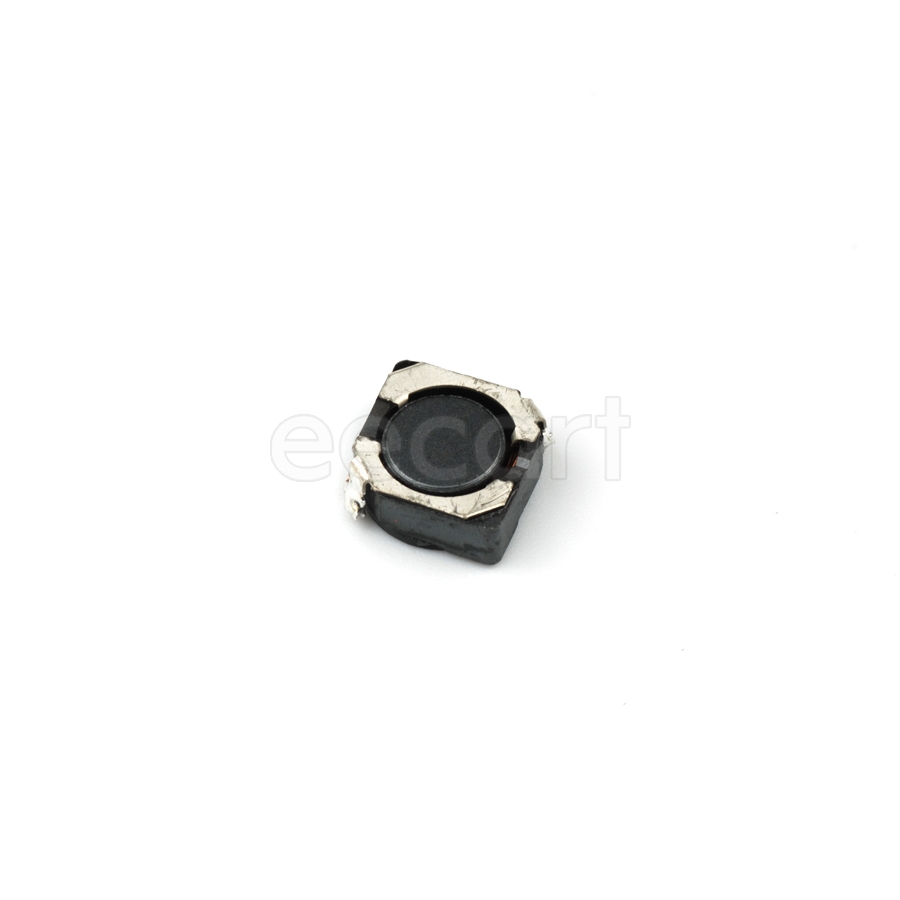

SRR6040A-5R0Y
Manufacturer:
Bourns
Mfr.Part #:
SRR6040A-5R0Y
Datasheet:
Description:
Fixed Inductors 6.70mmL×6.70mmW×4.00mmH SMD/SMT 5 µH 30 % 2.9 A 25 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 30 % |
| Height - Seated (Max) | 3.99 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Ratings | AEC-Q200 |
| Current Rating | 2.9 A |
| DC Resistance (DCR) | 25 mΩ |
| Test Frequency | 10 kHz |
| Shielding | Shielded |
| Inductance | 5 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 2.9 A |
| inductance tolerance | 30 % |
| Saturation Current | 2.63 A |
| Length | 6.8 mm |
| Width | 6.7 mm |
| Height | 4 mm |
Stock: 2843
Distributors
pcbx
pcbxUnit Price$0.56970
Ext.Price$0.56970
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.56970 | $0.56970 |
| 10 | $0.46741 | $4.67410 |
| 25 | $0.43221 | $10.80525 |
| 50 | $0.40745 | $20.37250 |
| 100 | $0.38418 | $38.41800 |
| 300 | $0.35880 | $107.64000 |
| 500 | $0.33509 | $167.54500 |
| 1000 | $0.30993 | $309.93000 |
