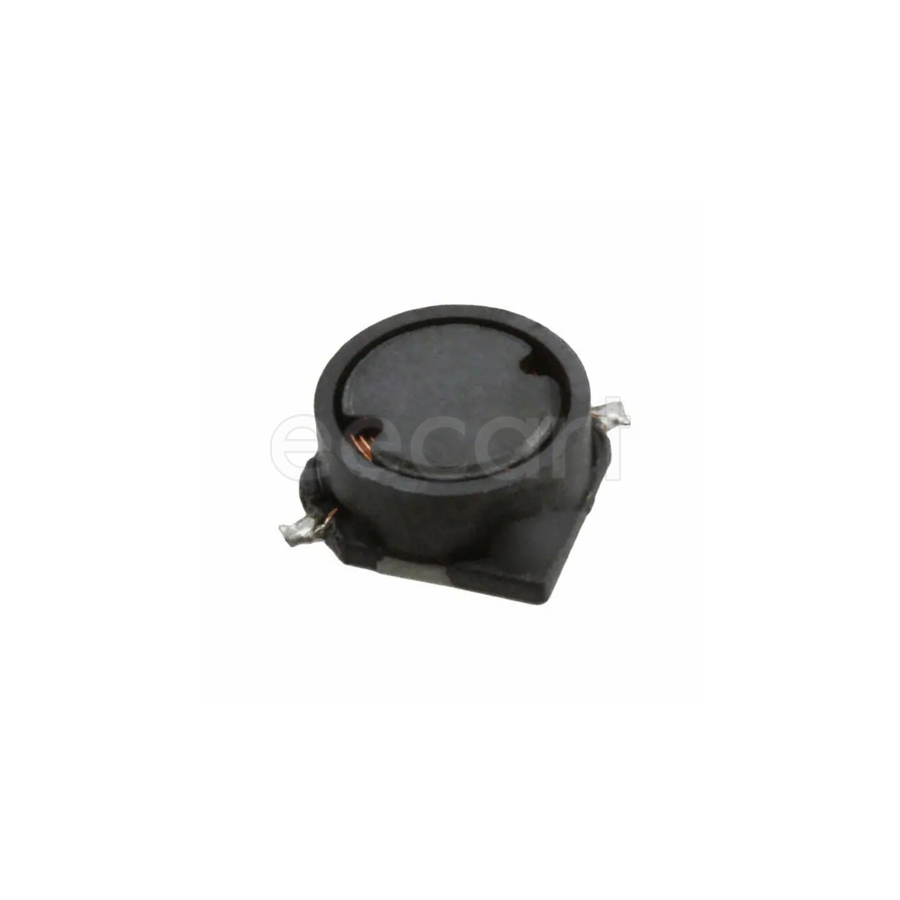

SRR7032-100M
Manufacturer:
Bourns
Mfr.Part #:
SRR7032-100M
Datasheet:
Description:
Fixed Inductors 7.00mmL×7.00mmW×3.40mmH SMD/SMT 10 µH 20 % 1.4 A 68 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 3.41 mm |
| Length | 7 mm |
| Width | 7 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Resistance | 68 MΩ |
| Height | 3.2 mm |
| Material | Steel |
| Packaging | Reel |
| Depth | 7.3 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Frequency | 35 MHz |
| Self Resonant Frequency | 35 MHz |
| Q Factor | 25 |
| Current Rating | 1.4 A |
| DC Resistance (DCR) | 68 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 10 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1.4 A |
| inductance tolerance | 20 % |
| Max DC Current | 1.4 A |
| DC Current | 1.4 A |
| Saturation Current | 1.6 A |
| Schedule B | 8504500000 |
| Composition(Kit Type) | Wirewound |
| Type | Power Choke |
