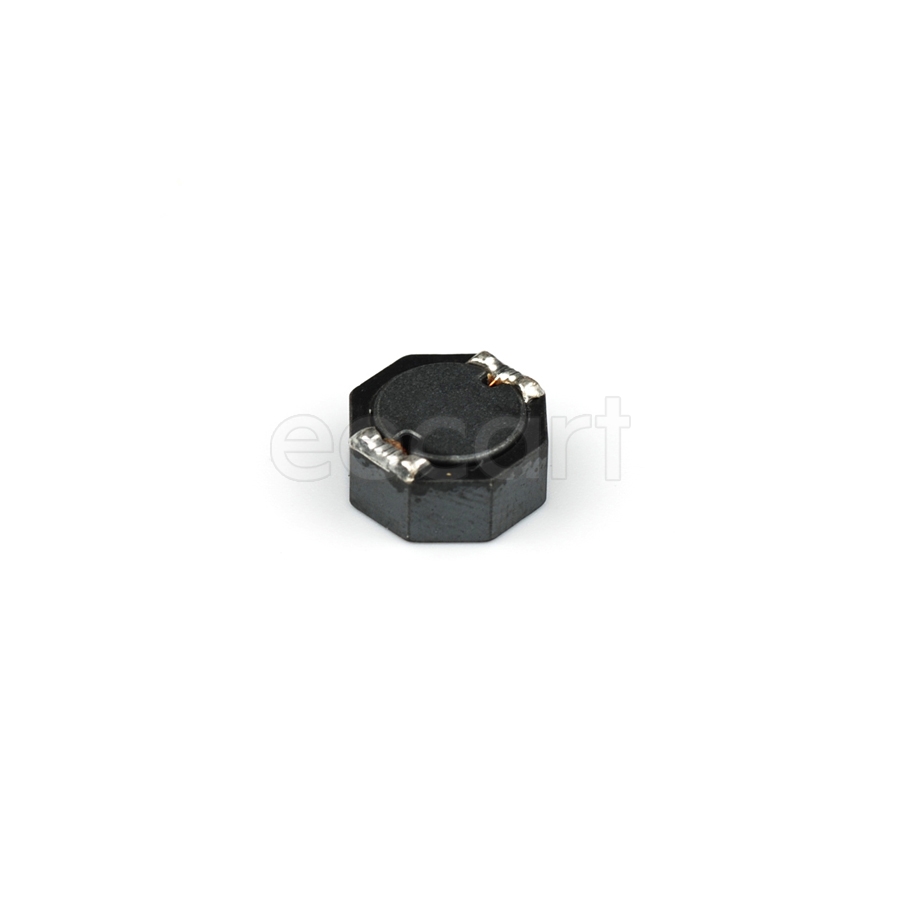

SRU1048-331Y
Manufacturer:
Bourns
Mfr.Part #:
SRU1048-331Y
Datasheet:
Description:
Fixed Inductors 10.00mmL×10.00mmW×5.10mmH SMD/SMT 330 µH 30 % 650 mA 490 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 30 % |
| Height - Seated (Max) | 5.11 mm |
| Length | 10 mm |
| Width | 10 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 4.8 mm |
| Packaging | Reel |
| Depth | 10.3 mm |
| RoHS | Compliant |
| Self Resonant Frequency | 3 MHz |
| Q Factor | 18 |
| Current | 1.6 A |
| Current Rating | 650 mA |
| DC Resistance (DCR) | 490 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 330 µH |
| Core Material | Ferrite |
| Max DC Current | 650 mA |
| DC Current | 650 mA |
| Saturation Current | 520 mA |
| Schedule B | 8504500000 |
| Composition(Kit Type) | Wirewound |
| Type | Power Choke |
Stock: 36339
Distributors
pcbx
pcbxUnit Price$0.55684
Ext.Price$0.55684
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.55684 | $0.55684 |
| 10 | $0.45992 | $4.59920 |
| 25 | $0.43080 | $10.77000 |
| 50 | $0.40353 | $20.17650 |
| 100 | $0.37798 | $37.79800 |
| 300 | $0.32297 | $96.89100 |
| 500 | $0.27596 | $137.98000 |
