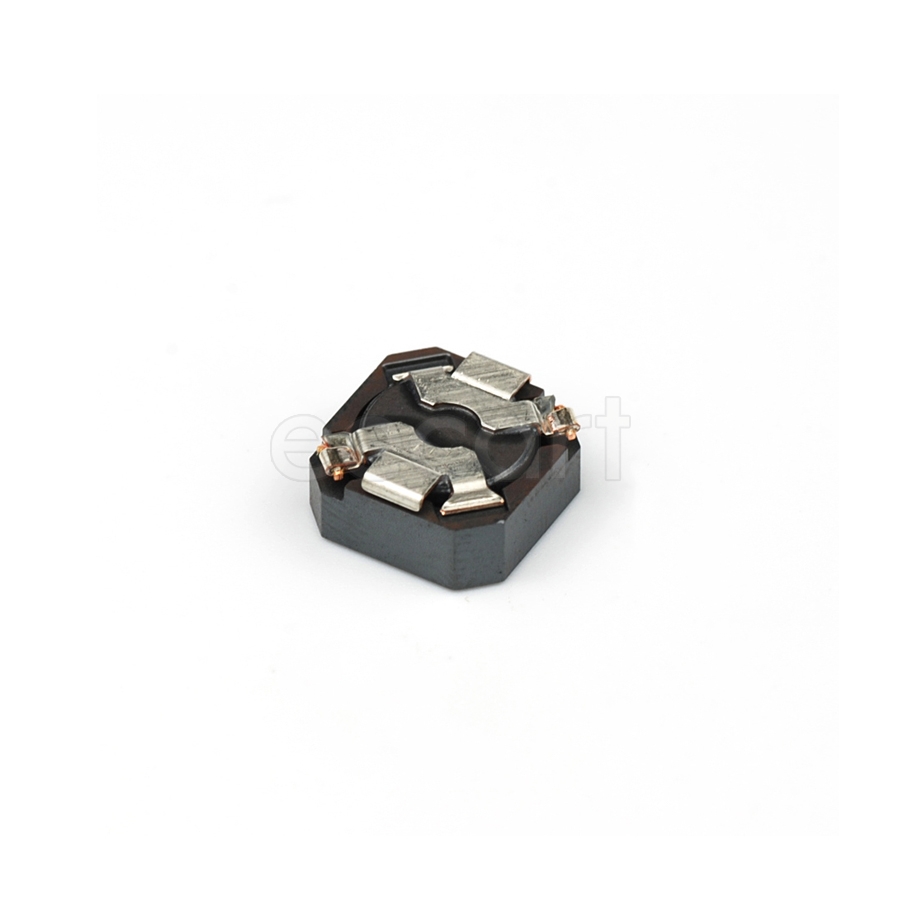

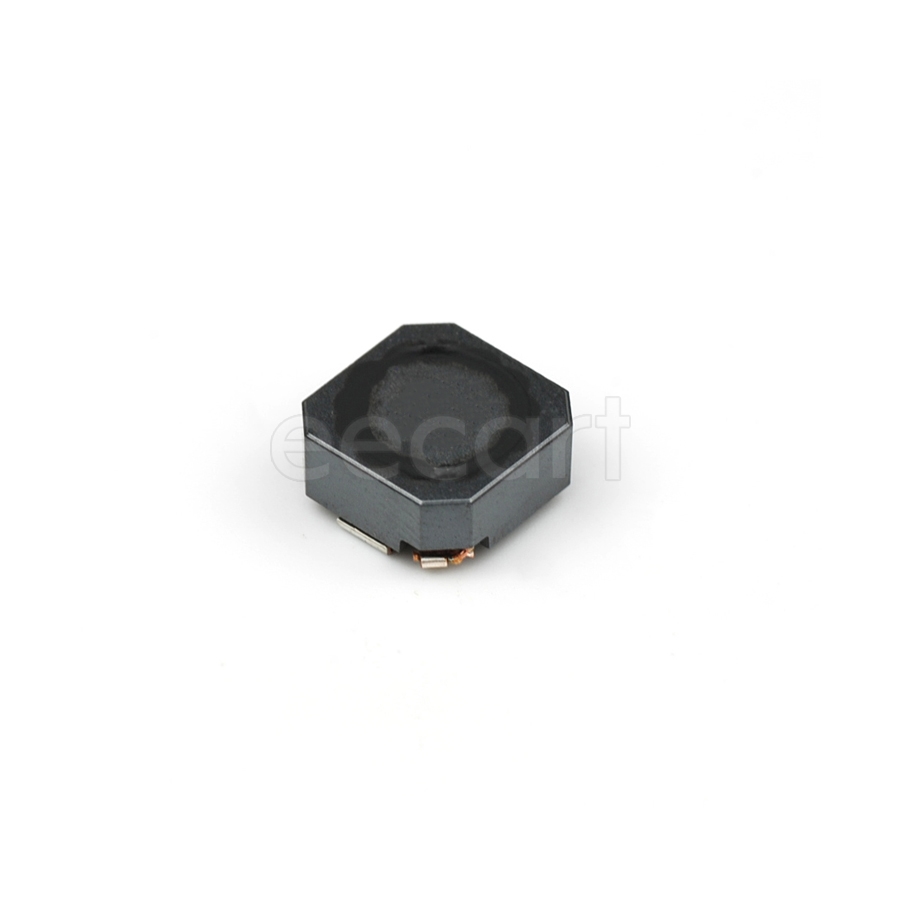

SRU5016-100Y
Manufacturer:
Bourns
Mfr.Part #:
SRU5016-100Y
Datasheet:
Description:
Fixed Inductors 5.20mmL×5.20mmW×1.80mmH SMD/SMT 10 µH 30 % 1 A 84 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 30 % |
| Height - Seated (Max) | 1.8 mm |
| Length | 5.207 mm |
| Width | 5.2 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 1.6 mm |
| Depth | 5.4 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 40 MHz |
| Q Factor | 15 |
| Current Rating | 1 A |
| DC Resistance (DCR) | 84 mΩ |
| Test Frequency | 2.52 MHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 10 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1 A |
| inductance tolerance | 30 % |
| Max DC Current | 1 A |
| DC Current | 1 A |
| Saturation Current | 900 mA |
| Schedule B | 8504500000 |
| Composition(Kit Type) | Wirewound |
| Packaging | Reel |
| Type | Wirewound |
Stock: 8608
Distributors
pcbx
pcbxUnit Price$0.38812
Ext.Price$0.38812
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.38812 | $0.38812 |
| 10 | $0.31973 | $3.19730 |
| 25 | $0.29950 | $7.48750 |
| 50 | $0.28055 | $14.02750 |
| 100 | $0.26279 | $26.27900 |
| 300 | $0.24621 | $73.86300 |
| 500 | $0.23068 | $115.34000 |
| 1000 | $0.21612 | $216.12000 |
