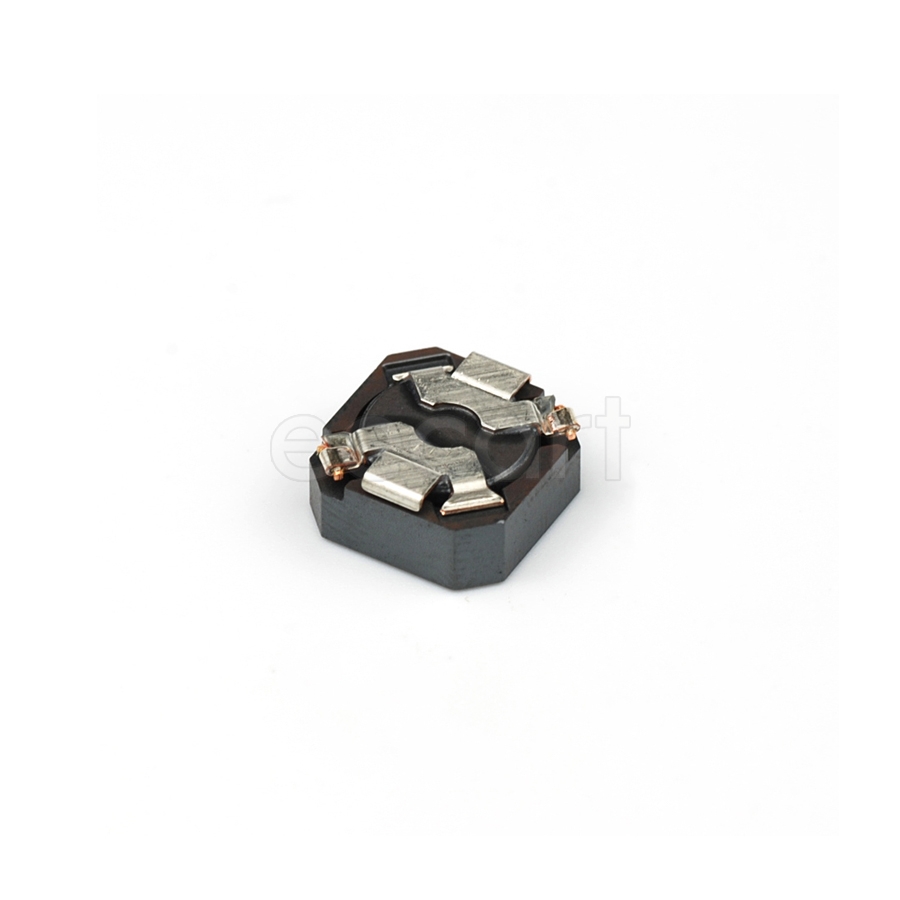

SRU5018-100Y
Manufacturer:
Bourns
Mfr.Part #:
SRU5018-100Y
Datasheet:
Description:
Fixed Inductors 5.20mmL×5.20mmW×2.00mmH SMD/SMT 10 µH 30 % 1.25 A 65 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 30 % |
| Height - Seated (Max) | 2.01 mm |
| Length | 5.2 mm |
| Width | 5.2 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Resistance | 65 mΩ |
| Height | 1.8 mm |
| Packaging | Reel |
| Depth | 5.4 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 50 MHz |
| Q Factor | 12 |
| Current Rating | 1.25 A |
| DC Resistance (DCR) | 65 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 10 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1.25 A |
| inductance tolerance | 30 % |
| Max DC Current | 1.25 A |
| DC Current | 1.25 A |
| Saturation Current | 1.05 A |
| Schedule B | 8504500000 |
| Composition(Kit Type) | Wirewound |
| Type | Power Choke |
Stock: 61
Distributors
pcbx
pcbxUnit Price$0.44758
Ext.Price$0.44758
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.44758 | $0.44758 |
| 10 | $0.43712 | $4.37120 |
| 25 | $0.43057 | $10.76425 |
