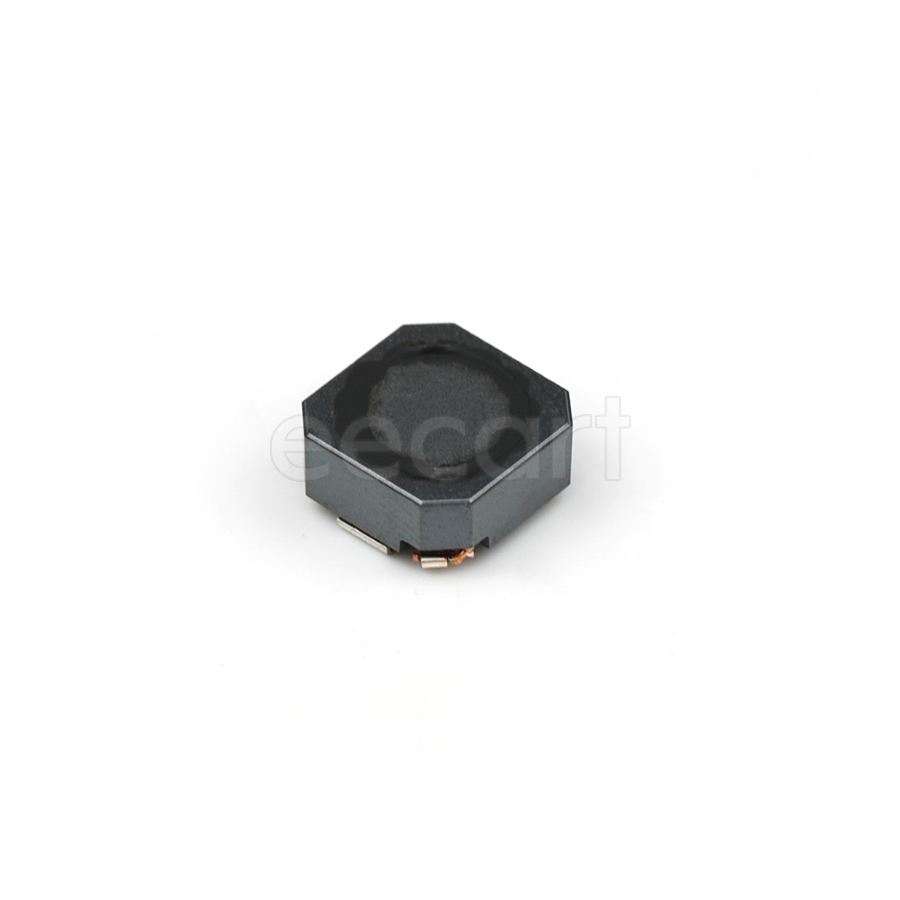

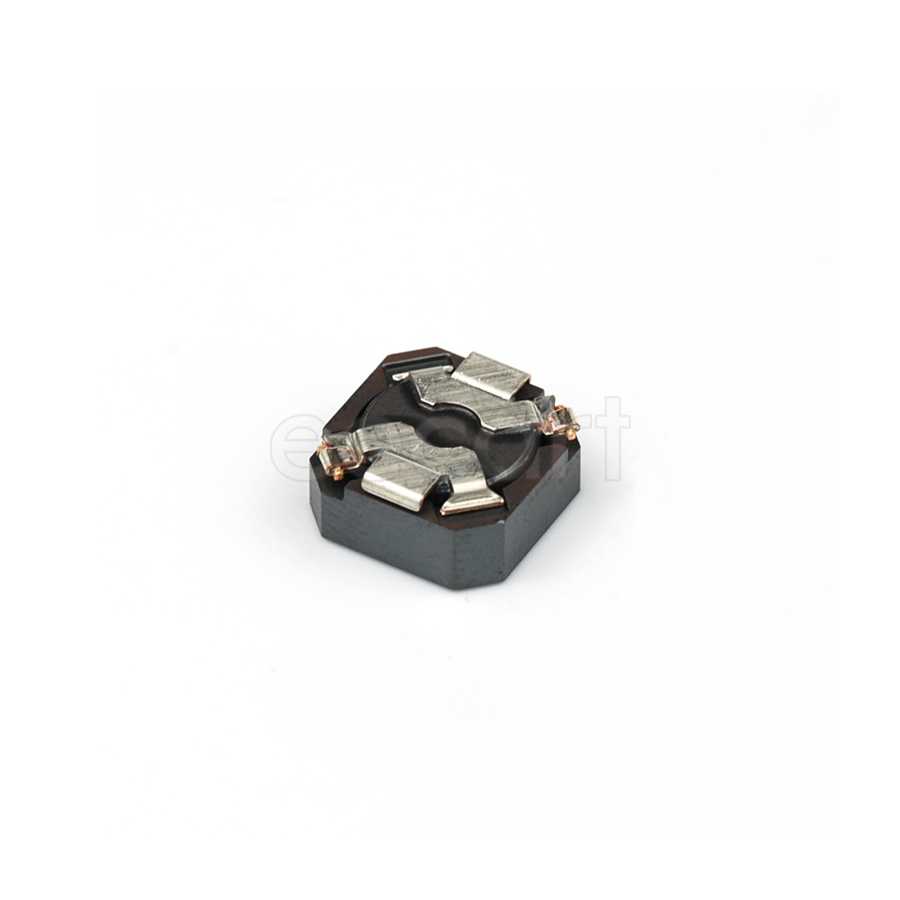

SRU8043-101Y
Manufacturer:
Bourns
Mfr.Part #:
SRU8043-101Y
Datasheet:
Description:
Fixed Inductors 8.00mmL×8.00mmW×4.30mmH SMD/SMT 100 µH 30 % 1 A 287 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 30 % |
| Height - Seated (Max) | 4.6 mm |
| Length | 8 mm |
| Width | 8 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Resistance | 287 mΩ |
| Height | 4.3 mm |
| Packaging | Reel |
| Depth | 8.3 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 6 MHz |
| Q Factor | 50 |
| Current Rating | 1 A |
| DC Resistance (DCR) | 287 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 100 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1 A |
| inductance tolerance | 30 % |
| Max DC Current | 1 A |
| DC Current | 1 A |
| Saturation Current | 800 mA |
| Schedule B | 8504500000 |
| Composition(Kit Type) | Wirewound |
| Type | Power Choke |
Stock: 99
Distributors
pcbx
pcbxUnit Price$0.48817
Ext.Price$0.48817
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.48817 | $0.48817 |
| 10 | $0.40010 | $4.00100 |
| 25 | $0.37522 | $9.38050 |
| 50 | $0.35189 | $17.59450 |
| 100 | $0.33000 | $33.00000 |
| 300 | $0.30187 | $90.56100 |
| 500 | $0.27614 | $138.07000 |
| 1000 | $0.27187 | $271.87000 |
