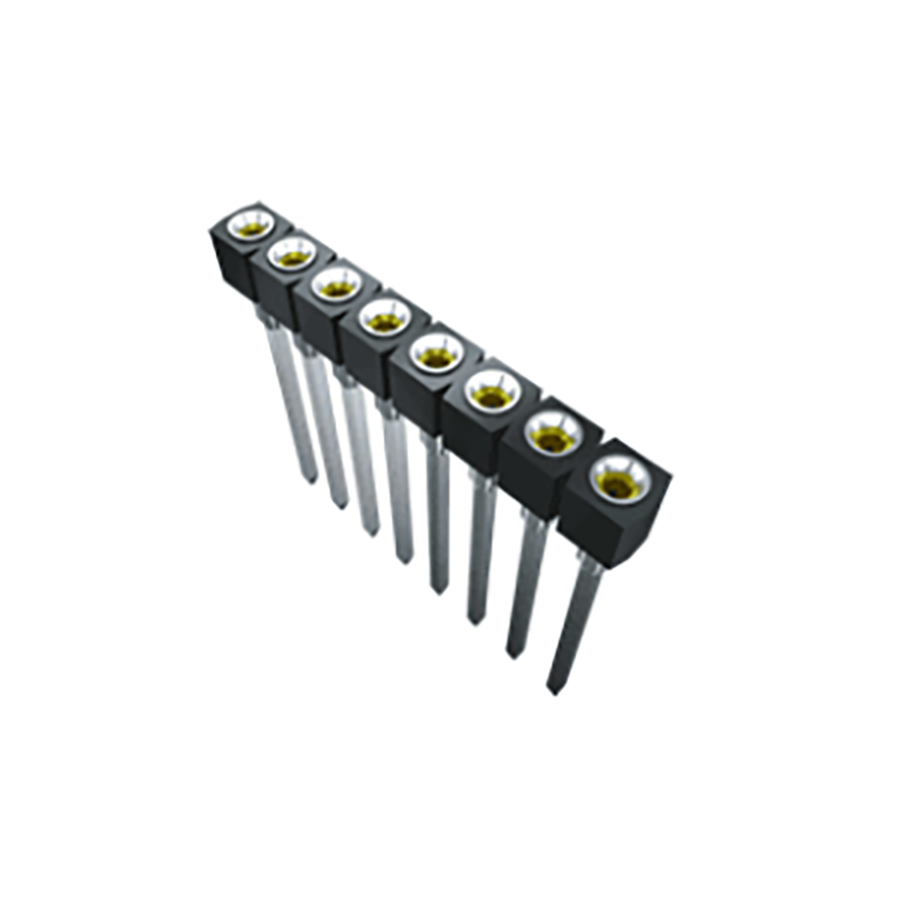

SS-105-TT-2
Manufacturer:
Samtec
Mfr.Part #:
SS-105-TT-2
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:5 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 12.7 mm |
| Width | 2.54 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Depth | 2.54 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.54 mm |
| Max Current Rating | 1 A |
| Orientation | Straight |
| Color | Black |
| Gender | Socket (Female) |
| Number of Contacts | 5 |
| Connector Type | Receptacle |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Contact Resistance | 10 mΩ |
| Housing Color | Black |
| Termination Post Length | 3.18 mm |
Stock: 285
Distributors
pcbx
pcbxUnit Price$0.41891
Ext.Price$0.41891
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.41891 | $0.41891 |
| 10 | $0.35024 | $3.50240 |
| 50 | $0.29283 | $14.64150 |
| 100 | $0.24483 | $24.48300 |
| 500 | $0.20470 | $102.35000 |
| 1000 | $0.17115 | $171.15000 |
| 3000 | $0.14310 | $429.30000 |
| 5000 | $0.11964 | $598.20000 |
| 10000 | $0.10003 | $1000.30000 |
