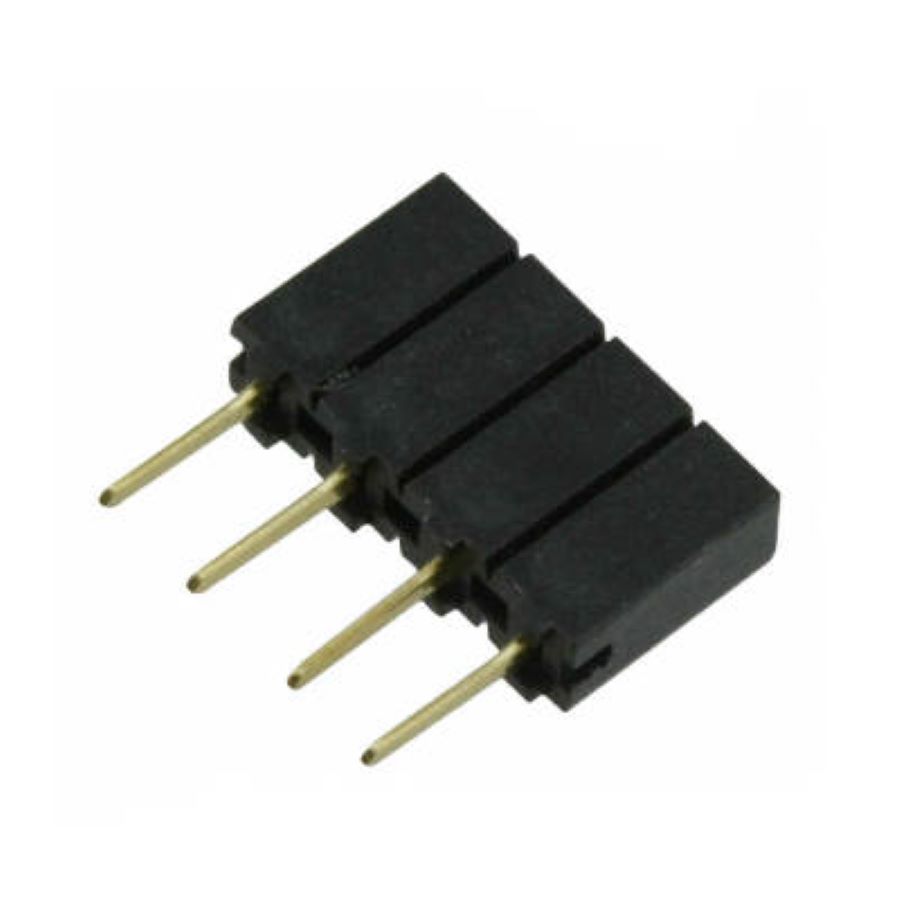

SSA-104-S-G
Manufacturer:
Samtec
Mfr.Part #:
SSA-104-S-G
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:4 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Voltage Rating | 1000 V (1 kV) |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 4 |
| Connector Type | Receptacle |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Plastic |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 1 kV |
| Housing Color | Black |
Stock: 397
Distributors
pcbx
pcbxUnit Price$0.68822
Ext.Price$0.68822
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.68822 | $0.68822 |
| 10 | $0.63119 | $6.31190 |
| 25 | $0.57888 | $14.47200 |
| 50 | $0.53091 | $26.54550 |
| 100 | $0.42832 | $42.83200 |
| 300 | $0.39496 | $118.48800 |
| 500 | $0.36420 | $182.10000 |
| 1000 | $0.29666 | $296.66000 |
| 3000 | $0.26071 | $782.13000 |
| 5000 | $0.22912 | $1145.60000 |
| 10000 | $0.18381 | $1838.10000 |
