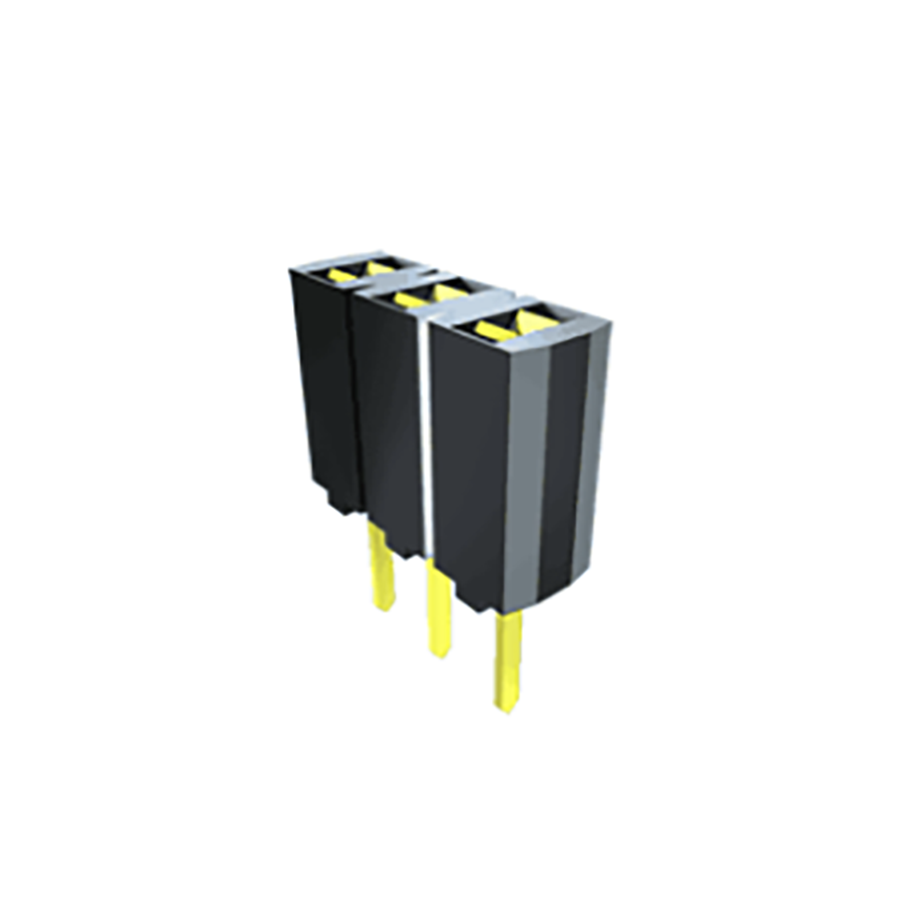

SSA-115-S-T
Manufacturer:
Samtec
Mfr.Part #:
SSA-115-S-T
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:15 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 38.1 mm |
| Width | 2.54 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Depth | 2.54 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Pitch | 2.54 mm |
| Max Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Socket (Female) |
| Number of Contacts | 15 |
| Connector Type | Receptacle |
| Number of Positions | 15 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyethylene |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 1 kV |
| Housing Color | Black |
| Termination Post Length | 3.81 mm |
Stock: 163
Distributors
pcbx
pcbxUnit Price$1.25760
Ext.Price$1.25760
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.25760 | $1.25760 |
| 10 | $1.15583 | $11.55830 |
| 25 | $1.06229 | $26.55725 |
| 50 | $0.97633 | $48.81650 |
| 100 | $0.78824 | $78.82400 |
| 300 | $0.72640 | $217.92000 |
| 500 | $0.66941 | $334.70500 |
| 1000 | $0.54459 | $544.59000 |
| 3000 | $0.47764 | $1432.92000 |
| 5000 | $0.41891 | $2094.55000 |
| 10000 | $0.33770 | $3377.00000 |
