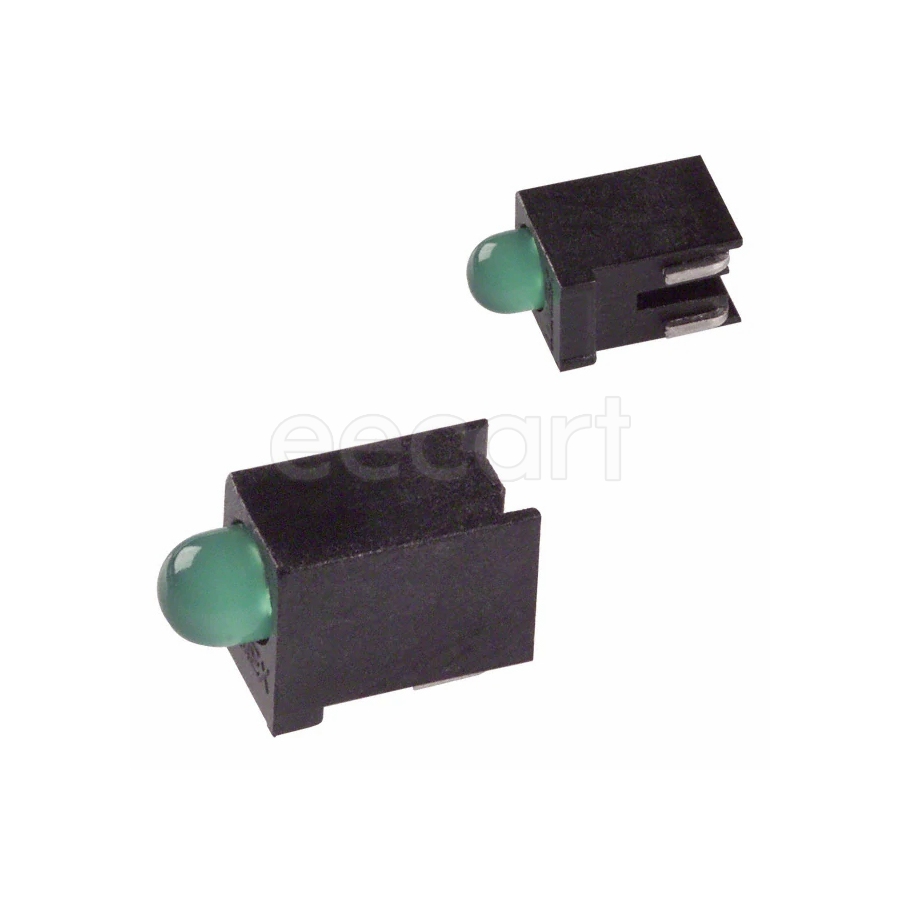

SSF-LXH305GD-TR
Manufacturer:
Lumex
Mfr.Part #:
SSF-LXH305GD-TR
Datasheet:
Description:
LEDs 9.30mmL×4.00mmW×5.50mmH SMD/SMT Green 565 nm 25 mA 2.2 V
| Parameter | Value |
|---|---|
| Width | 4 mm |
| Diameter | 3 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 5.5 mm |
| Packaging | Reel |
| Voltage Rating | 2.2 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Current | 20 mA |
| Forward Current | 25 mA |
| Forward Voltage | 2.2 V |
| Color | Green |
| Illumination Color | Green |
| Lens Style | Diffused |
| Luminous Intensity | 30 mcd |
| Element Configuration | Single |
| Number of LEDs | 1 |
| Viewing Angle | 60 ° |
| Wavelength | 565 nm |
| Lens Color | Green |
| Peak Wavelength | 565 nm |
| Dominant Wavelength/CCT (K) | 565 nm |
| Schedule B | 8541402000 |
Stock: 13429
Distributors
pcbx
pcbxUnit Price$0.91999
Ext.Price$0.91999
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.91999 | $0.91999 |
| 10 | $0.65262 | $6.52620 |
| 25 | $0.59340 | $14.83500 |
| 50 | $0.53956 | $26.97800 |
| 100 | $0.49061 | $49.06100 |
| 300 | $0.45334 | $136.00200 |
| 500 | $0.41890 | $209.45000 |
| 1000 | $0.39546 | $395.46000 |
