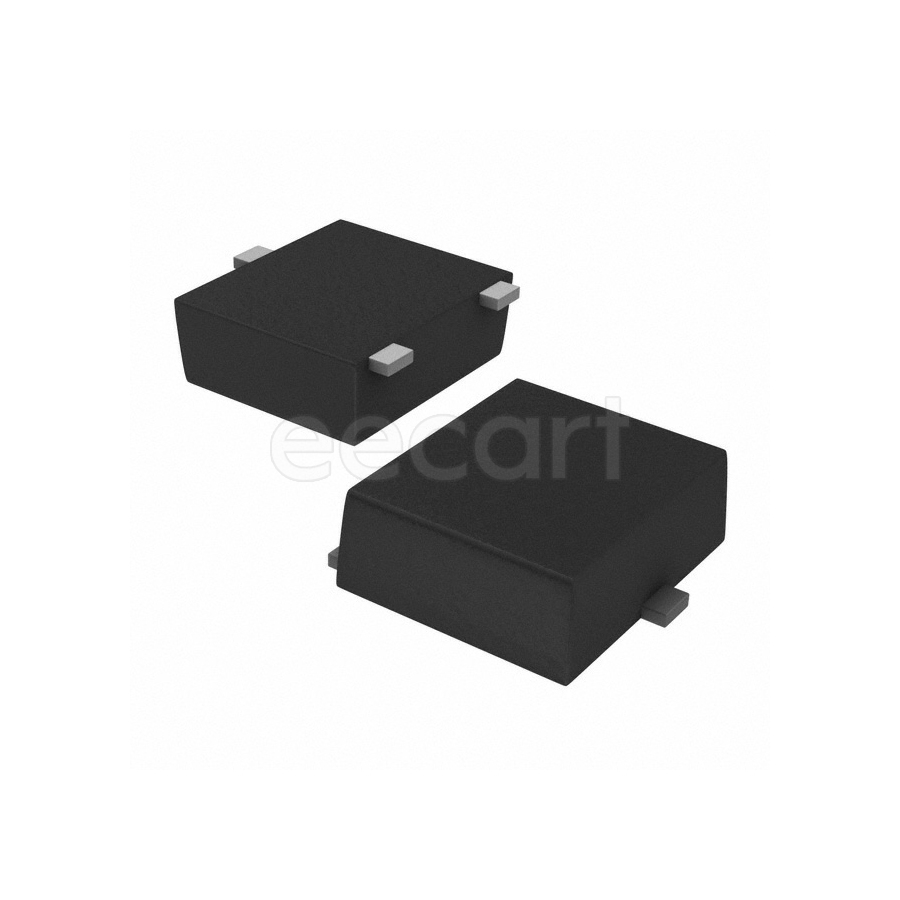

SSM3K123TU,LF
Manufacturer:
Toshiba
Mfr.Part #:
SSM3K123TU,LF
Datasheet:
Description:
MOSFETs UFM-3 SMD/SMT N-Channel number of channels:1 800 mW 20 V Continuous Drain Current (ID):4.2 A 13.6 nC
| Parameter | Value |
|---|---|
| Schedule B | 8541210080 |
| Rds On Max | 28 mΩ |
| Length | 2 mm |
| Max Power Dissipation | 500 mW |
| Number of Channels | 1 |
| Packaging | Reel |
| Mount | SMD/SMT |
| Number of Pins | 3 |
| Input capacitance | 1.01 nF |
| Drain to Source Resistance | 28 mΩ |
| Width | 1.7 mm |
| Case/Package | SMD/SMT |
| Continuous Drain Current (ID) | 4.2 A |
| Drain to Source Voltage (Vdss) | 20 V |
| RoHS | Compliant |
| Gate to Source Voltage (Vgs) | 10 V |
| Height | 700 µm |
| Power Dissipation | 800 mW |
| FET Type(Transistor Polarity) | N-Channel |
| Polarity | N-Channel |
| Gate Charge | 13.6 nC |
| Gate to Source Threshold Voltage | 350 mV |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Drain to Source Breakdown Voltage (Vds) | 20 V |
Stock: 1190
Distributors
pcbx
pcbxUnit Price$0.20784
Ext.Price$0.20784
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.20784 | $0.20784 |
| 10 | $0.19347 | $1.93470 |
| 50 | $0.18010 | $9.00500 |
| 100 | $0.16703 | $16.70300 |
| 500 | $0.15491 | $77.45500 |
| 1000 | $0.15230 | $152.30000 |
| 3000 | $0.14974 | $449.22000 |
| 5000 | $0.14573 | $728.65000 |
