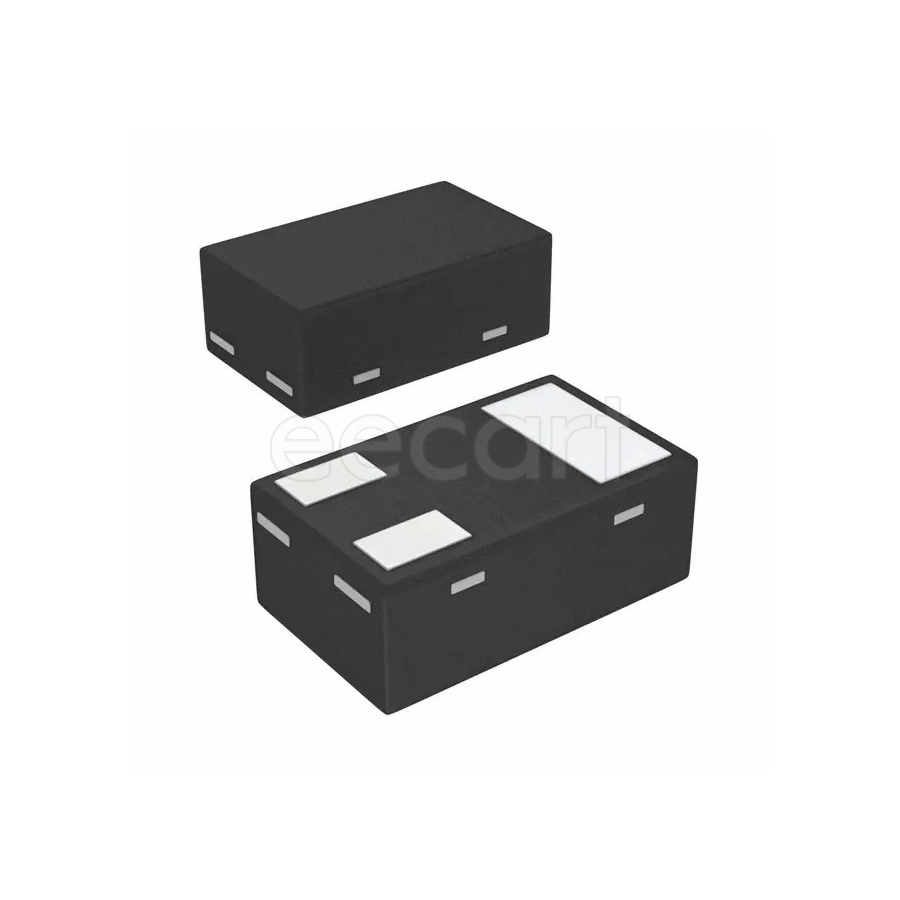

SSM3K56ACT,L3F
Manufacturer:
Toshiba
Mfr.Part #:
SSM3K56ACT,L3F
Datasheet:
Description:
MOSFETs CST3 SMD/SMT N-Channel number of channels:1 500 mW 20 V Continuous Drain Current (ID):1.4 A 1 nC
| Parameter | Value |
|---|---|
| Gate Charge | 1 nC |
| Gate to Source Threshold Voltage | 400 mV |
| Continuous Drain Current (ID) | 1.4 A |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Drain to Source Resistance | 840 mΩ |
| Input capacitance | 55 pF |
| Gate to Source Voltage (Vgs) | -8 V, 8 V |
| Power Dissipation | 500 mW |
| Drain to Source Breakdown Voltage (Vds) | 20 V |
| Number of Channels | 1 |
| Packaging | Reel |
| RoHS | Compliant |
| FET Type(Transistor Polarity) | N-Channel |
Stock: 12008
Distributors
pcbx
pcbxUnit Price$0.08832
Ext.Price$0.08832
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.08832 | $0.08832 |
| 10 | $0.04416 | $0.44160 |
| 50 | $0.03927 | $1.96350 |
| 100 | $0.03492 | $3.49200 |
| 500 | $0.03047 | $15.23500 |
| 1000 | $0.02658 | $26.58000 |
| 3000 | $0.02521 | $75.63000 |
| 5000 | $0.02391 | $119.55000 |
| 10000 | $0.02244 | $224.40000 |
