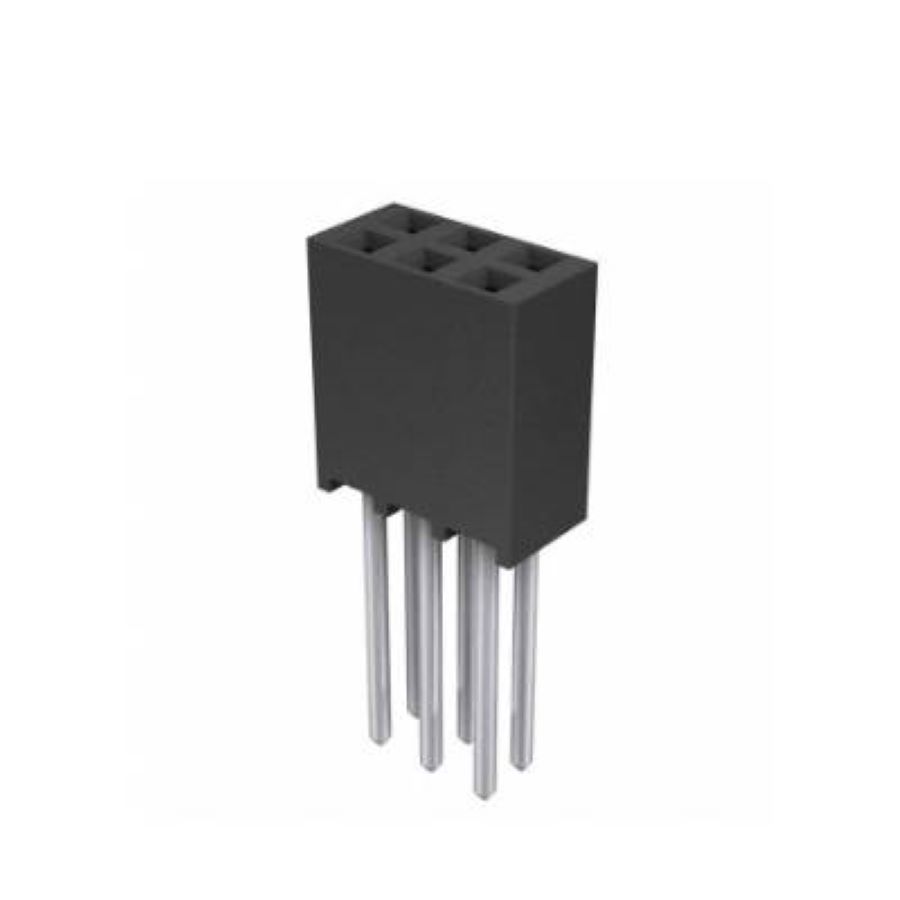

SSQ-103-03-T-D
Manufacturer:
Samtec
Mfr.Part #:
SSQ-103-03-T-D
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 655 V |
| Length | 8.13 mm |
| Width | 4.95 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 465 V |
| Packaging | Bulk |
| Depth | 4.95 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Pitch | 2.54 mm |
| Max Current Rating | 7.6 A |
| Orientation | Straight |
| Color | Black |
| Gender | Socket (Female) |
| Number of Contacts | 6 |
| Connector Type | Receptacle |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polymer |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 550 V |
| Housing Color | Black |
| Schedule B | 8536694040 |
| Termination Post Length | 10 mm |
Stock: 213
Distributors
pcbx
pcbxUnit Price$0.79509
Ext.Price$0.79509
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.79509 | $0.79509 |
| 10 | $0.73411 | $7.34110 |
| 25 | $0.67780 | $16.94500 |
| 50 | $0.62581 | $31.29050 |
| 100 | $0.50697 | $50.69700 |
| 300 | $0.46784 | $140.35200 |
| 500 | $0.43174 | $215.87000 |
| 1000 | $0.34454 | $344.54000 |
| 3000 | $0.28616 | $858.48000 |
| 5000 | $0.23767 | $1188.35000 |
| 10000 | $0.16927 | $1692.70000 |
