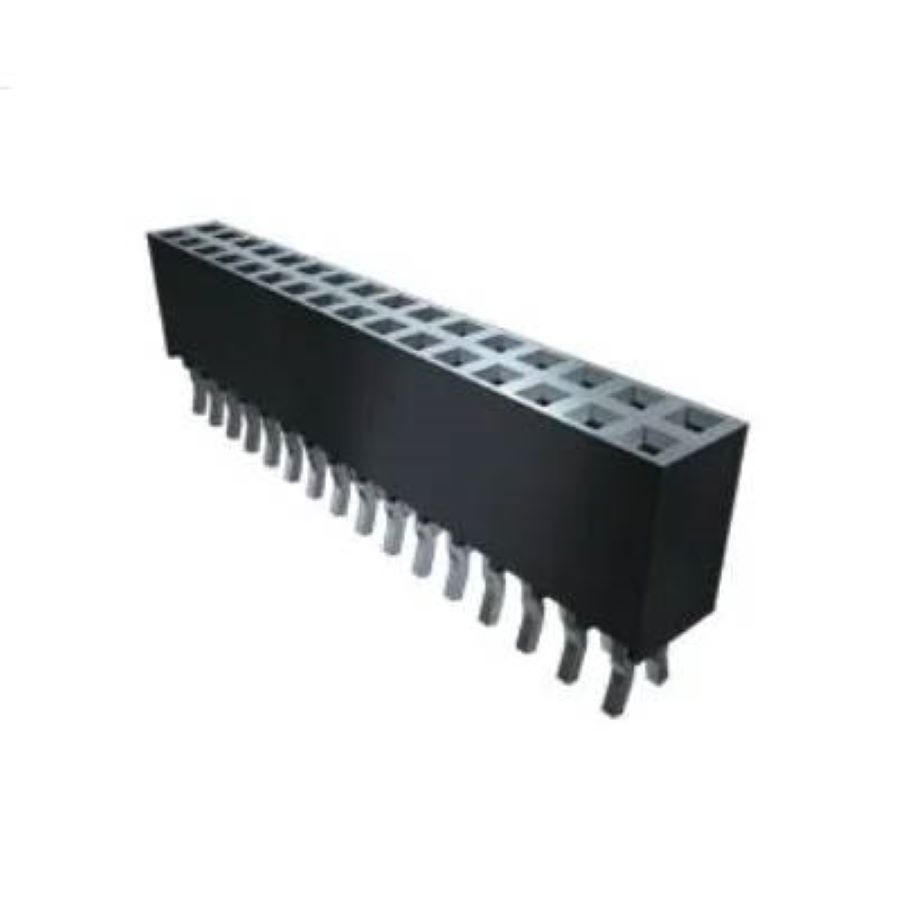

SSQ-105-01-F-D
Manufacturer:
Samtec
Mfr.Part #:
SSQ-105-01-F-D
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 655 V |
| Length | 13.21 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 465 V |
| Packaging | Bulk |
| Depth | 4.95 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Lead Length | 2.64 mm |
| Pitch | 2.54 mm |
| Max Current Rating | 7.6 A |
| Orientation | Straight |
| Gender | Socket (Female) |
| Number of Contacts | 10 |
| Connector Type | Receptacle |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polymer |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 550 V |
| Housing Color | Black |
| Termination Post Length | 2.64 mm |
Stock: 246
Distributors
pcbx
pcbxUnit Price$1.19519
Ext.Price$1.19519
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.19519 | $1.19519 |
| 10 | $1.10273 | $11.02730 |
| 25 | $1.01742 | $25.43550 |
| 50 | $0.93871 | $46.93550 |
| 100 | $0.75747 | $75.74700 |
| 300 | $0.69877 | $209.63100 |
| 500 | $0.64462 | $322.31000 |
| 1000 | $0.51296 | $512.96000 |
| 3000 | $0.42763 | $1282.89000 |
| 5000 | $0.35650 | $1782.50000 |
| 10000 | $0.25648 | $2564.80000 |
