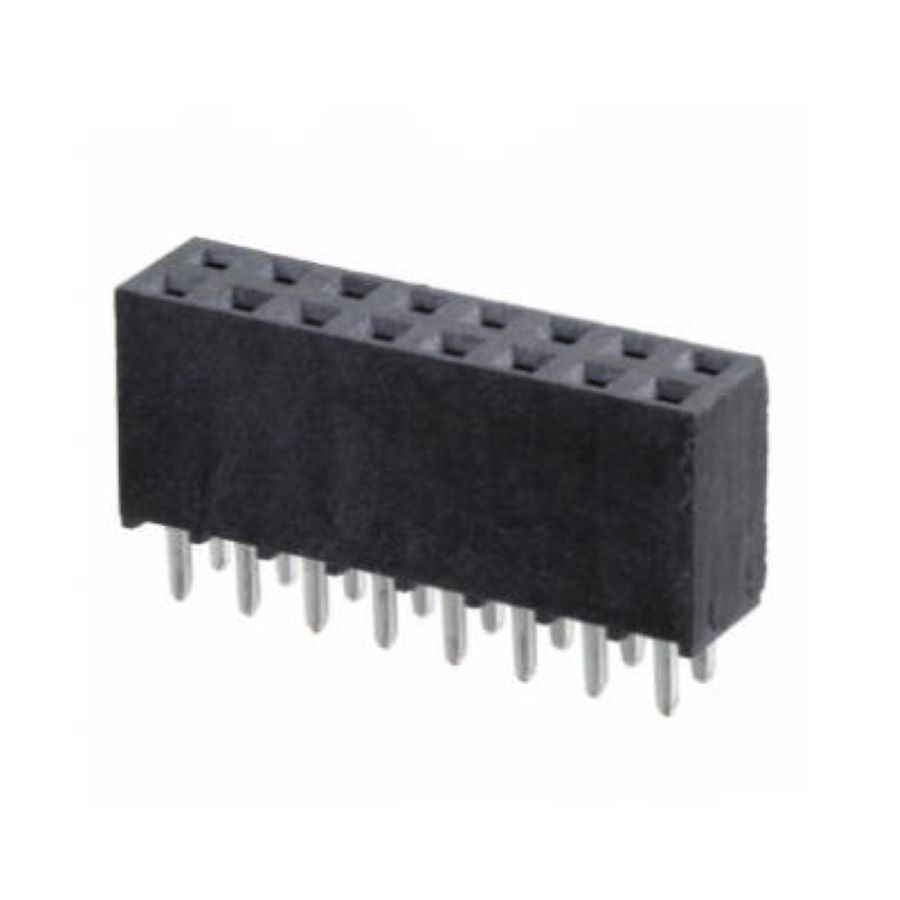

SSQ-108-01-F-D
Manufacturer:
Samtec
Mfr.Part #:
SSQ-108-01-F-D
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:16 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 655 V |
| Length | 20.83 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 465 V |
| Packaging | Bulk |
| Depth | 4.95 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Lead Length | 2.64 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Max Current Rating | 7.6 A |
| Orientation | Straight |
| Gender | Socket (Female) |
| Number of Contacts | 16 |
| Connector Type | Receptacle |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polymer |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 550 V |
| Housing Color | Black |
| Termination Post Length | 2.64 mm |
Stock: 276
Distributors
pcbx
pcbxUnit Price$1.43970
Ext.Price$1.43970
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.43970 | $1.43970 |
| 10 | $1.35083 | $13.50830 |
| 25 | $1.26744 | $31.68600 |
| 50 | $1.18920 | $59.46000 |
| 100 | $1.00796 | $100.79600 |
| 300 | $0.94987 | $284.96100 |
| 500 | $0.89511 | $447.55500 |
| 1000 | $0.71301 | $713.01000 |
| 3000 | $0.59358 | $1780.74000 |
| 5000 | $0.49415 | $2470.75000 |
| 10000 | $0.35650 | $3565.00000 |
