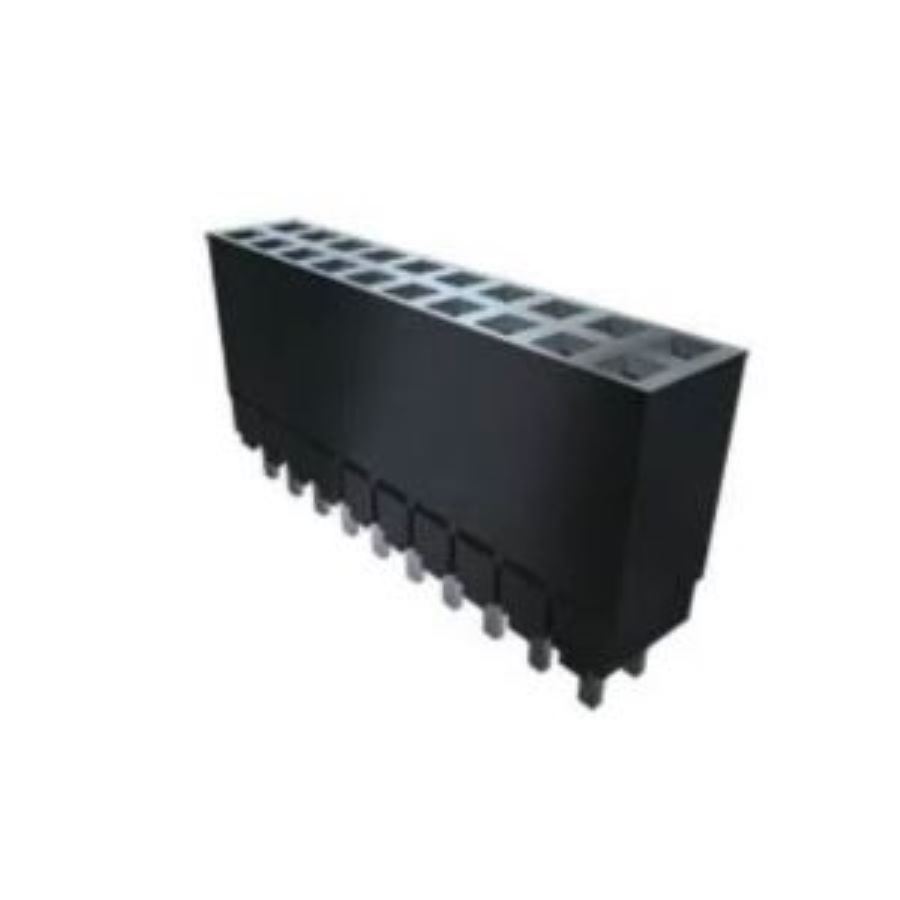

SSQ-108-03-T-D
Manufacturer:
Samtec
Mfr.Part #:
SSQ-108-03-T-D
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle, Socket Number of Positions:16 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 655 V |
| Length | 20.83 mm |
| Width | 4.95 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 465 V |
| Packaging | Bulk |
| Depth | 4.95 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Max Current Rating | 7.6 A |
| Orientation | Straight |
| Color | Black |
| Gender | Female |
| Number of Contacts | 16 |
| Connector Type | Receptacle, Socket |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polymer |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 550 V |
| Housing Color | Black |
Stock: 868
Distributors
pcbx
pcbxUnit Price$1.22683
Ext.Price$1.22683
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.22683 | $1.22683 |
| 10 | $1.15132 | $11.51320 |
| 25 | $1.08045 | $27.01125 |
| 50 | $1.01394 | $50.69700 |
| 100 | $0.85750 | $85.75000 |
| 300 | $0.80911 | $242.73300 |
| 500 | $0.76345 | $381.72500 |
| 1000 | $0.60700 | $607.00000 |
| 3000 | $0.50837 | $1525.11000 |
| 5000 | $0.42576 | $2128.80000 |
| 10000 | $0.30008 | $3000.80000 |
