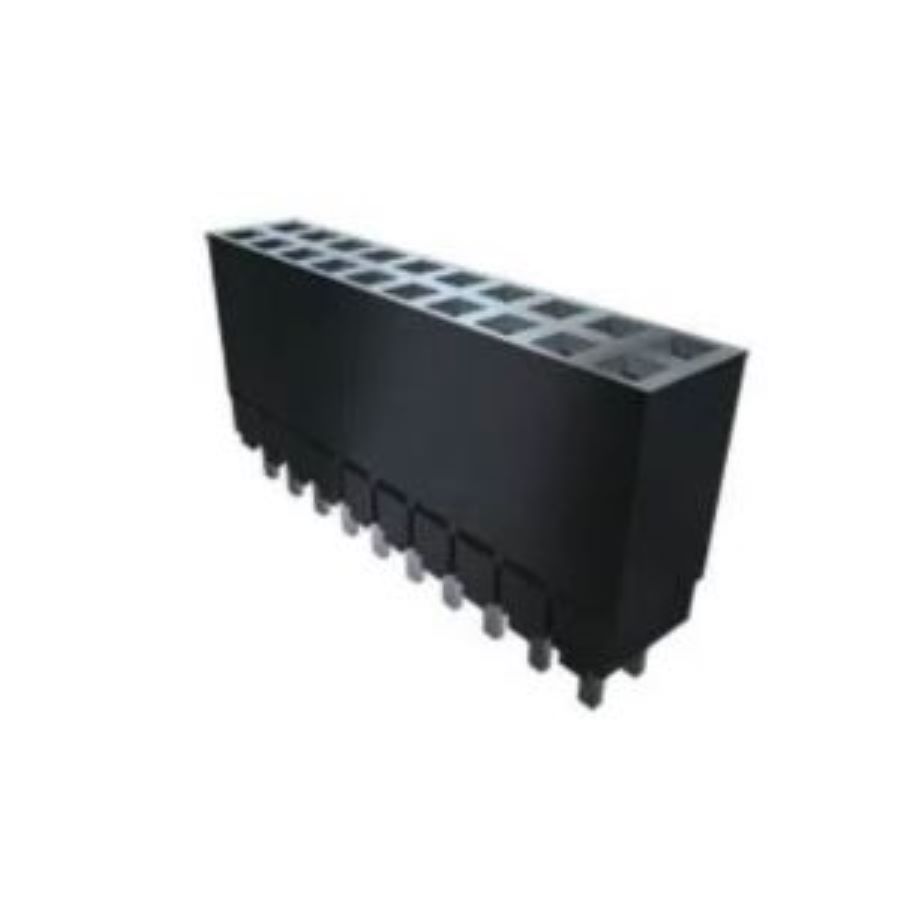

SSQ-110-03-T-D
Manufacturer:
Samtec
Mfr.Part #:
SSQ-110-03-T-D
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:20 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 655 V |
| Length | 25.9 mm |
| Width | 4.95 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 465 V |
| Height | 8.51 mm |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Color | Black |
| Gender | Socket (Female) |
| Number of Contacts | 20 |
| Connector Type | Receptacle |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Plastic |
| Housing Color | Black |
| Termination Post Length | 10 mm |
Stock: 3078
Distributors
pcbx
pcbxUnit Price$1.53289
Ext.Price$1.53289
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.53289 | $1.53289 |
| 10 | $1.43761 | $14.37610 |
| 25 | $1.34825 | $33.70625 |
| 50 | $1.26444 | $63.22200 |
| 100 | $1.07636 | $107.63600 |
| 300 | $1.01203 | $303.60900 |
| 500 | $0.95154 | $475.77000 |
| 1000 | $0.75747 | $757.47000 |
| 3000 | $0.63108 | $1893.24000 |
| 5000 | $0.52578 | $2628.90000 |
| 10000 | $0.37531 | $3753.10000 |
