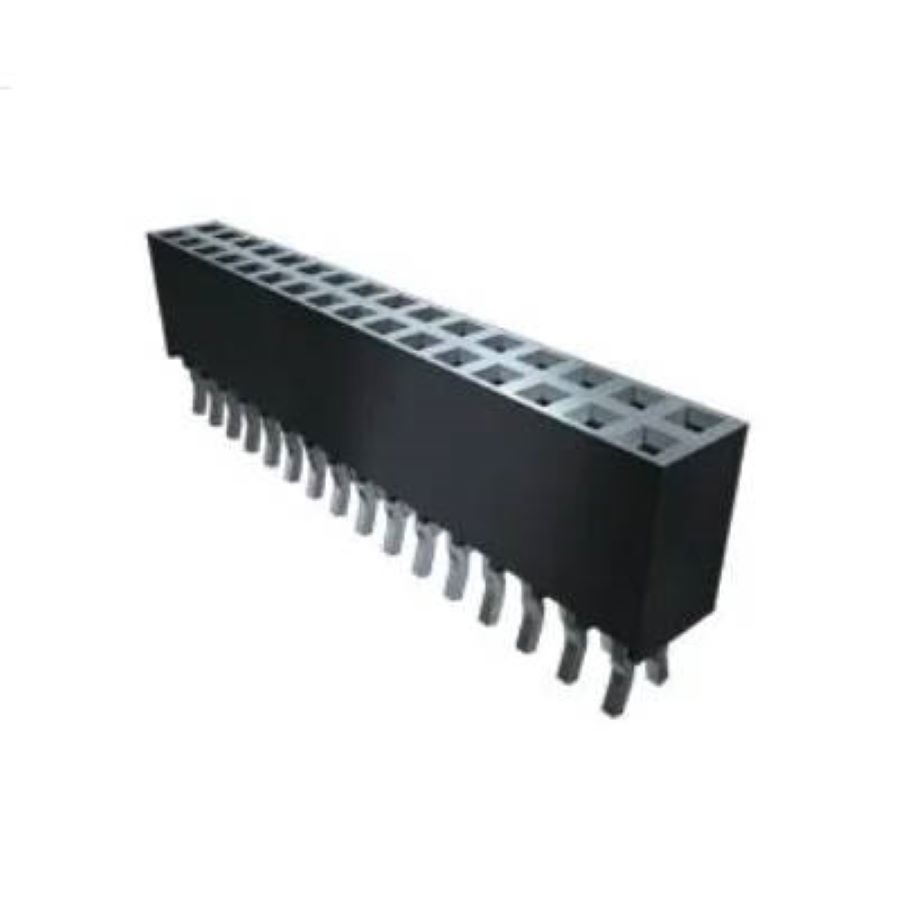

SSQ-117-03-G-D
Manufacturer:
Samtec
Mfr.Part #:
SSQ-117-03-G-D
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:34 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 655 V |
| Length | 43.69 mm |
| Width | 4.95 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 465 V |
| Packaging | Bulk |
| Depth | 4.95 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Pitch | 2.54 mm |
| Max Current Rating | 7.6 A |
| Orientation | Straight |
| Color | Black |
| Gender | Socket (Female) |
| Number of Contacts | 34 |
| Connector Type | Receptacle |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polymer |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 550 V |
| Housing Color | Black |
| Termination Post Length | 10 mm |
Stock: 41
Distributors
pcbx
pcbxUnit Price$3.69843
Ext.Price$3.69843
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.69843 | $3.69843 |
| 10 | $3.53538 | $35.35380 |
| 25 | $3.37954 | $84.48850 |
| 50 | $3.14187 | $157.09350 |
| 100 | $2.99140 | $299.14000 |
| 300 | $2.72287 | $816.86100 |
| 500 | $2.47844 | $1239.22000 |
| 1000 | $2.14673 | $2146.73000 |
| 3000 | $1.67188 | $5015.64000 |
| 5000 | $1.30206 | $6510.30000 |
