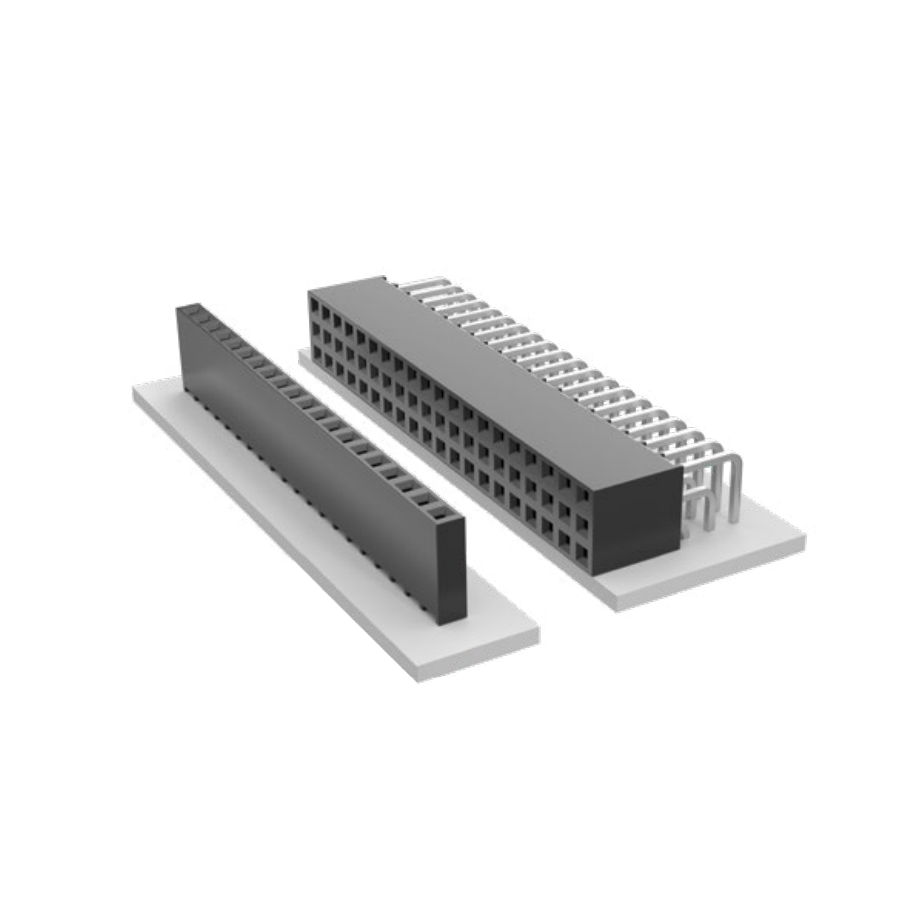

SSW-106-02-G-D-RA
Manufacturer:
Samtec
Mfr.Part #:
SSW-106-02-G-D-RA
Datasheet:
Description:
Board to Board Connectors Through Hole Receptacle, Socket Number of Positions:12 Number of Rows:2 Row Spacing:2.54 mm Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 655 V |
| Length | 15.75 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 465 V |
| Packaging | Bulk |
| Voltage Rating | 465 VAC, 655 VDC |
| Depth | 12.57 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 2.54 mm |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 2.54 mm |
| Current Rating | 4.7 A |
| Max Current Rating | 6.9 A |
| Orientation | Right Angle |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 12 |
| Connector Type | Receptacle, Socket |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 550 V |
| Housing Color | Black |
| Mounting Angle | Right Angle |
Stock: 1156
Distributors
pcbx
pcbxUnit Price$1.52092
Ext.Price$1.52092
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.52092 | $1.52092 |
| 10 | $1.48233 | $14.82330 |
| 25 | $1.44472 | $36.11800 |
| 50 | $1.40807 | $70.40350 |
| 100 | $1.19519 | $119.51900 |
| 300 | $1.12744 | $338.23200 |
| 500 | $1.06353 | $531.76500 |
| 1000 | $0.83270 | $832.70000 |
| 3000 | $0.68753 | $2062.59000 |
| 5000 | $0.56767 | $2838.35000 |
| 10000 | $0.50270 | $5027.00000 |
