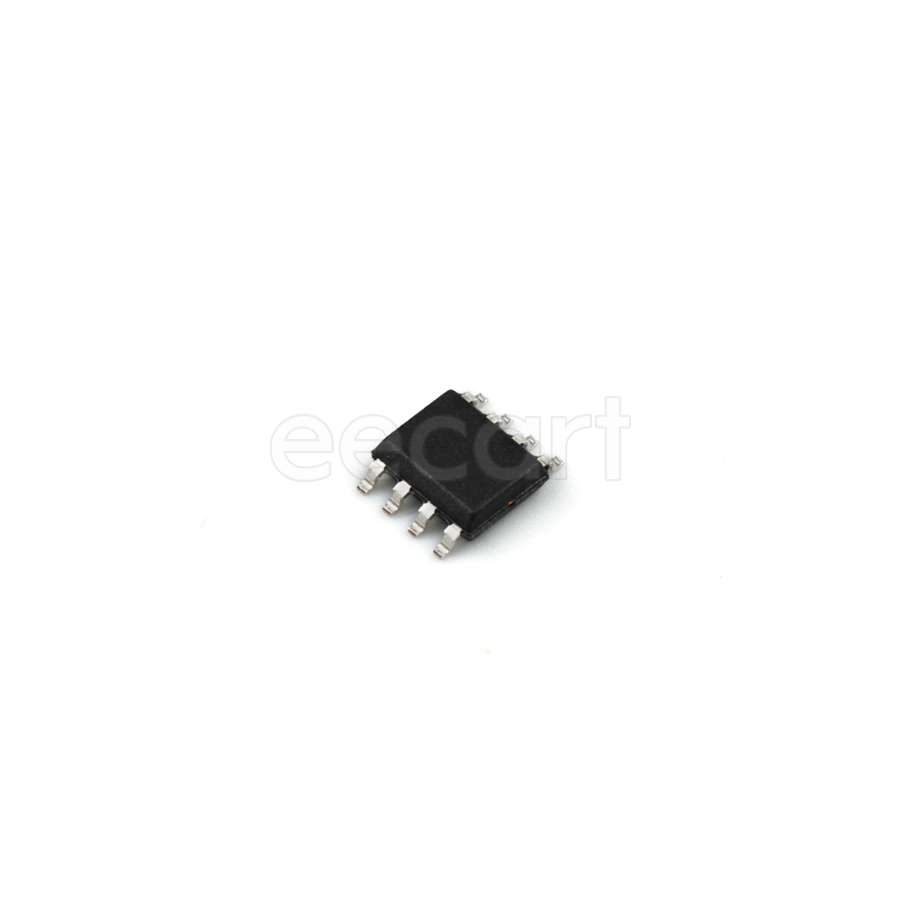

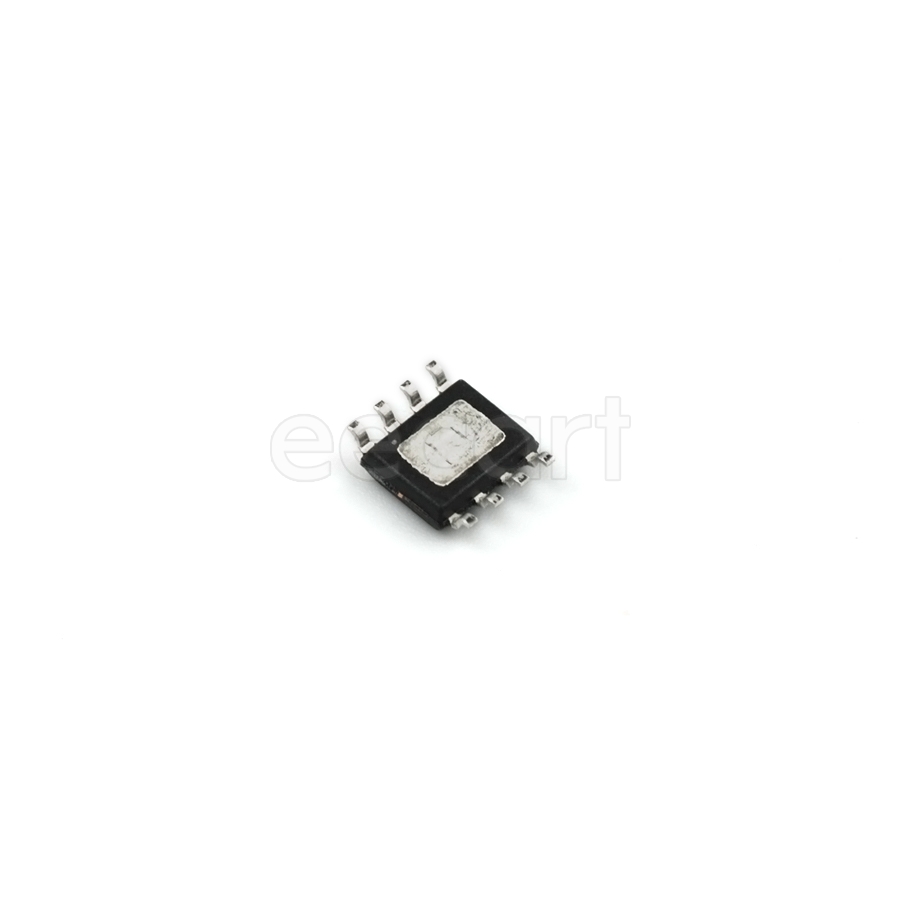

ST1S10PHR
Manufacturer:
STMicroelectronics
Mfr.Part #:
ST1S10PHR
Datasheet:
Description:
Voltage Regulators - Switching SOIC-8 EP SMD/SMT Buck Adjustable 15.3 V
| Parameter | Value |
|---|---|
| Length | 5 mm |
| Width | 4 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 1.25 mm |
| Radiation Hardening | No |
| Manufacturer Package Identifier | 7195016_D |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Min Input Voltage | 2.5 V |
| Output Current | 3 A |
| Output Voltage | 15.3 V |
| Operating Supply Voltage | 18 V |
| Output Type | Adjustable |
| Max Output Current | 3 A |
| Number of Channels | 1 |
| Synchronous Rectifier | Yes |
| Output Configuration | Positive |
| Switching Frequency | 900 kHz |
| Max Input Voltage | 18 V |
| Number of Outputs | 1 |
| Efficiency | 90 % |
| Min Output Voltage | 800 mV |
| Max Output Voltage | 16.2 V |
| Topology | Buck |
| Quiescent Current | 1.5 mA |
| Packaging | Reel |
| Function | Step-Down |
| RoHS | Compliant |
Stock: 1802
Distributors
pcbx
pcbxUnit Price$0.85613
Ext.Price$0.85613
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.85613 | $0.85613 |
| 10 | $0.68486 | $6.84860 |
| 25 | $0.62441 | $15.61025 |
| 50 | $0.56930 | $28.46500 |
| 100 | $0.51905 | $51.90500 |
| 300 | $0.49314 | $147.94200 |
| 500 | $0.46851 | $234.25500 |
| 1000 | $0.44096 | $440.96000 |
