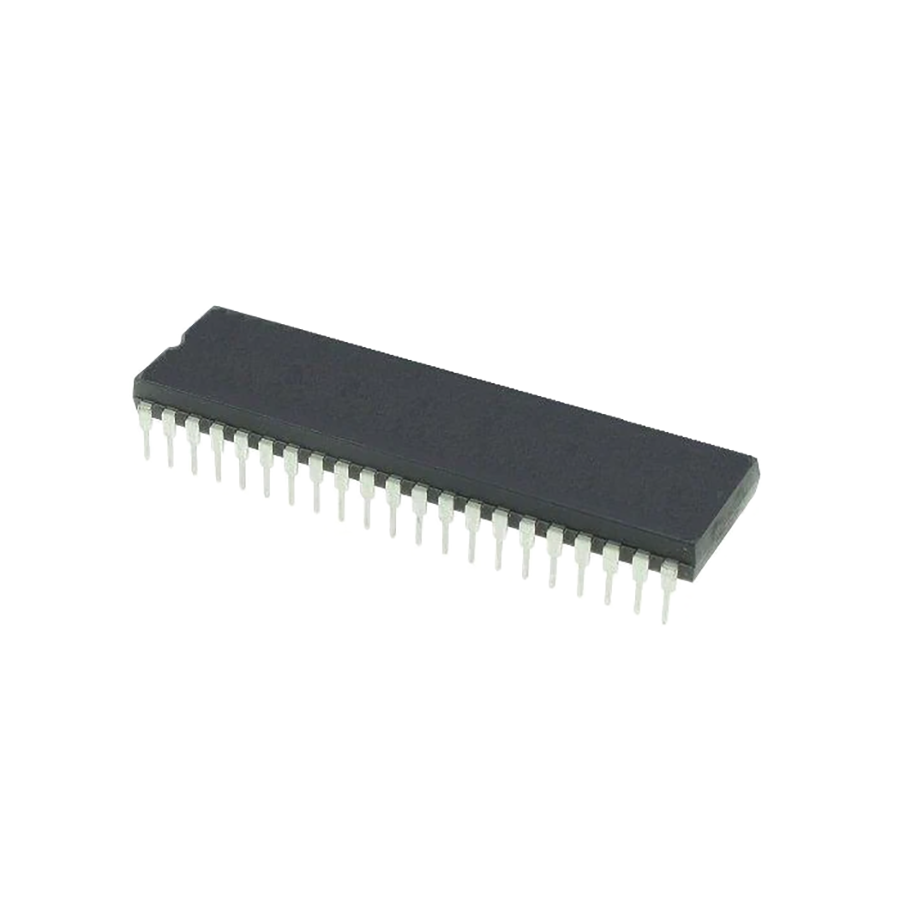

ST72C314J4B6
Manufacturer:
STMicroelectronics
Mfr.Part #:
ST72C314J4B6
Datasheet:
Description:
Microcontrollers PDIP-42 Through Hole 8 bit 16 kb FLASH
| Parameter | Value |
|---|---|
| Length | 37.08 mm |
| Width | 14.48 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 42 |
| Height | 4.57 mm |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| Frequency | 8 MHz |
| Core Architecture(core/core processor) | ST7 |
| Interface | SCI, SPI |
| Memory Size | 16 kb |
| Memory Type | FLASH |
| Number of I/Os | 32 |
| Operating Supply Voltage | 3.2 V to 5.5 V |
| Max Power Dissipation | 500 mW |
| Max Supply Voltage | 5 V |
| Min Supply Voltage | 3.2 V |
| Number of ADC Channels | 8 |
| Max Frequency | 8 MHz |
| RAM Size | 512 B |
| Data Bus Width | 8 bit |
| Number of Programmable I/O | 32 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 2 |
| Number of UART Channels | 1 |
| Max Clock Frequency | 8 MHz |
| ADC Resolution | 8 bit |
