STB47N50DM6AG
Manufacturer:
STMicroelectronics
Mfr.Part #:
STB47N50DM6AG
Datasheet:
Description:

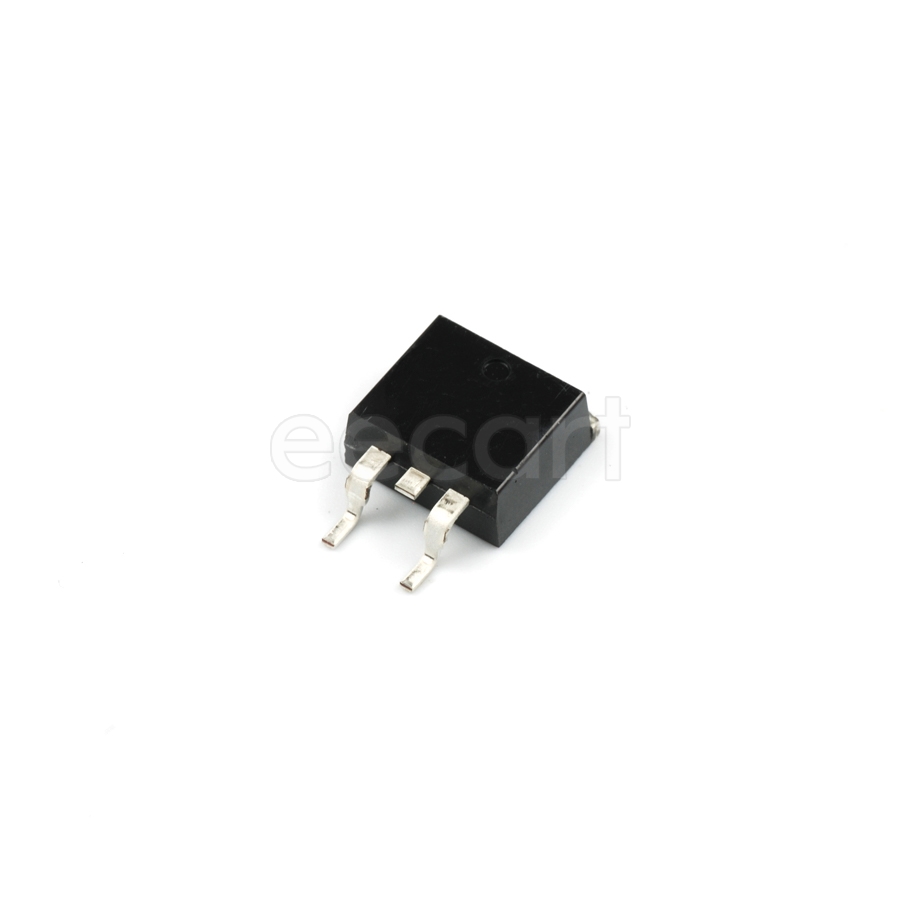

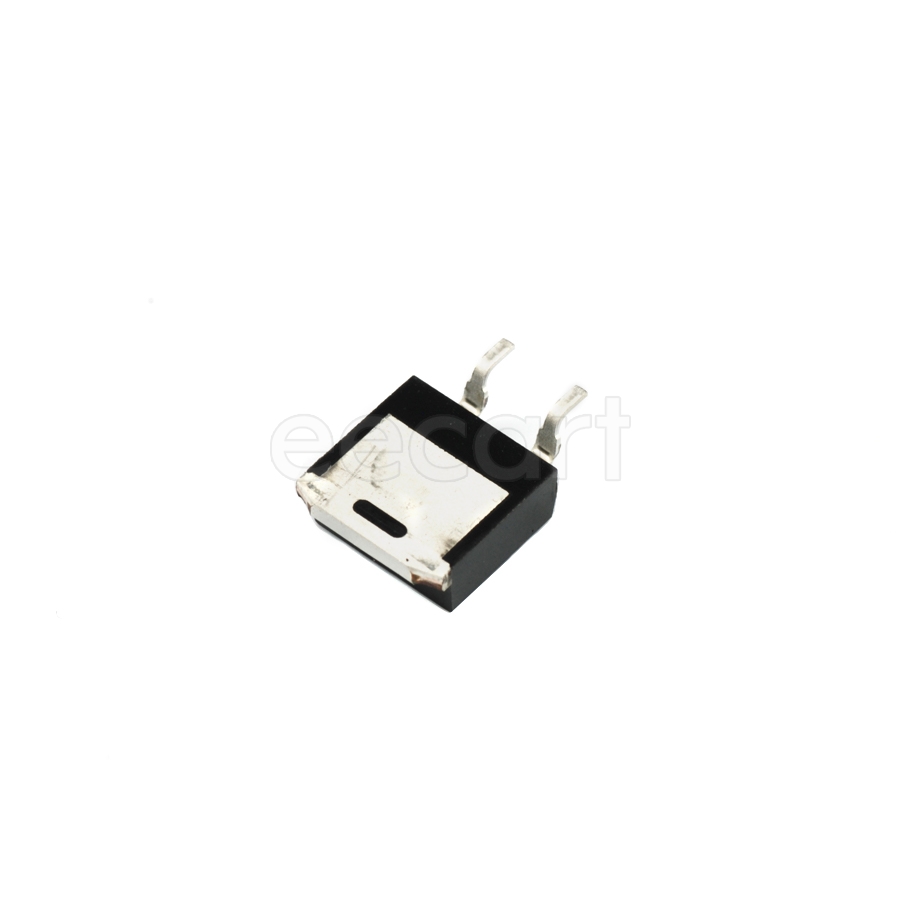

MOSFETs D2PAK SMD/SMT N-Channel number of channels:1 250 W 500 V Continuous Drain Current (ID):38 A 57 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Lifecycle Status | Production (Last Updated: 6 months ago) |
| Power Dissipation | 250 W |
| Number of Channels | 1 |
| Continuous Drain Current (ID) | 38 A |
| Gate Charge | 57 nC |
| Drain to Source Resistance | 71 mΩ |
| Gate to Source Voltage (Vgs) | -25 V, 25 V |
| Drain to Source Breakdown Voltage (Vds) | 500 V |
| Gate to Source Threshold Voltage | 3 V |
| FET Type(Transistor Polarity) | N-Channel |
Stock: 904
Distributors
pcbx
pcbxUnit Price$4.36090
Ext.Price$4.36090
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.36090 | $4.36090 |
| 10 | $2.94376 | $29.43760 |
| 25 | $2.66611 | $66.65275 |
| 50 | $2.41465 | $120.73250 |
| 100 | $2.18691 | $218.69100 |
| 300 | $2.04441 | $613.32300 |
| 500 | $1.91120 | $955.60000 |
| 1000 | $1.78668 | $1786.68000 |
