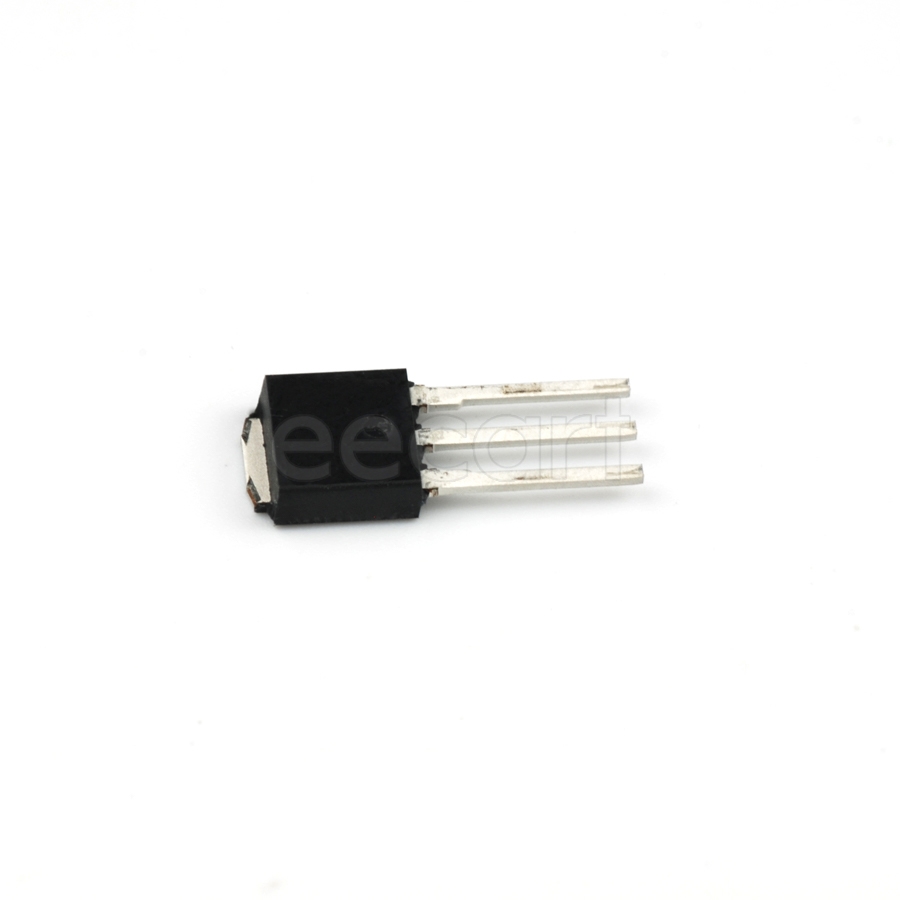

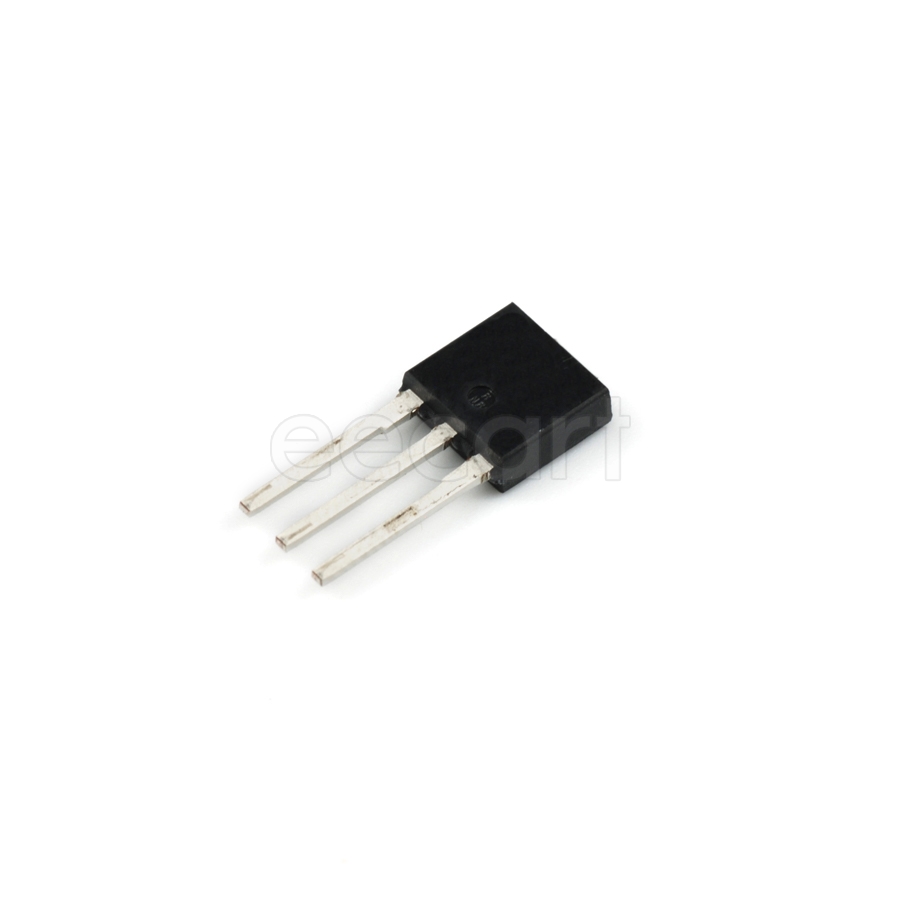

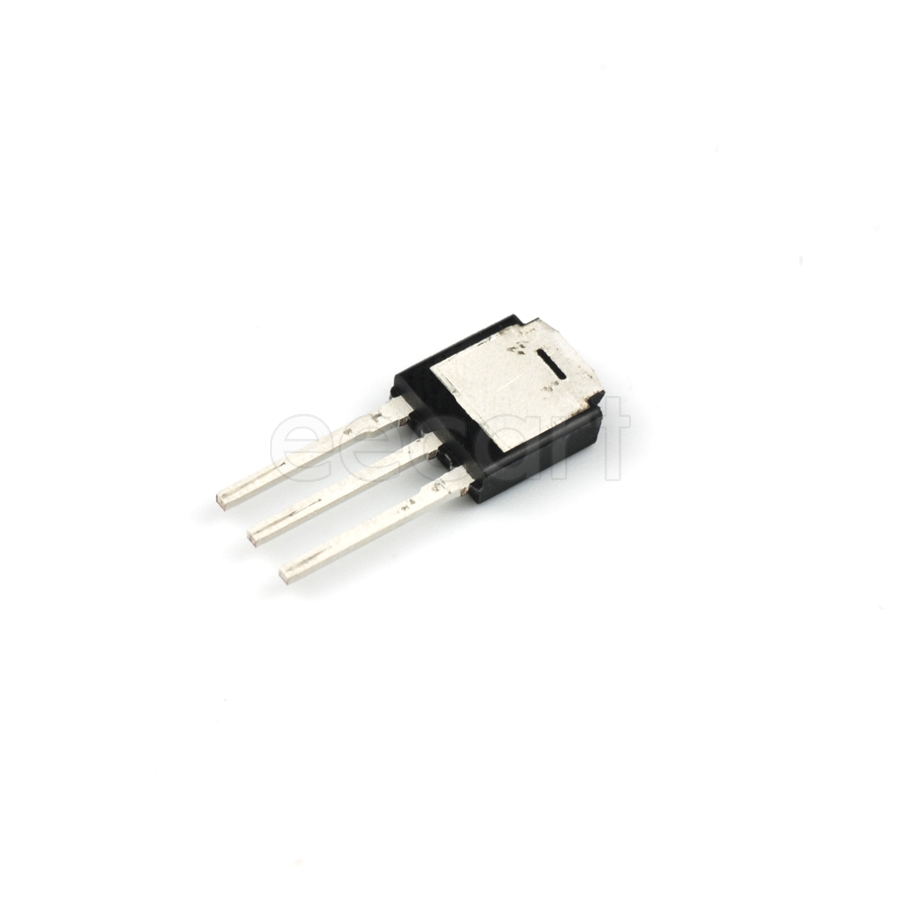

STD1NK60-1
Manufacturer:
STMicroelectronics
Mfr.Part #:
STD1NK60-1
Datasheet:
Description:
MOSFETs I-Pak Through Hole N-Channel number of channels:1 30 W 600 V Continuous Drain Current (ID):1 A 7 nC
| Parameter | Value |
|---|---|
| Length | 6.6 mm |
| Width | 6.2 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 3 |
| Height | 2.4 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Number of Elements | 1 |
| Lifecycle Status | Production (Last Updated: 2 months ago) |
| Max Power Dissipation | 30 W |
| Power Dissipation | 30 W |
| Threshold Voltage | 3 V |
| Number of Channels | 1 |
| Input capacitance | 156 pF |
| Continuous Drain Current (ID) | 1 A |
| Rds On Max | 8.5 Ω |
| Drain to Source Voltage (Vdss) | 600 V |
| FET Type(Transistor Polarity) | N-Channel |
| Turn-On Delay Time | 6.5 ns |
| Turn-Off Delay Time | 19 ns |
| Element Configuration | Single |
| Rise Time | 5 ns |
| Gate Charge | 7 nC |
| Drain to Source Resistance | 8 Ω |
| Gate to Source Voltage (Vgs) | 30 V |
| Drain to Source Breakdown Voltage (Vds) | 600 V |
| Gate to Source Threshold Voltage | 2.25 V |
Stock: 1
Distributors
pcbx
pcbxUnit Price$0.29789
Ext.Price$0.29789
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.29789 | $0.29789 |
| 10 | $0.29050 | $2.90500 |
| 25 | $0.28852 | $7.21300 |
| 50 | $0.28655 | $14.32750 |
| 100 | $0.28460 | $28.46000 |
