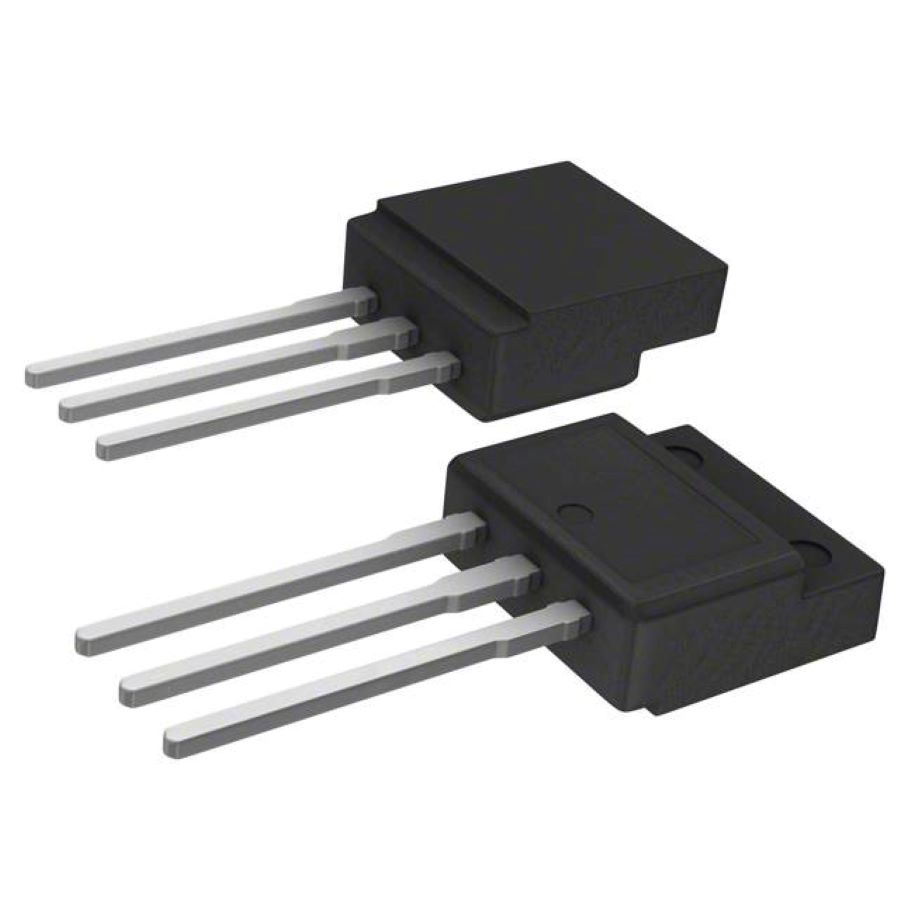

STFI6N65K3
Manufacturer:
STMicroelectronics
Mfr.Part #:
STFI6N65K3
Datasheet:
Description:
MOSFETs TO-281-3 Through Hole N-Channel number of channels:1 30 W 650 V Continuous Drain Current (ID):5.4 A 33 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 3 |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| Max Power Dissipation | 30 W |
| Power Dissipation | 30 W |
| Number of Channels | 1 |
| Input capacitance | 880 pF |
| Continuous Drain Current (ID) | 5.4 A |
| Rds On Max | 1.3 Ω |
| Drain to Source Voltage (Vdss) | 650 V |
| FET Type(Transistor Polarity) | N-Channel |
| Turn-On Delay Time | 14 ns |
| Turn-Off Delay Time | 44 ns |
| Element Configuration | Single |
| Fall Time | 24 ns |
| Rise Time | 10 ns |
| Gate Charge | 33 nC |
| Drain to Source Resistance | 1.1 Ω |
| Gate to Source Voltage (Vgs) | 30 V |
| Drain to Source Breakdown Voltage (Vds) | 650 V |
| Gate to Source Threshold Voltage | 3.75 V |
Stock: 19
Distributors
pcbx
pcbxUnit Price$5.44781
Ext.Price$5.44781
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.44781 | $5.44781 |
| 10 | $4.72656 | $47.26560 |
| 25 | $4.50119 | $112.52975 |
| 50 | $4.28659 | $214.32950 |
| 100 | $3.96003 | $396.00300 |
| 300 | $3.93626 | $1180.87800 |
| 500 | $3.91259 | $1956.29500 |
