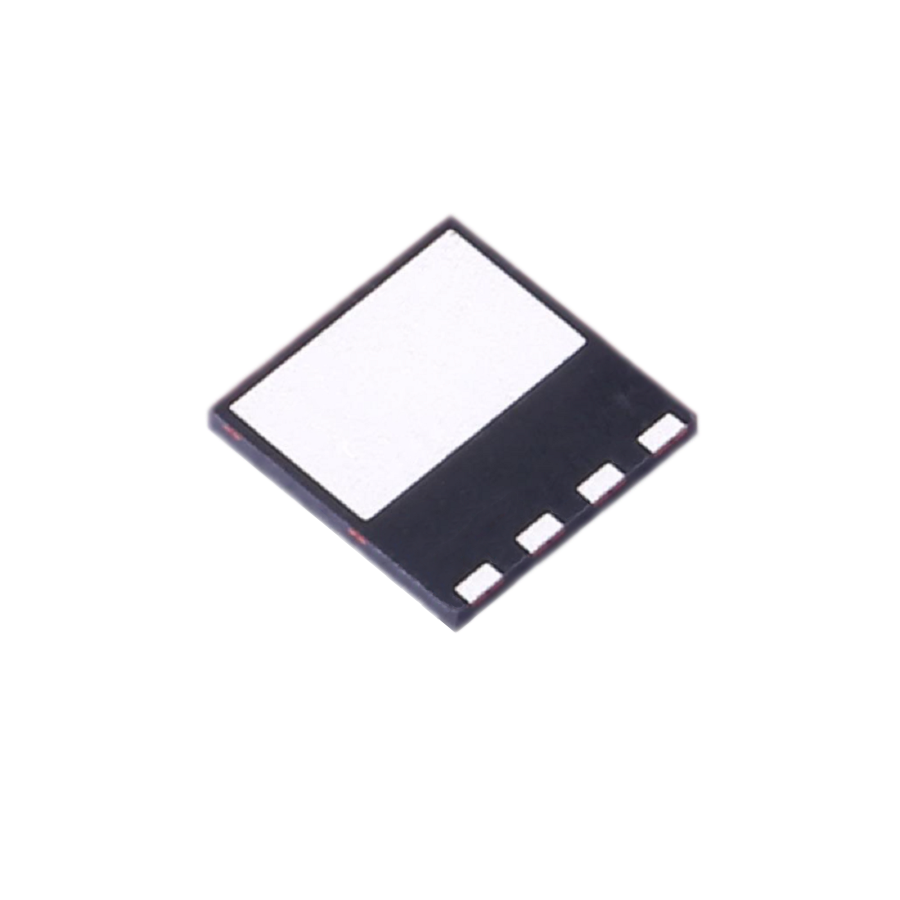

STL57N65M5
Manufacturer:
STMicroelectronics
Mfr.Part #:
STL57N65M5
Datasheet:
Description:
MOSFETs PowerFLAT 8x8 HV SMD/SMT N-Channel number of channels:1 2.8 W 650 V Continuous Drain Current (ID):22.5 A 96 nC
| Parameter | Value |
|---|---|
| Length | 8 mm |
| Width | 8 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 8 |
| Height | 950 µm |
| Packaging | Reel |
| RoHS | Compliant |
| Number of Elements | 1 |
| Output Current | 1.4 A |
| Lifecycle Status | Production (Last Updated: 6 months ago) |
| Max Power Dissipation | 3 W |
| Power Dissipation | 2.8 W |
| Number of Channels | 1 |
| Input capacitance | 4.2 nF |
| Continuous Drain Current (ID) | 22.5 A |
| Rds On Max | 69 mΩ |
| Drain to Source Voltage (Vdss) | 650 V |
| FET Type(Transistor Polarity) | N-Channel |
| Turn-On Delay Time | 84 ns |
| Turn-Off Delay Time | 84 ns |
| Element Configuration | Single |
| Gate Charge | 96 nC |
| Drain to Source Resistance | 61 mΩ |
| Gate to Source Voltage (Vgs) | 25 V |
| Drain to Source Breakdown Voltage (Vds) | 650 V |
| Gate to Source Threshold Voltage | 4 V |
Stock: 1837
Distributors
pcbx
pcbxUnit Price$5.45270
Ext.Price$5.45270
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.45270 | $5.45270 |
| 10 | $4.65619 | $46.56190 |
| 25 | $4.35243 | $108.81075 |
| 50 | $4.06849 | $203.42450 |
| 100 | $3.80308 | $380.30800 |
