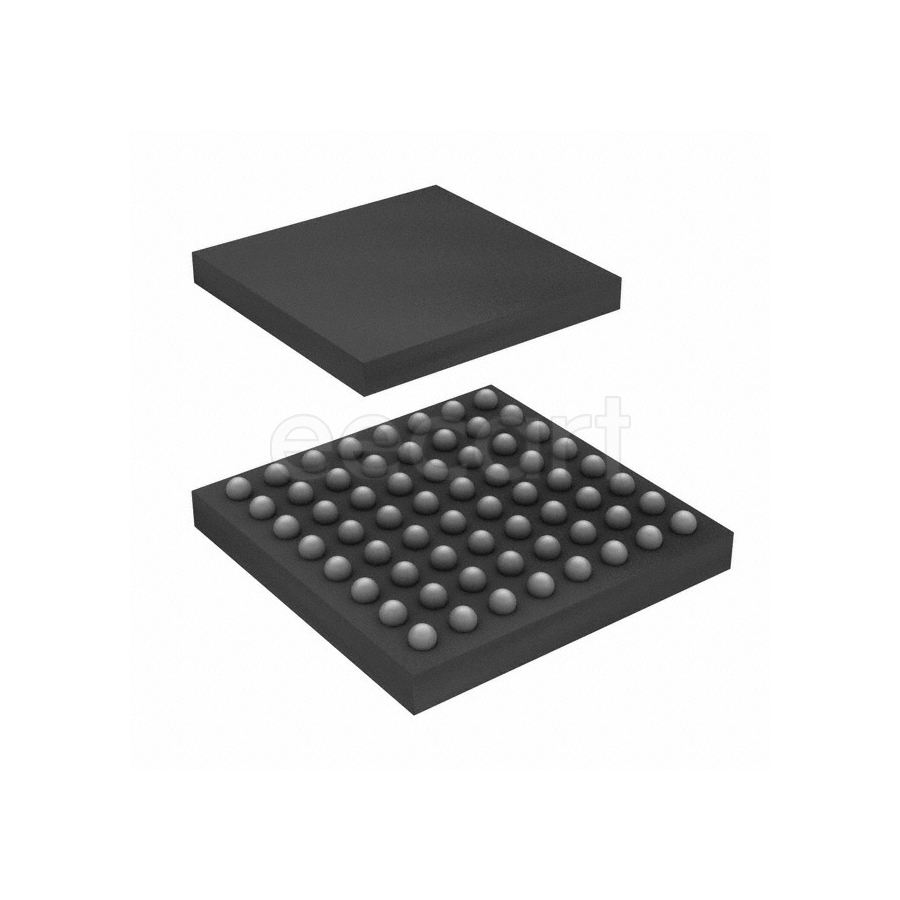

STM32L151R6H6A
Manufacturer:
STMicroelectronics
Mfr.Part #:
STM32L151R6H6A
Datasheet:
Description:
Microcontrollers BGA-64 SMD/SMT 32 bit 32 kb FLASH
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 64 |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Frequency | 32 MHz |
| Core Architecture(core/core processor) | ARM |
| Interface | I²C, IrDA, LIN, SPI, UART, USART, USB |
| Memory Size | 32 kb |
| Memory Type | FLASH |
| Number of I/Os | 51 |
| Oscillator Type | Internal |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Max Power Dissipation | 308 mW |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 1.65 V |
| Max Frequency | 32 MHz |
| Nominal Supply Current | 300 nA |
| RAM Size | 16 kB |
| Data Bus Width | 32 bit |
| Number of Programmable I/O | 50 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 8 |
| Number of D/A Converters | 2 |
| Number of I2C Channels | 2 |
| Flash Memory Size | 32 kB |
| EEPROM Memory Size | 4 kB |
| Number of USART Channels | 3 |
| Operating Supply Voltage | 1.65 V to 3.6 V |
| Packaging | Tray |
