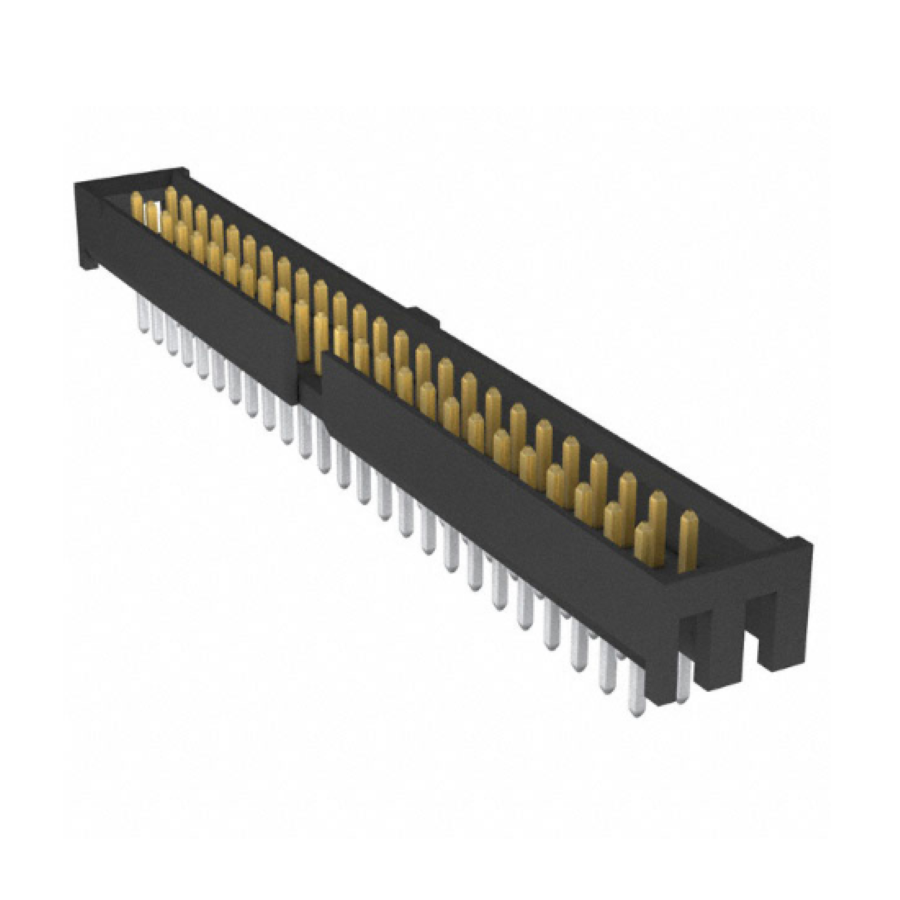

STMM-125-02-L-D
Manufacturer:
Samtec
Mfr.Part #:
STMM-125-02-L-D
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:50 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 56.17 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Depth | 6.51 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Pitch | 2 mm |
| Orientation | Straight |
| Gender | Pin (Male) |
| Number of Contacts | 50 |
| Connector Type | Header |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Row Spacing | 2 mm |
| Housing Material | Nylon |
| Housing Color | Black |
| Mating Post Length | 3.05 mm |
| Termination Post Length | 3 mm |
Stock: 112
Distributors
pcbx
pcbxUnit Price$5.24414
Ext.Price$5.24414
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.24414 | $5.24414 |
| 10 | $4.84403 | $48.44030 |
| 25 | $4.62314 | $115.57850 |
| 50 | $4.41229 | $220.61450 |
| 100 | $3.29148 | $329.14800 |
| 300 | $3.10131 | $930.39300 |
| 500 | $2.92215 | $1461.07500 |
| 1000 | $2.17152 | $2171.52000 |
