E-TDA7396
Manufacturer:
STMicroelectronics
Mfr.Part #:
E-TDA7396
Datasheet:
Description:

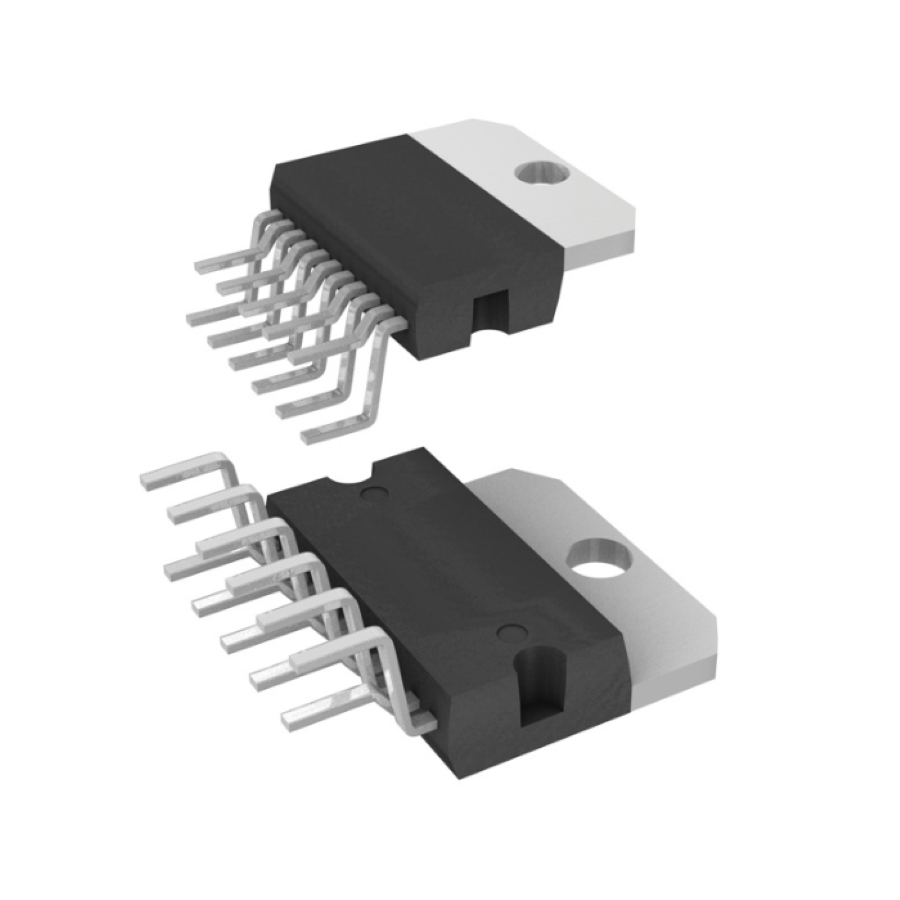

Amplifiers - Audio Multiwatt-11 Through Hole Class AB 45 W
| Parameter | Value |
|---|---|
| Length | 20.2 mm |
| Width | 5 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 11 |
| Height | 17.75 mm |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Type | Class AB |
| Operating Supply Voltage | 15 V |
| Max Power Dissipation | 43 W |
| Max Supply Voltage | 18 V |
| Min Supply Voltage | 8 V |
| Power Dissipation | 43 W |
| Max Output Current | 7 A |
| Number of Channels | 1 |
| Common Mode Rejection Ratio (CMRR) | 70 dB |
| Input Bias Current | 10 µA |
| Supply Type | Single |
| Gain | 26 dB |
| Output Power | 45 W |
| Voltage Gain | 26 dB |
| Max Output Power | 65 W |
| Load Impedance | 4 Ω |
| Schedule B | 8542330000 |
Stock: 1542
Distributors
pcbx
pcbxUnit Price$2.50323
Ext.Price$2.50323
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.50323 | $2.50323 |
| 10 | $2.10313 | $21.03130 |
| 25 | $1.97147 | $49.28675 |
| 50 | $1.92694 | $96.34700 |
| 100 | $1.88341 | $188.34100 |
| 300 | $1.81017 | $543.05100 |
| 500 | $1.73978 | $869.89000 |
| 1000 | $1.72696 | $1726.96000 |
