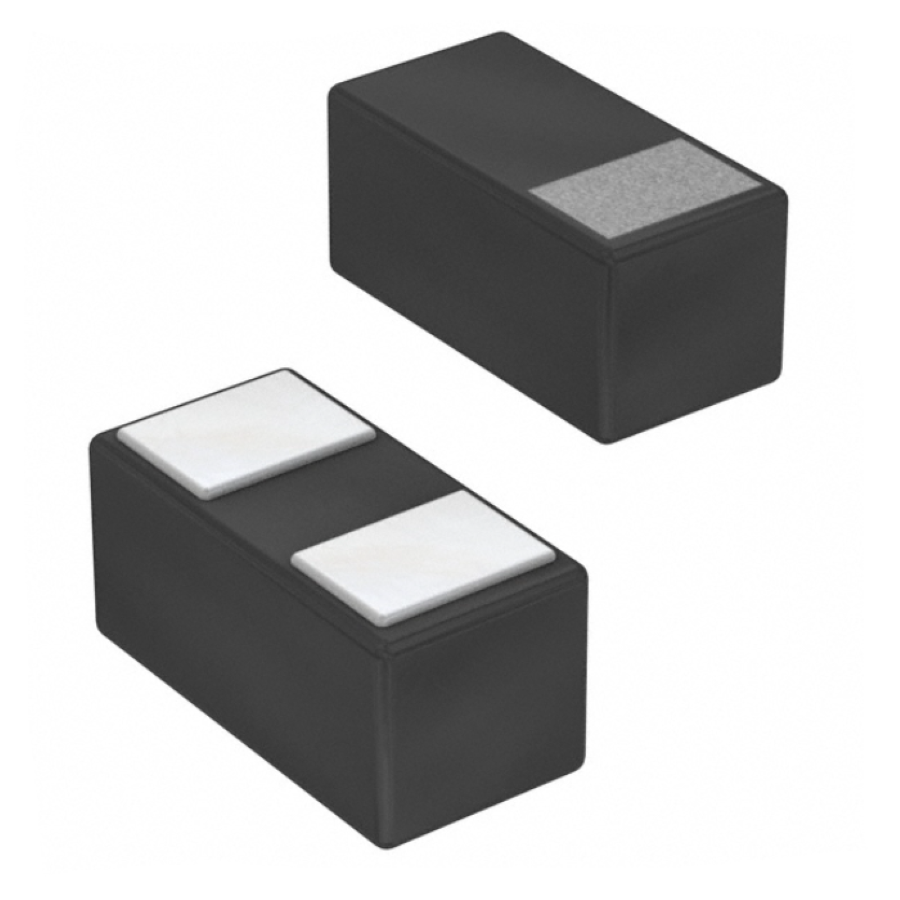

ESDALC6V1-1U2
Manufacturer:
STMicroelectronics
Mfr.Part #:
ESDALC6V1-1U2
Datasheet:
Description:
TVS Diodes 0201(0603 Metric) SMD/SMT Working Voltage:3 V Breakdown Voltage:6.1 V Clamping Voltage:12.2 V Peak Pulse Power:20 W Polarity:Unidirectional
| Parameter | Value |
|---|---|
| Capacitance | 12 pF |
| Length | 600 µm |
| Width | 350 µm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 0201 |
| Case Code (Metric) | 0603 |
| Number of Pins | 2 |
| Leakage Current | 100 nA |
| Composition(Kit Type) | Zener |
| Height | 330 µm |
| Packaging | Reel |
| Depth | 300 µm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Unidirectional |
| REACH SVHC | No SVHC |
| Number of Elements | 1 |
| Working Voltage | 3 V |
| Lifecycle Status | Production (Last Updated: 7 months ago) |
| Max Power Dissipation | 20 W |
| Power Dissipation | 20 W |
| Peak Pulse Current | 2 A |
| Number of Channels | 1 |
| Breakdown Voltage | 6.1 V |
| Max Reverse Leakage Current | 100 nA |
| Max Repetitive Reverse Voltage (Vrrm) | 3 V |
| Element Configuration | Single |
| Direction(Counting Sequence) | Unidirectional |
| Min Breakdown Voltage | 6.1 V |
| Reverse Standoff Voltage | 3 V |
| Clamping Voltage | 12.2 V |
| Peak Pulse Power | 20 W |
| Power Line Protection | No |
| Number of Unidirectional Channels | 1 |
| Reverse Breakdown Voltage | 6.1 V |
| ESD Protection | Yes |
| Test Current | 1 mA |
| Max Junction Temperature (Tj) | 125 °C |
| Max Breakdown Voltage | 8 V |
| Voltage ESD Contact | 8 kV |
| Diode Capacitance | 12 pF |
Stock: 7212
Distributors
pcbx
pcbxUnit Price$0.09600
Ext.Price$0.09600
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.09600 | $0.09600 |
| 10 | $0.04800 | $0.48000 |
| 50 | $0.04316 | $2.15800 |
| 100 | $0.03880 | $3.88000 |
| 500 | $0.03438 | $17.19000 |
| 1000 | $0.03046 | $30.46000 |
| 3000 | $0.02912 | $87.36000 |
| 5000 | $0.02783 | $139.15000 |
| 10000 | $0.02636 | $263.60000 |
