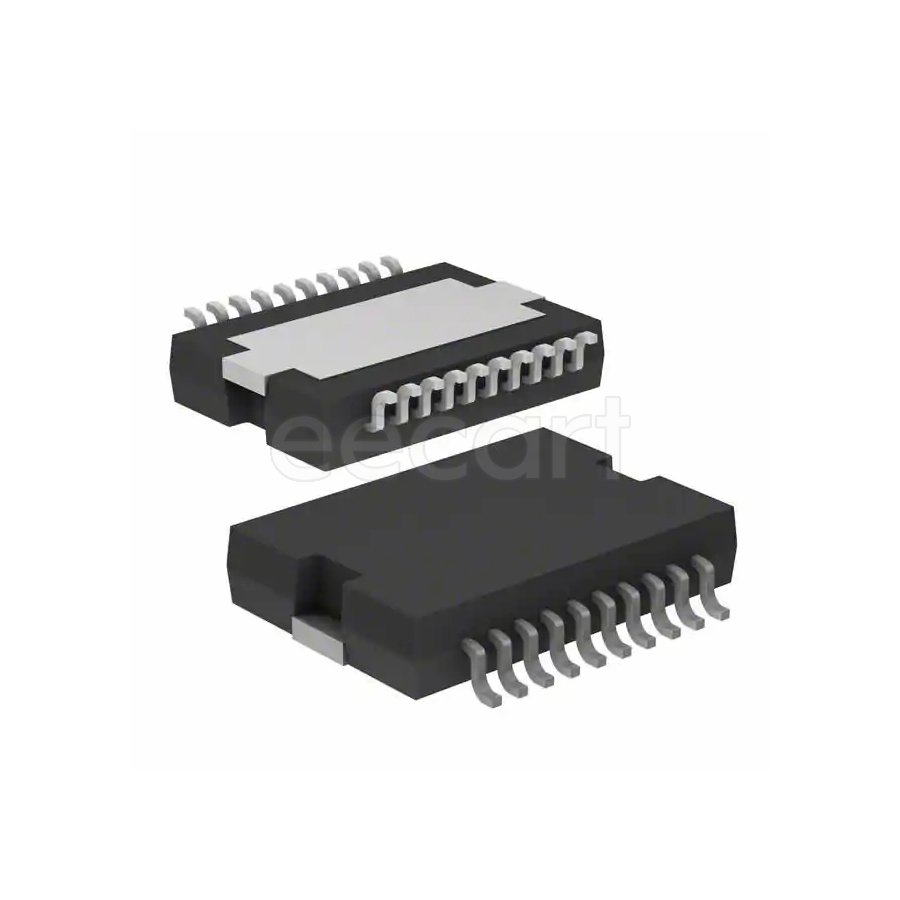

L6225PD
Manufacturer:
STMicroelectronics
Mfr.Part #:
L6225PD
Datasheet:
Description:
Motor Drivers PowerSO-20 SMD/SMT Parallel Load voltage:8 V to 52 V Half Bridge
| Parameter | Value |
|---|---|
| Length | 16 mm |
| Width | 11.1 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 20 |
| Resistance | 730 mΩ |
| Height | 3.3 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Interface | Parallel |
| Output Current | 1.4 A |
| Output Voltage | 52 V |
| Operating Supply Voltage | 48 V |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Max Supply Voltage | 52 V |
| Min Supply Voltage | 8 V |
| Max Output Current | 1.4 A |
| Number of Channels | 2 |
| Max Collector Current | 1.4 A |
| Switching Frequency | 100 kHz |
| Number of Outputs | 4 |
| Motor Type | Brushed |
| Nominal Supply Current | 10 mA |
| Collector Emitter Voltage (VCEO) | 52 V |
| Output Current per Channel | 1.4 A |
| Drain to Source Resistance | 700 mΩ |
| Operating Supply Current | 10 mA |
| Packaging | Tube |
| Output Configuration | Half Bridge |
| Load Voltage | 8 V to 52 V |
| Motor Type - AC, DC | Brushed DC |
| Motor Type - Stepper | Bipolar |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Applications | General Purpose |
| Chemistry/Technology | BiCDMOS |
| RoHS | Compliant |
