STL12P6F6
Manufacturer:
STMicroelectronics
Mfr.Part #:
STL12P6F6
Datasheet:
Description:

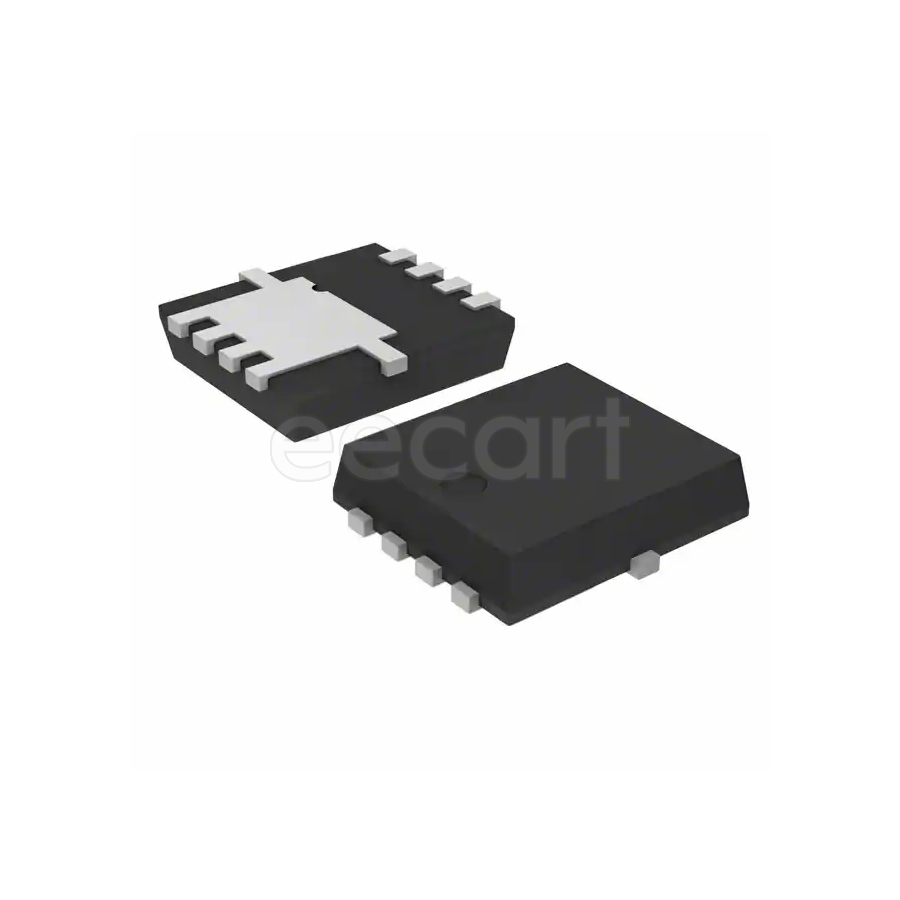

MOSFETs PowerFLAT-8 SMD/SMT P-Channel number of channels:1 75 W -60 V Continuous Drain Current (ID):-12 A 6.4 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 8 |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lifecycle Status | Production (Last Updated: 2 months ago) |
| Max Power Dissipation | 4.8 W |
| Power Dissipation | 75 W |
| Number of Channels | 1 |
| Input capacitance | 340 pF |
| Continuous Drain Current (ID) | -12 A |
| Rds On Max | 160 mΩ |
| Drain to Source Voltage (Vdss) | -60 V |
| FET Type(Transistor Polarity) | P-Channel |
| Turn-On Delay Time | 6.4 ns |
| Turn-Off Delay Time | 14 ns |
| Rise Time | 5.3 ns |
| Gate Charge | 6.4 nC |
| Drain to Source Resistance | 160 mΩ |
| Gate to Source Voltage (Vgs) | 20 V |
| Drain to Source Breakdown Voltage (Vds) | -60 V |
| Schedule B | 8541290080 |
| Gate to Source Threshold Voltage | 4 V |
Stock: 1170
Distributors
pcbx
pcbxUnit Price$0.51980
Ext.Price$0.51980
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.51980 | $0.51980 |
| 10 | $0.43516 | $4.35160 |
| 25 | $0.40783 | $10.19575 |
| 50 | $0.38221 | $19.11050 |
| 100 | $0.35821 | $35.82100 |
| 300 | $0.32926 | $98.77800 |
| 500 | $0.30264 | $151.32000 |
| 1000 | $0.27700 | $277.00000 |
| 3000 | $0.25391 | $761.73000 |
| 5000 | $0.22741 | $1137.05000 |
