STPS10L60D
Manufacturer:
STMicroelectronics
Mfr.Part #:
STPS10L60D
Datasheet:
Description:

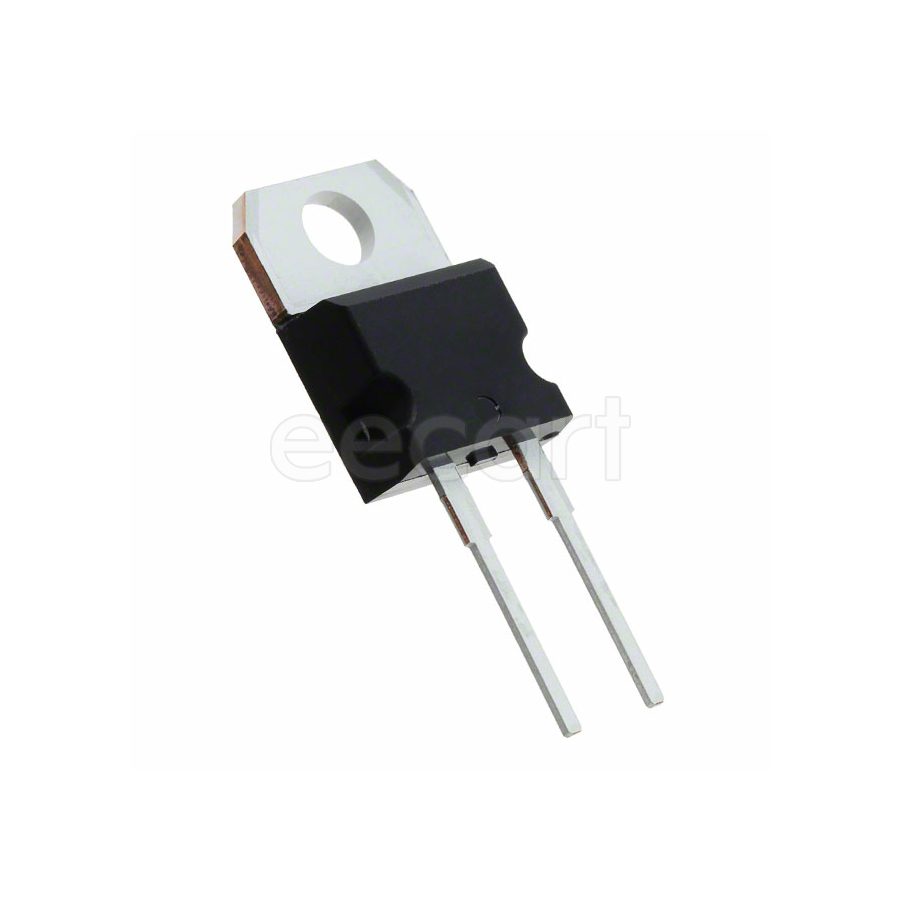

Rectifier Diodes TO-220AC Through Hole Schottky Rectifiers Single Forward Current:10 A Forward Voltage:600 mV
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 60 V |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 2 |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Type | Schottky Rectifiers |
| Current Rating | 10 A |
| Output Current | 10 A |
| Forward Current | 10 A |
| Forward Voltage | 600 mV |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Average Rectified Current | 10 A |
| Max Reverse Voltage (DC) | 60 V |
| Max Reverse Leakage Current | 350 µA |
| Max Repetitive Reverse Voltage (Vrrm) | 60 V |
| Element Configuration | Single |
| Max Surge Current | 220 A |
| Forward Surge Current (Ifsm) | 220 A |
| Max Junction Temperature (Tj) | 150 °C |
| Peak Non-Repetitive Surge Current | 220 A |
| Reverse Current | 350 µA |
Stock: 1423
Distributors
pcbx
pcbxUnit Price$0.46936
Ext.Price$0.46936
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.46936 | $0.46936 |
| 10 | $0.24023 | $2.40230 |
| 25 | $0.24009 | $6.00225 |
| 50 | $0.23995 | $11.99750 |
| 100 | $0.23981 | $23.98100 |
| 300 | $0.23967 | $71.90100 |
| 500 | $0.23953 | $119.76500 |
| 1000 | $0.23938 | $239.38000 |
| 3000 | $0.23156 | $694.68000 |
| 5000 | $0.22399 | $1119.95000 |
| 10000 | $0.22143 | $2214.30000 |
