STTH1512GY-TR
Manufacturer:
STMicroelectronics
Mfr.Part #:
STTH1512GY-TR
Datasheet:
Description:

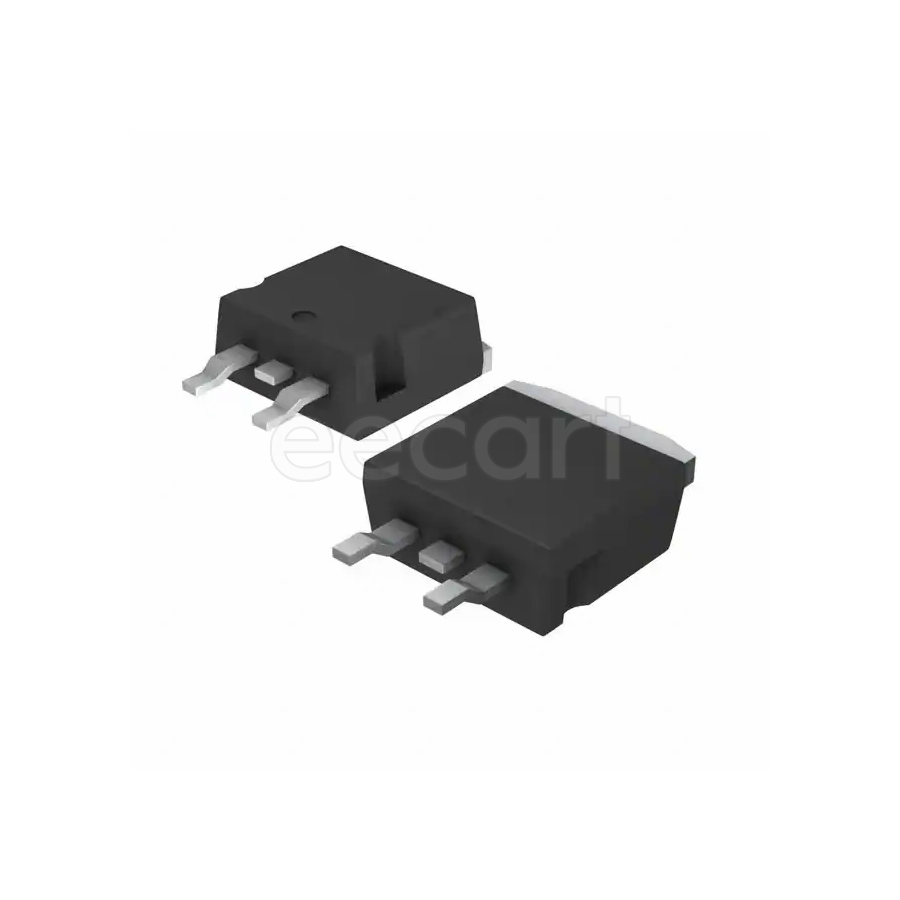

Rectifier Diodes TO-263-3 SMD/SMT Fast Recovery Rectifiers Single Forward Current:15 A Forward Voltage:2.1 V Reverse Voltage:1.2 kV
| Parameter | Value |
|---|---|
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 3 |
| Radiation Hardening | No |
| Forward Current | 15 A |
| Forward Voltage | 2.1 V |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Reverse Recovery Time | 105 ns |
| Average Rectified Current | 15 A |
| Max Reverse Voltage (DC) | 1.2 kV |
| Max Repetitive Reverse Voltage (Vrrm) | 1.2 kV |
| Element Configuration | Single |
| Max Surge Current | 200 A |
| Max Junction Temperature (Tj) | 175 °C |
| Peak Non-Repetitive Surge Current | 200 A |
| Reverse Current | 15 µA |
| Recovery Time | 53 ns |
| Reverse Voltage (DC) | 1.2 kV |
| Schedule B | 8541100080 |
| RoHS | Compliant |
| Packaging | Reel |
| Type | Fast Recovery Rectifiers |
| Forward Surge Current (Ifsm) | 200 A |
| Reverse Voltage | 1.2 kV |
Stock: 31
Distributors
pcbx
pcbxUnit Price$2.69040
Ext.Price$2.69040
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.69040 | $2.69040 |
| 10 | $2.64029 | $26.40290 |
| 25 | $2.62655 | $65.66375 |
| 50 | $2.61288 | $130.64400 |
| 100 | $2.59931 | $259.93100 |
