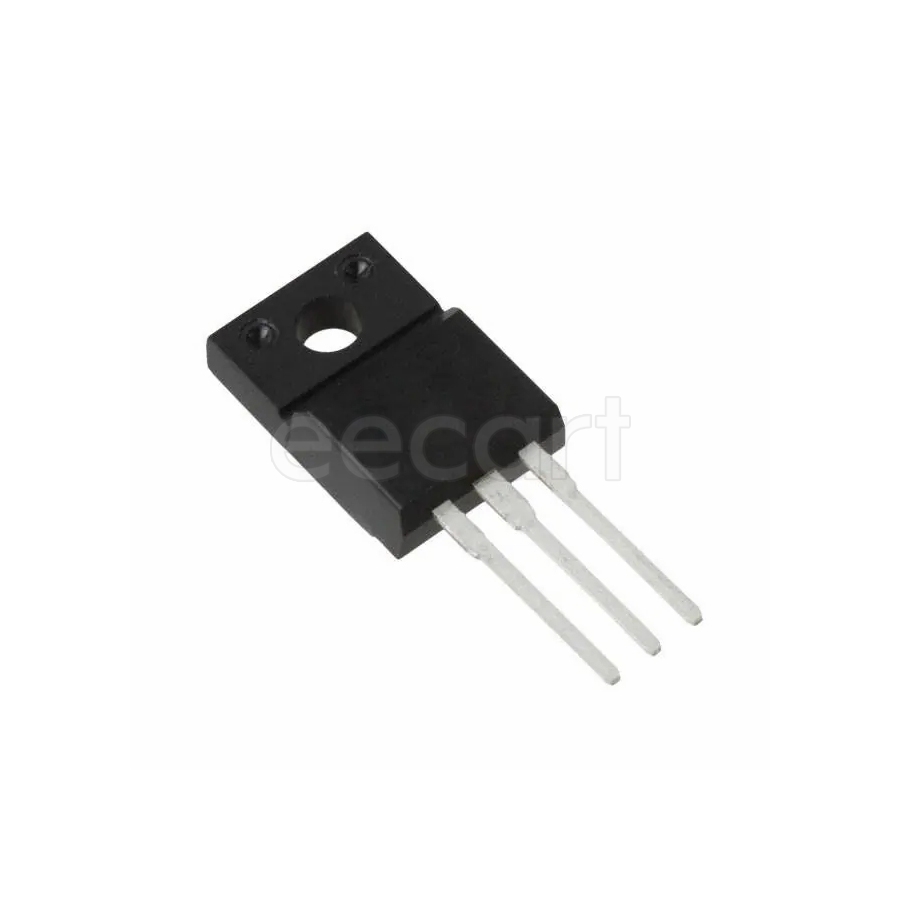

T835T-8FP
Manufacturer:
STMicroelectronics
Mfr.Part #:
T835T-8FP
Datasheet:
Description:
TRIACs TO-220FPAB-3 Through Hole On-State Current:8 A Peak Non-Repetitive Surge Current:60 A Rated Repetitive Off-State Voltage VDRM:800 V Hold Current:40 mA
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 3 |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lifecycle Status | Production (Last Updated: 6 months ago) |
| Hold Current | 40 mA |
| Max Repetitive Reverse Voltage (Vrrm) | 800 V |
| Element Configuration | Single |
| RMS Current (Irms) | 8 A |
| Current - Gate Trigger (Igt) (Max) | 35 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Peak Non-Repetitive Surge Current | 60 A |
| Schedule B | 8541300080 |
| Rated Repetitive Off-State Voltage VDRM | 800 V |
| Off-State Leakage Current @ VDRM IDRM | 5 µA |
| On-State Current | 8 A |
Stock: 31
Distributors
pcbx
pcbxUnit Price$0.76646
Ext.Price$0.76646
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.76646 | $0.76646 |
| 10 | $0.62448 | $6.24480 |
| 25 | $0.58789 | $14.69725 |
| 50 | $0.55344 | $27.67200 |
| 100 | $0.48898 | $48.89800 |
| 300 | $0.46725 | $140.17500 |
| 500 | $0.44649 | $223.24500 |
| 1000 | $0.42457 | $424.57000 |
