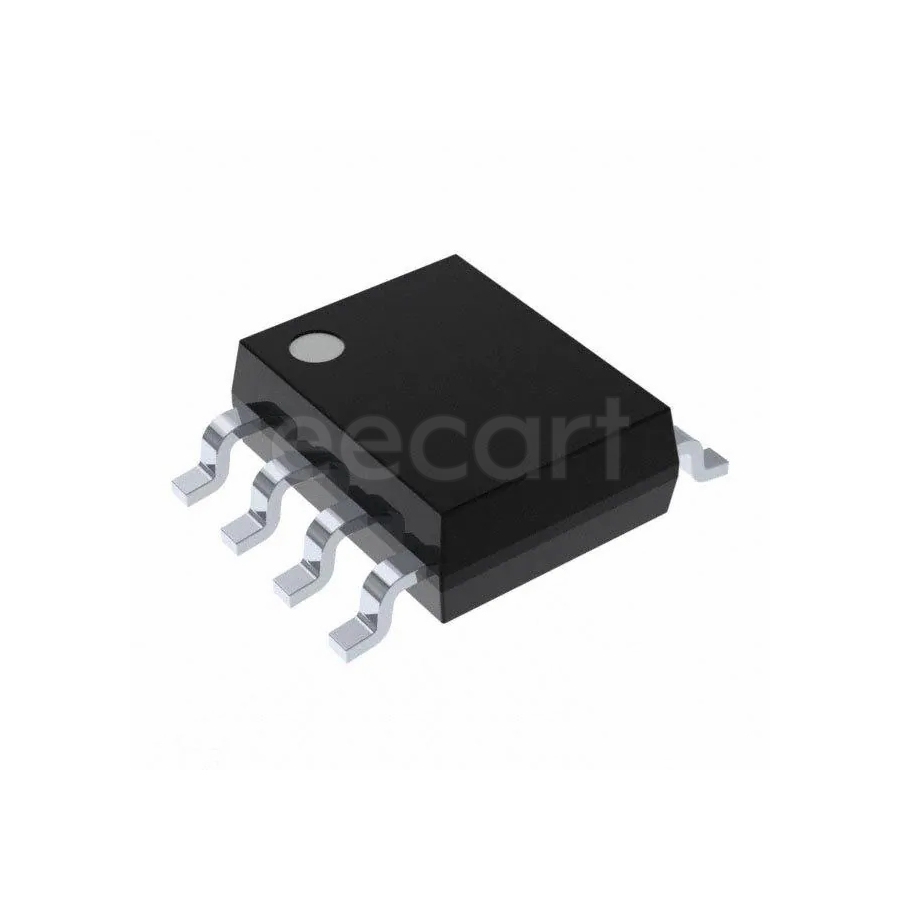

TL061CDT
Manufacturer:
STMicroelectronics
Mfr.Part #:
TL061CDT
Datasheet:
Description:
Amplifiers - Op Amps, Buffer, Instrumentation SO-8 SMD/SMT Low Power Amplifiers Number of Circuits:1
| Parameter | Value |
|---|---|
| Length | 5 mm |
| Width | 4 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 8 |
| Height | 1.25 mm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Number of Elements | 1 |
| Min Input Voltage | -12 V |
| Output Current | 20 mA |
| Number of Circuits | 1 |
| Bandwidth | 1 MHz |
| Operating Supply Voltage | 18 V |
| Max Supply Voltage | 36 V |
| Power Dissipation | 680 mW |
| Number of Channels | 1 |
| Slew Rate | 3.5 V/µs |
| Common Mode Rejection Ratio (CMRR) | 70 dB |
| Operating Supply Current | 200 µA |
| Input Bias Current | 400 pA |
| Max Input Voltage | 15 V |
| Dual Supply Voltage | 15 V |
| Nominal Supply Current | 250 µA |
| Output Current per Channel | 20 mA |
| Gain Bandwidth Product | 1 MHz |
| Input Offset Voltage (Vos) | 15 mV |
| Max Dual Supply Voltage | 18 V |
| Min Dual Supply Voltage | 3 V |
| Voltage Gain | 75.56 dB |
| Power Supply Rejection Ratio (PSRR) | 70 dB |
| Input Voltage Noise Density | 42 nV/sqrt Hz |
| Amplifier Type | Low Power Amplifiers |
| Min Supply Voltage | 6 V |
Stock: 915
Distributors
pcbx
pcbxUnit Price$0.35587
Ext.Price$0.35587
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.35587 | $0.35587 |
| 10 | $0.33259 | $3.32590 |
| 25 | $0.31083 | $7.77075 |
| 50 | $0.29050 | $14.52500 |
| 100 | $0.26874 | $26.87400 |
| 300 | $0.24861 | $74.58300 |
| 500 | $0.22999 | $114.99500 |
| 1000 | $0.22201 | $222.01000 |
| 3000 | $0.21431 | $642.93000 |
| 5000 | $0.20688 | $1034.40000 |
