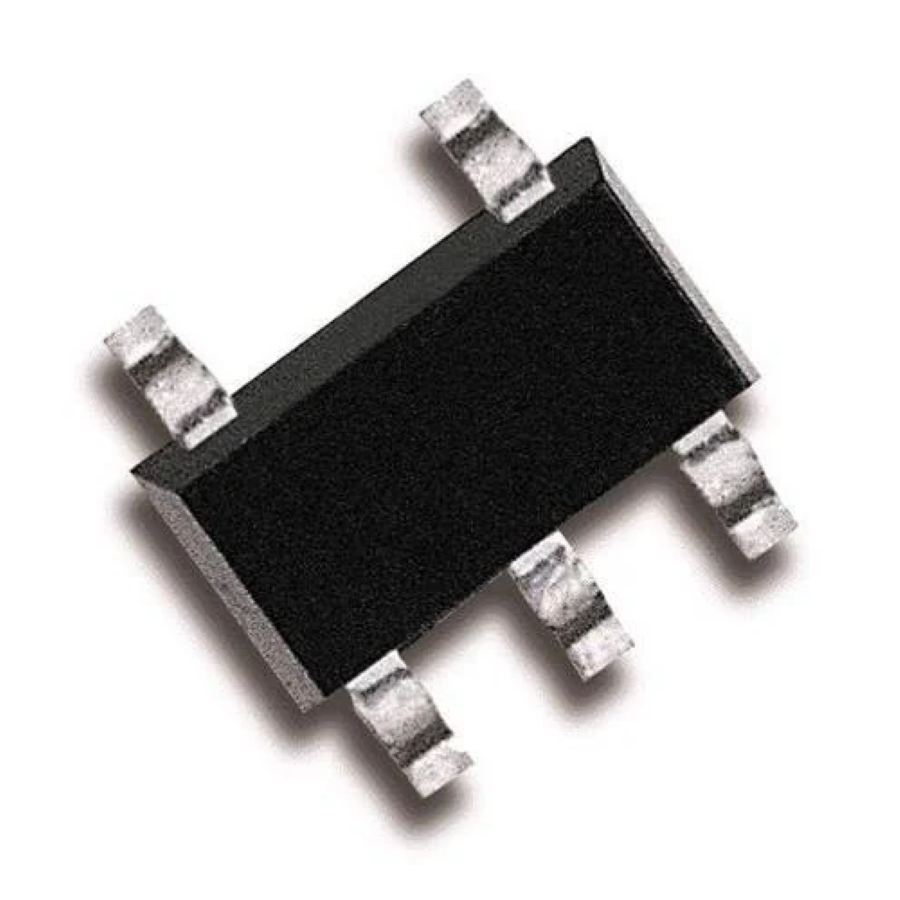

USBDF01W5
Manufacturer:
STMicroelectronics
Mfr.Part #:
USBDF01W5
Datasheet:
Description:
ESD and Circuit Protection ICs SOT-323-5 SMD/SMT Breakdown Voltage:6 V 47 pF
| Parameter | Value |
|---|---|
| Capacitance | 47 pF |
| Length | 2.2 mm |
| Width | 1.2446 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 5 |
| Height | 1.0922 mm |
| Packaging | Reel |
| Depth | 2.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Unidirectional |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Frequency | 1 GHz |
| DC Resistance (DCR) | 33 Ω |
| Bandwidth | 80 MHz |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Number of Channels | 2 |
| Number of Lines | 2 |
| Breakdown Voltage | 6 V |
| Min Breakdown Voltage | 6.1 V |
| ESD Protection | Yes |
| Attenuation Value | -25 dB |
| Voltage ESD Contact | 15 kV |
| Voltage ESD Air Gap | 25 kV |
| Diode Capacitance | 47 pF |
Stock: 850
Distributors
pcbx
pcbxUnit Price$0.20602
Ext.Price$0.20602
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.20602 | $0.20602 |
| 10 | $0.18250 | $1.82500 |
| 50 | $0.16166 | $8.08300 |
| 100 | $0.13933 | $13.93300 |
| 500 | $0.12009 | $60.04500 |
