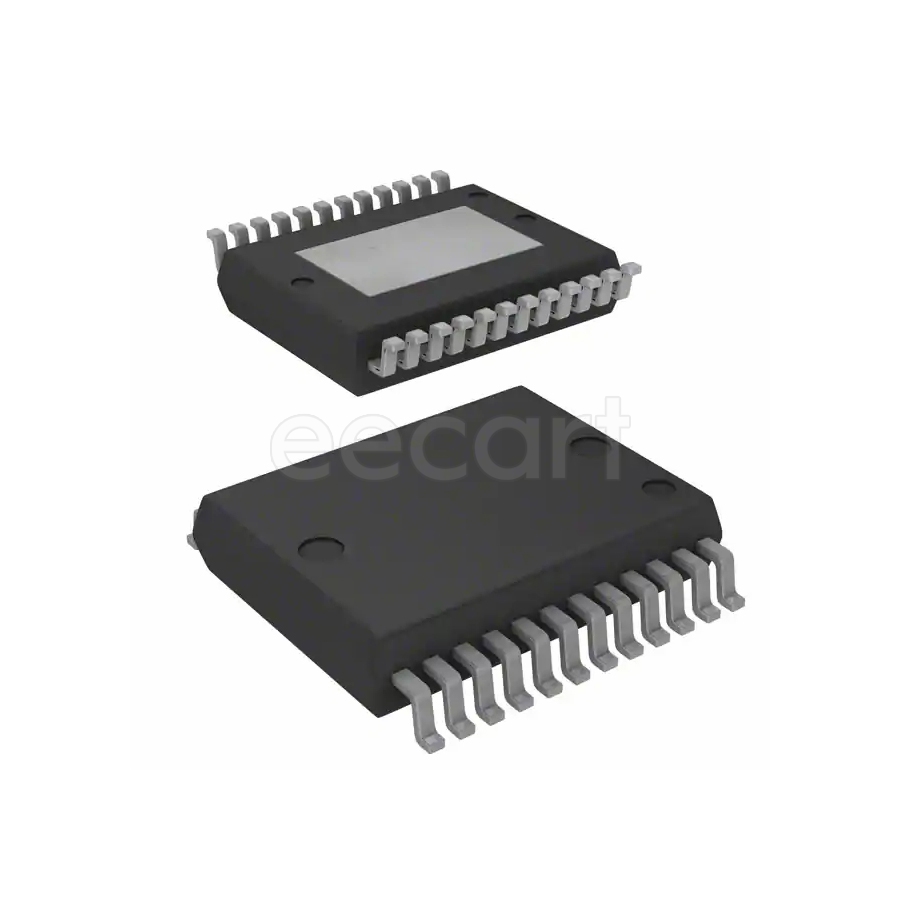

VNQ5160K-E
Manufacturer:
STMicroelectronics
Mfr.Part #:
VNQ5160K-E
Datasheet:
Description:
Power Switch ICs - Power Distribution PowerSSO-24 SMD/SMT Turn-On Delay Time:15 µs Turn-Off Delay Time:15 µs 160 mΩ
| Parameter | Value |
|---|---|
| Length | 10.5 mm |
| Width | 7.6 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 24 |
| Resistance | 160 mΩ |
| Height | 2.4 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Type | High Side |
| Interface | On/Off |
| Output Current | 5 A |
| Operating Supply Voltage | 13 V |
| Output Type | N-Channel |
| Lifecycle Status | Production (Last Updated: 2 months ago) |
| Max Supply Voltage | 36 V |
| Min Supply Voltage | 4.5 V |
| Max Output Current | 5.4 A |
| Number of Channels | 4 |
| Turn-On Delay Time | 15 µs |
| Turn-Off Delay Time | 15 µs |
| Max Supply Current | 2 µA |
| Number of Outputs | 4 |
| Nominal Supply Current | 2 µA |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Schedule B | 8542390000 |
| On Resistance (RON) | 160 mΩ |
| Current Limit | 5.4 A |
Stock: 83
Distributors
pcbx
pcbxUnit Price$6.40502
Ext.Price$6.40502
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.40502 | $6.40502 |
| 10 | $5.51962 | $55.19620 |
| 25 | $4.99920 | $124.98000 |
| 50 | $4.52784 | $226.39200 |
